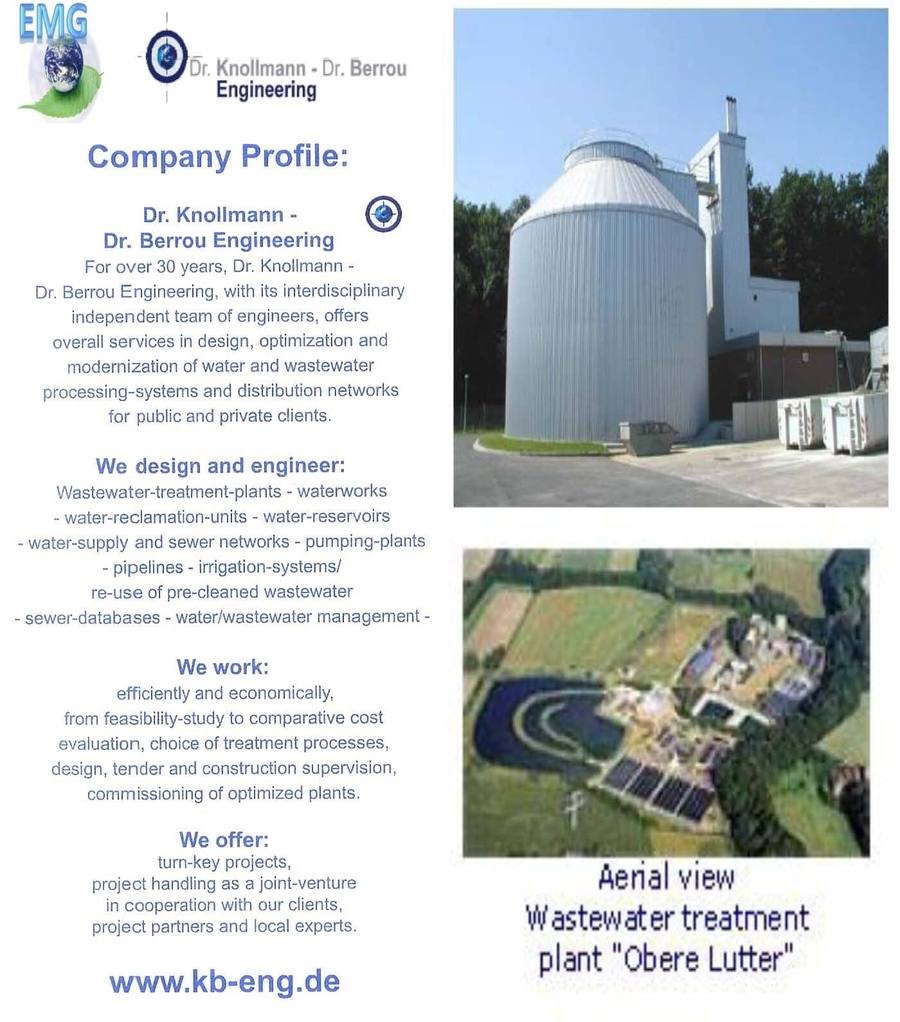

For over thirty years the practice has offered, through an interdisciplinary independent team of engineers, overall services in the design, optimisation and modernisation of water and wastewater processing systems and distribution networks for public and private clients — wastewater treatment plants, waterworks, water reclamation units, reservoirs, water supply and sewer systems, pumping plants, pipelines, irrigation systems, re-use of pre-cleaned wastewater, sewer databases and water and wastewater management. Work runs from feasibility study and comparative cost evaluation through choice of treatment process, design, tender and construction supervision to commissioning, offered as turn-key projects or handled as a joint venture with clients, project partners and local experts.
P.146

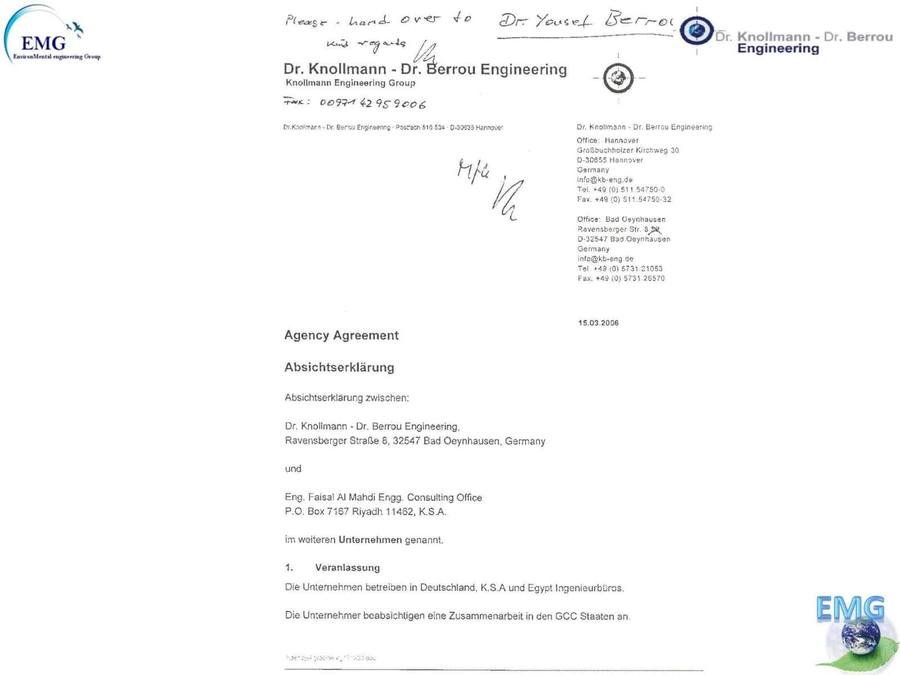

Declaration of intent between Dr. Knollmann – Dr. Berrou Engineering of Bad Oeynhausen and the consulting office of Eng. Faisal Al Mahdi in Riyadh, recording that the firms operate engineering offices in Germany, Saudi Arabia and Egypt and intend to cooperate across the GCC states.
P.147
At the Knollmann stand during a German water technology exhibition.
P.148

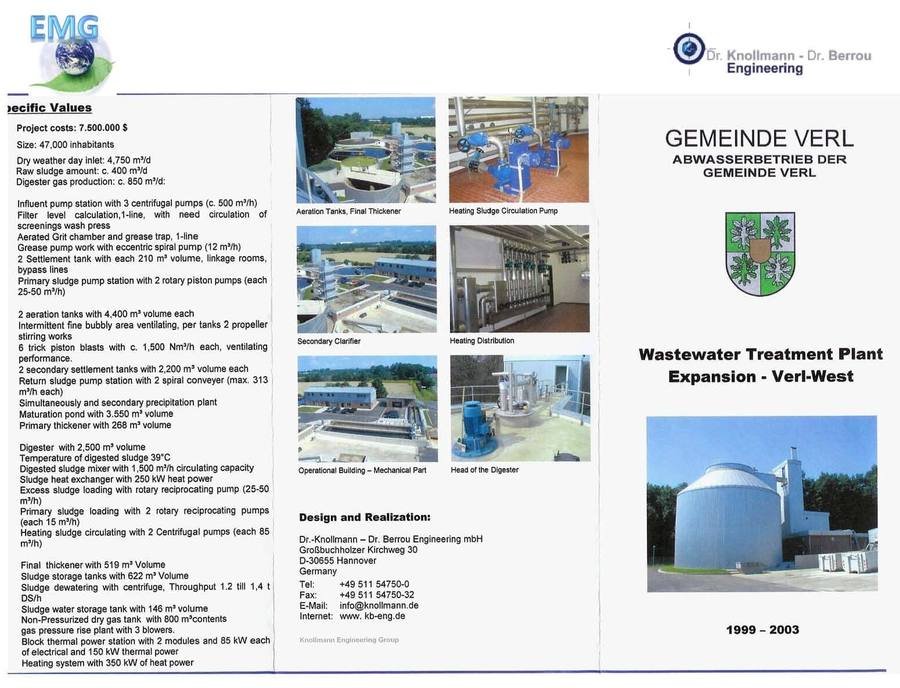

Wastewater treatment plant expansion designed and realised by Knollmann Engineering for the municipality of Verl, 1999–2003. Project cost USD 7,500,000 for 47,000 inhabitants: dry weather inlet 4,750 m³/d, raw sludge 400 m³/d and digester gas production about 850 m³/d, with a three-pump influent station, aerated grit chamber and grease trap, two settlement tanks of 210 m³ each, two aeration tanks of 4,400 m³ each with intermittent fine-bubble aeration, two secondary settlement tanks of 2,200 m³ each, a 3,550 m³ maturation pond, a 2,500 m³ digester at 39 °C and a final thickener of 519 m³.
P.149

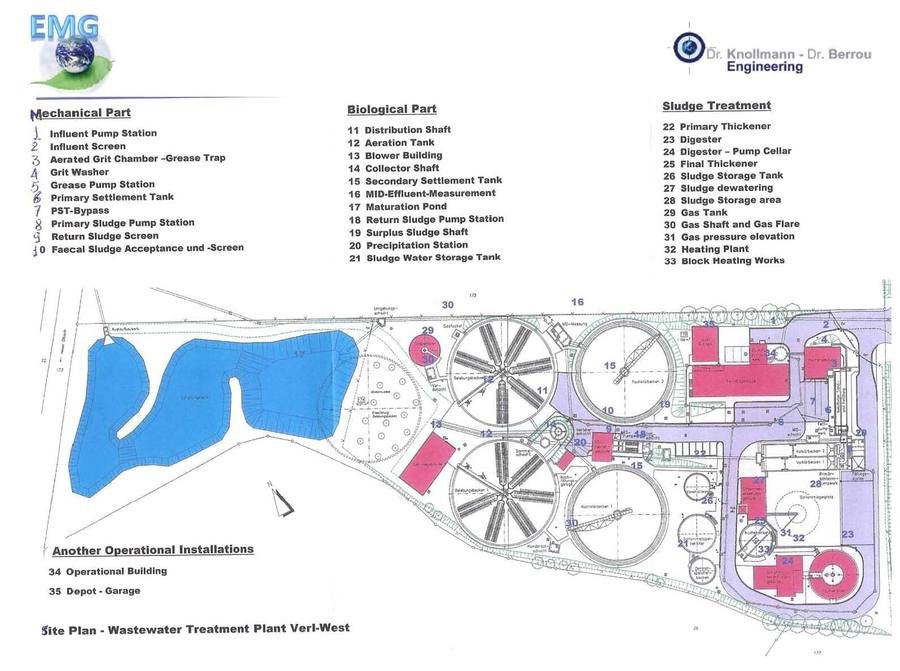

Site plan keyed to the mechanical part (influent pump station and screen, aerated grit chamber and grease trap, grit washer, primary settlement and sludge pumping), the biological part (distribution shaft, aeration tank, blower building, collector shaft, secondary settlement, mid-effluent measurement, maturation pond, return sludge pumping, precipitation station) and sludge treatment (thickeners, digester and pump cellar, dewatering, gas tank, gas shaft and flare, heating plant and block heating works).
P.150

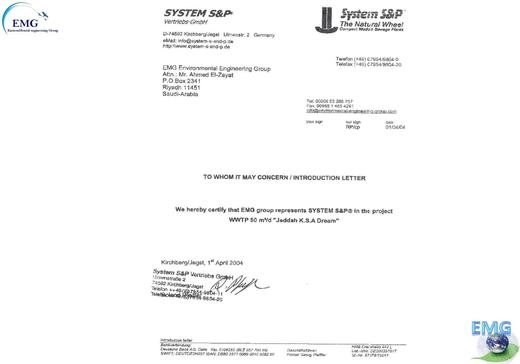

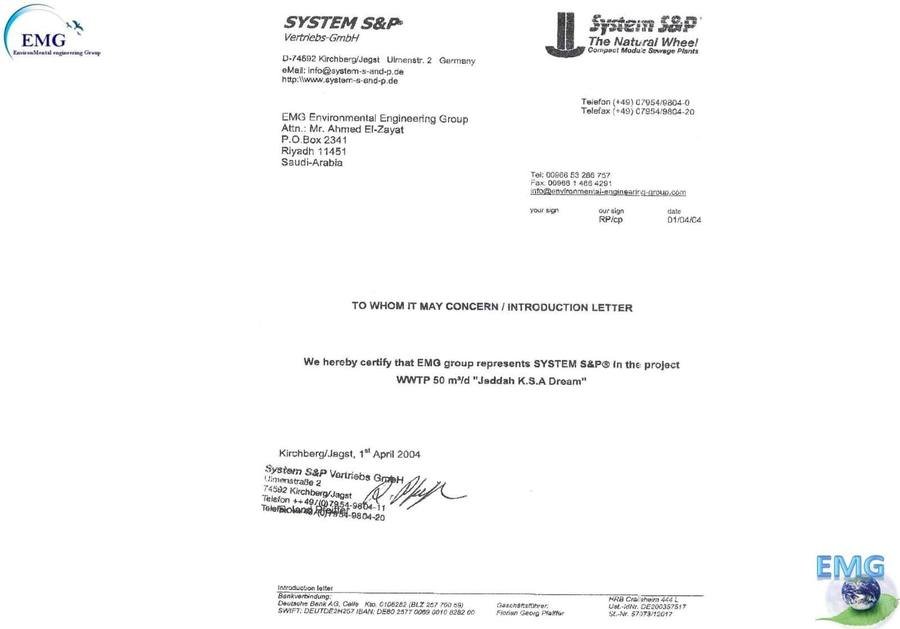

System S&P Vertriebs-GmbH of Kirchberg/Jagst certified that EMG Group represents System S&P in the project WWTP 50 m³/d "Jeddah K.S.A Dream", addressed to Dr. Ahmed El-Zayat in Riyadh, 1 April 2004.
P.151
With the System S&P team at the company's exhibition stand, May 2014.
P.152

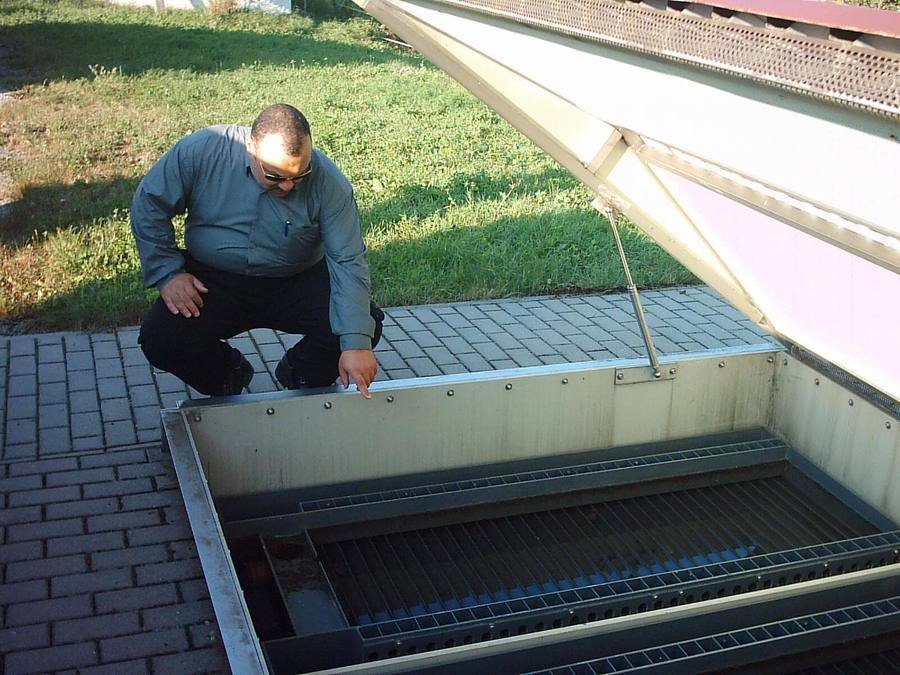

Inspecting the internals of a packaged treatment unit in Germany.
P.153

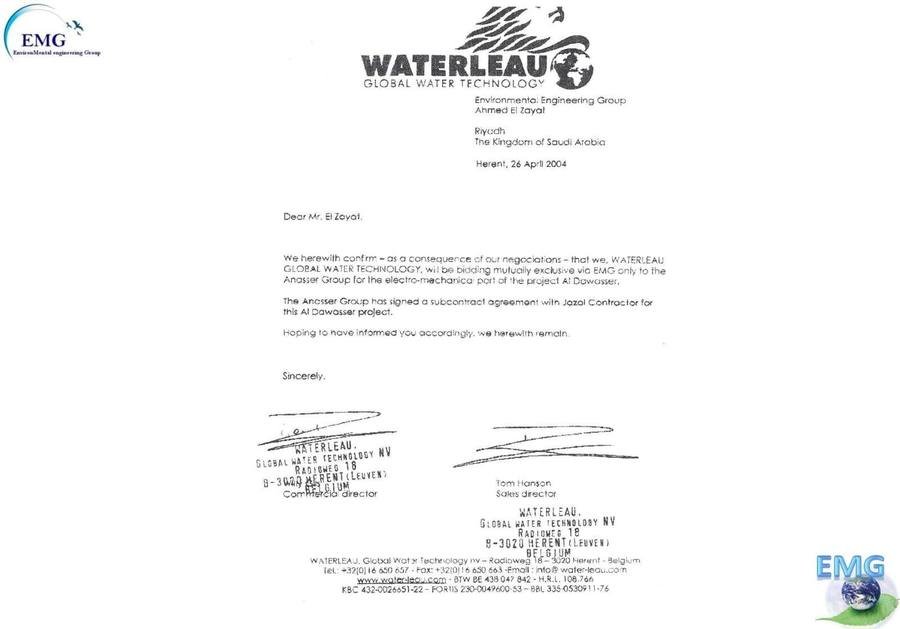

Waterleau Global Water Technology NV of Herent, Belgium confirmed to Dr. Ahmed El-Zayat in Riyadh that it would bid mutually exclusively via EMG to the Anasser Group for the electro-mechanical part of the Al Dawasser project, the Anasser Group having signed a subcontract agreement with Jazal Contractor. Dated 26 April 2004.
P.154

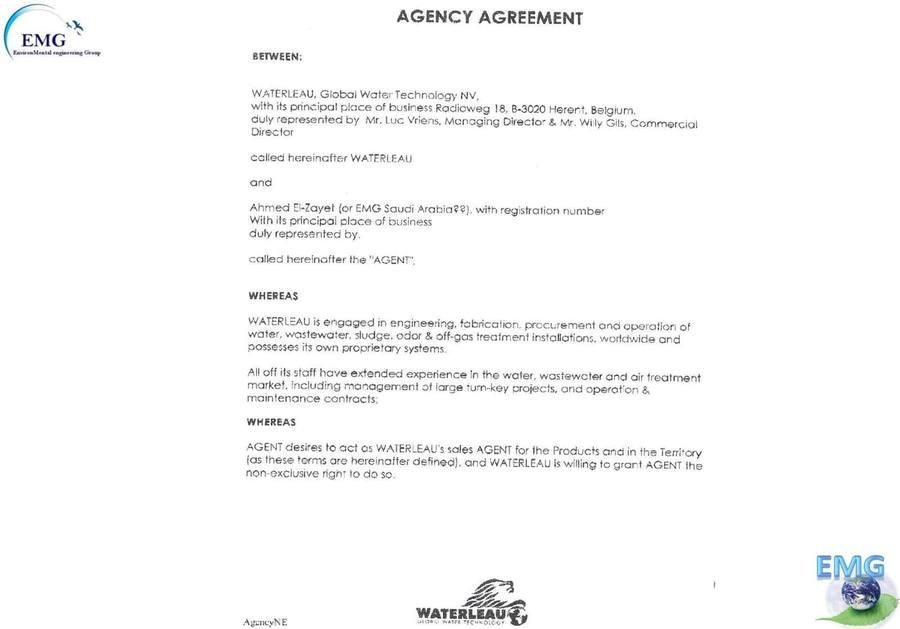

Agency agreement between Waterleau Global Water Technology NV of Herent, Belgium and Ahmed El-Zayat for EMG Saudi Arabia. Waterleau is engaged in engineering, fabrication, procurement and operation of water, wastewater, sludge, odour and off-gas treatment installations worldwide with its own proprietary systems, and its staff hold extended experience in the water, wastewater and air treatment market including management of large turn-key projects and operation and maintenance contracts.
P.155

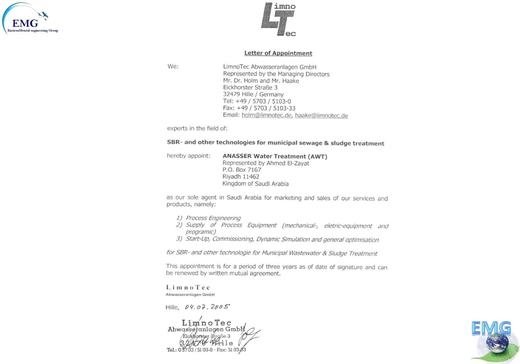

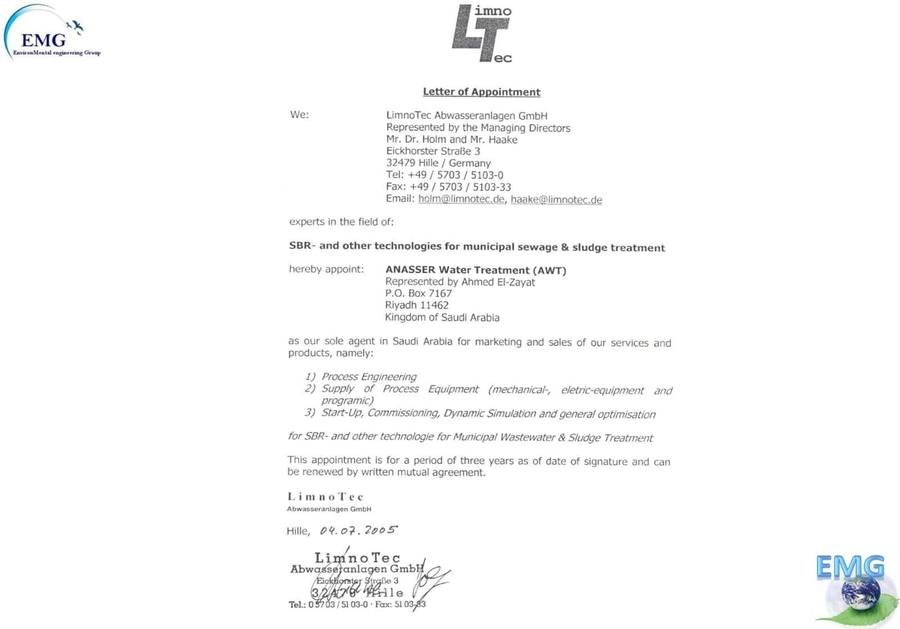

LimnoTec Abwasseranlagen GmbH of Hille, Germany — experts in SBR and other technologies for municipal sewage and sludge treatment — appointed Anasser Water Treatment, represented by Ahmed El-Zayat in Riyadh, as sole agent in Saudi Arabia for marketing and sales of process engineering, supply of process equipment (mechanical, electrical and programme) and start-up, commissioning, dynamic simulation and general optimisation. Signed 4 July 2005 for a renewable three-year term.
P.156

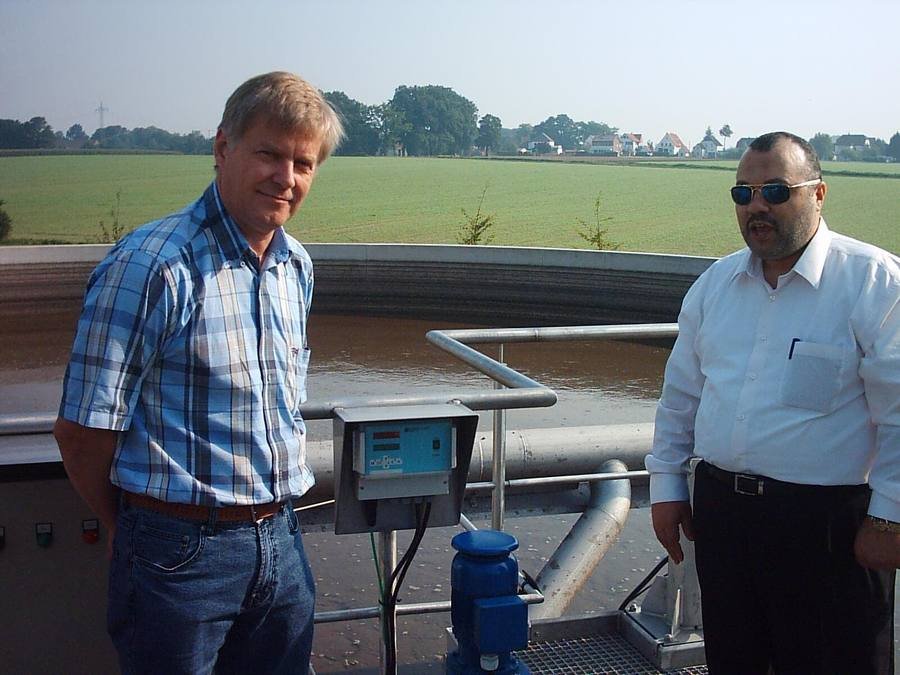

On the deck of an SBR basin with the LimnoTec team in Germany.
P.157
The German-Saudi Arabian Liaison Office for Economic Affairs invited Dr. Ahmed El-Zayat to ACHEMA 2006 in Frankfurt, the international exhibition-congress on chemical engineering, environmental protection and biotechnology, with more than 4,000 exhibitors from 50 countries and an expected 200,000 visitors from 100 countries.
P.158

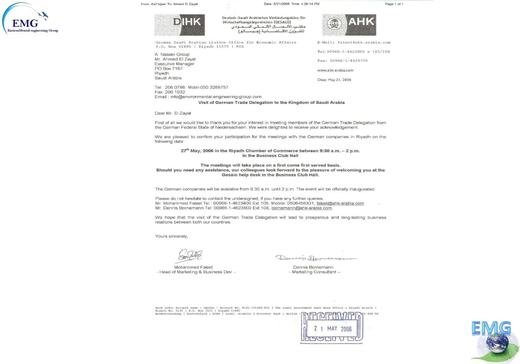

Confirmation of participation in meetings with German companies at the Riyadh Chamber of Commerce on 27 May 2006, arranged with the German Trade Delegation from the German Federal State of Niedersachsen.
P.162

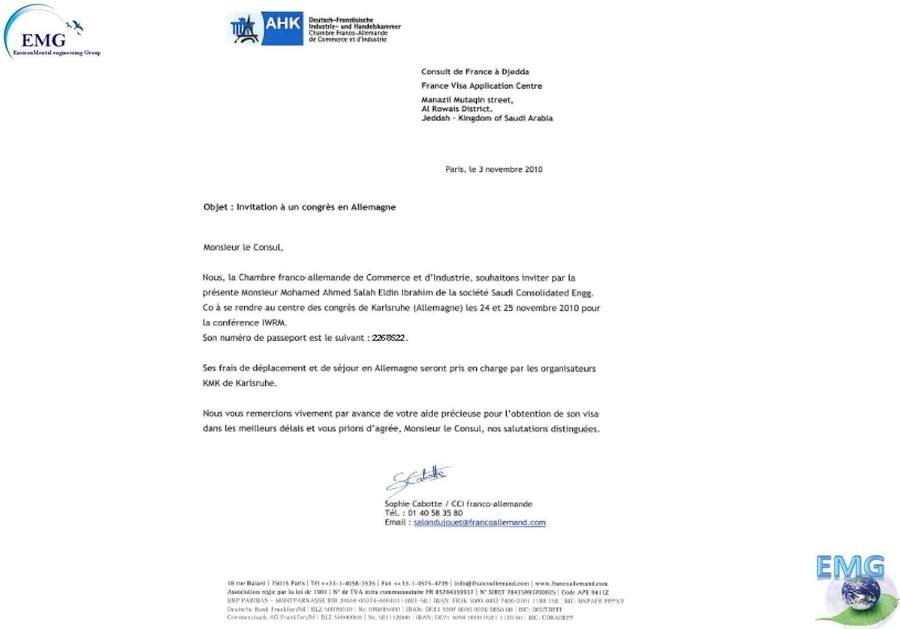

The Franco-German Chamber of Commerce and Industry wrote to the French Consulate in Jeddah supporting travel to the IWRM conference at the Karlsruhe congress centre on 24 and 25 November 2010, with travel and accommodation costs borne by the organisers, KWK Karlsruhe.
P.163
Invitation to a reception at the German Ambassador's residence on 19 June 2006 celebrating the 2006 FIFA World Cup, extended jointly with the German-Saudi Arabian Liaison Office for Economic Affairs under the "Land of Ideas" campaign.
Front-end engineering, hydraulic modelling, physical and CFD modelling, value engineering and capacity assessment for the Kingdom's water authorities and their contractors.
P.002

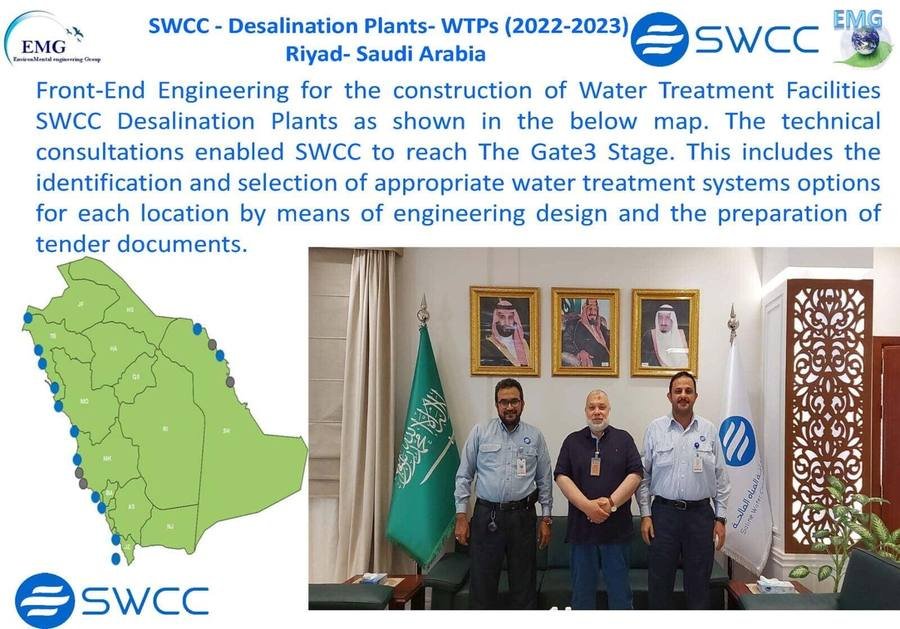

Front-end engineering for the construction of water treatment facilities at SWCC desalination plants. The technical consultations enabled SWCC to reach the Gate 3 stage, including identification and selection of appropriate water treatment system options for each location through engineering design and preparation of tender documents.
P.003

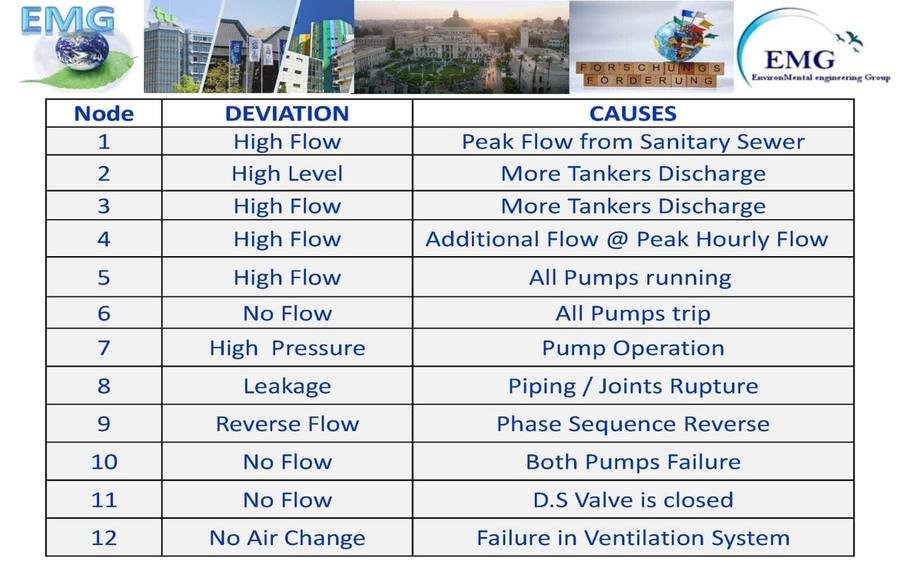

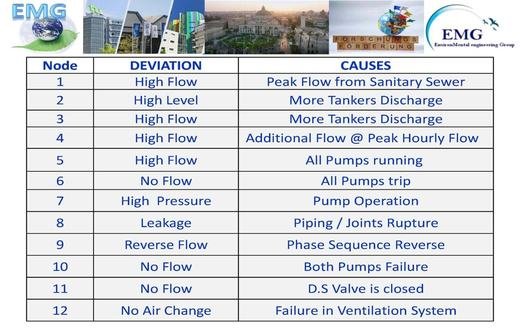

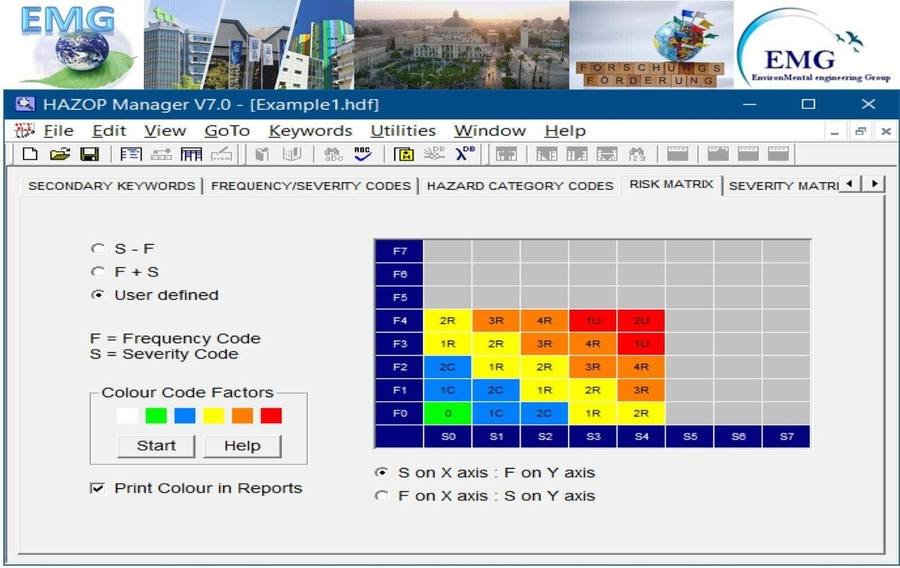

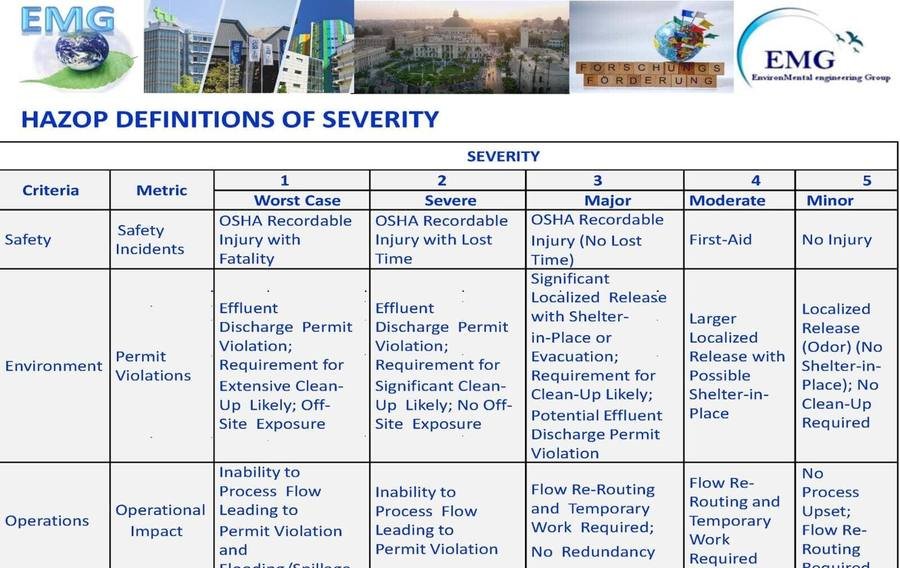

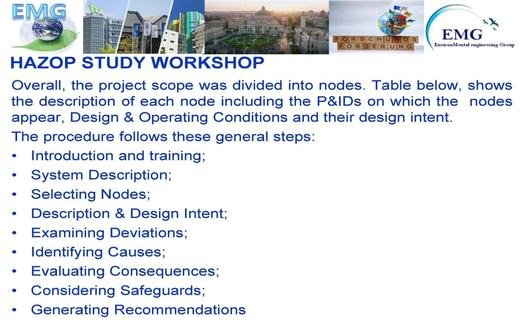

Hazard and operability analysis used to identify potential hazards and operability problems that may lead to non-conforming products, followed by an updated analysis (HAZOP v2) during the Execute stage. A HAZOP review is also conducted where a facility is subject to process modification during its lifecycle.
P.004
Workshop delivery to a client engineering team.
P.011

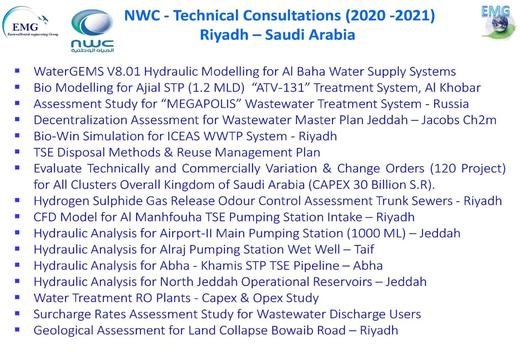

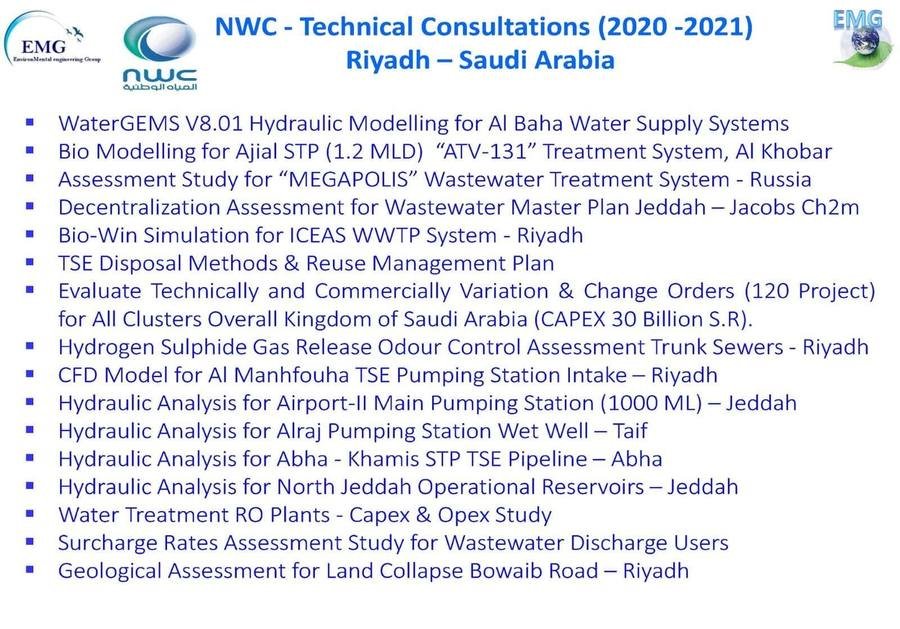

A programme of technical consultations for the National Water Company covering WaterGEMS V8.01 hydraulic modelling for Al Baha water supply; bio-modelling of Ajial STP (1.2 MLD, ATV-131) at Al Khobar; assessment of the MEGAPOLIS wastewater system in Russia; decentralisation assessment for the Jeddah wastewater master plan; BioWin simulation for the ICEAS WWTP in Riyadh; TSE disposal and reuse management; technical and commercial evaluation of variations and change orders across 120 projects kingdom-wide (CAPEX SAR 30 billion); hydrogen sulphide odour control on trunk sewers; a CFD model for the Al Manhfouha TSE pumping station intake; hydraulic analyses at Airport-II Jeddah (1,000 ML), Alraj Taif, Abha–Khamis and North Jeddah; RO plant CAPEX and OPEX study; wastewater discharge surcharge rates; and geological assessment for land collapse on Bowaib Road.
P.012
The consultation programme team.
P.013

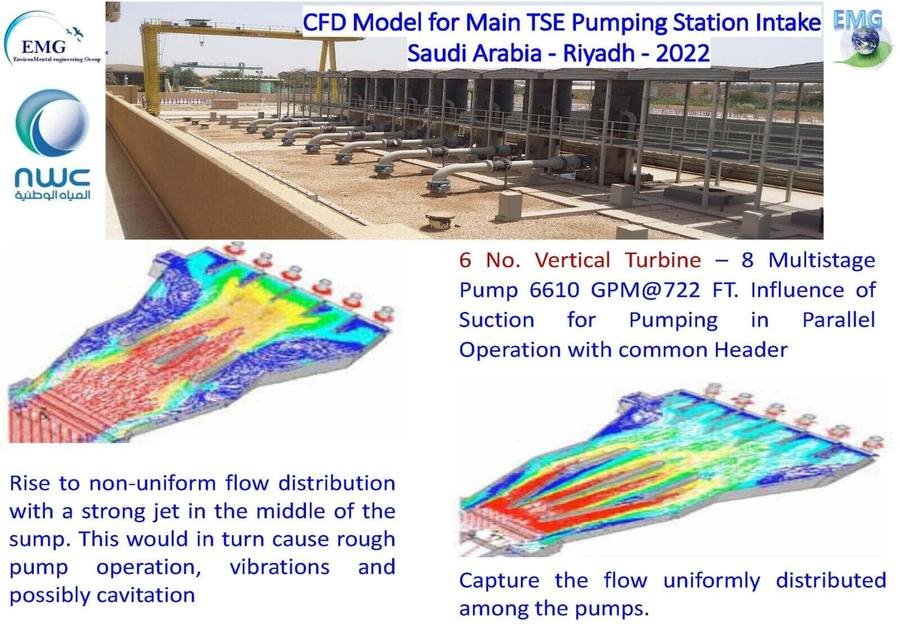

Computational fluid dynamics study of a sump serving six vertical turbine pumps (8-stage, 6,610 GPM at 722 ft), examining the influence of suction for pumping in parallel operation on a common header. The original arrangement gave a non-uniform flow distribution with a strong jet through the middle of the sump — a condition that would cause rough pump operation, vibration and possible cavitation. The revised arrangement captures the flow uniformly distributed among the pumps.
P.014

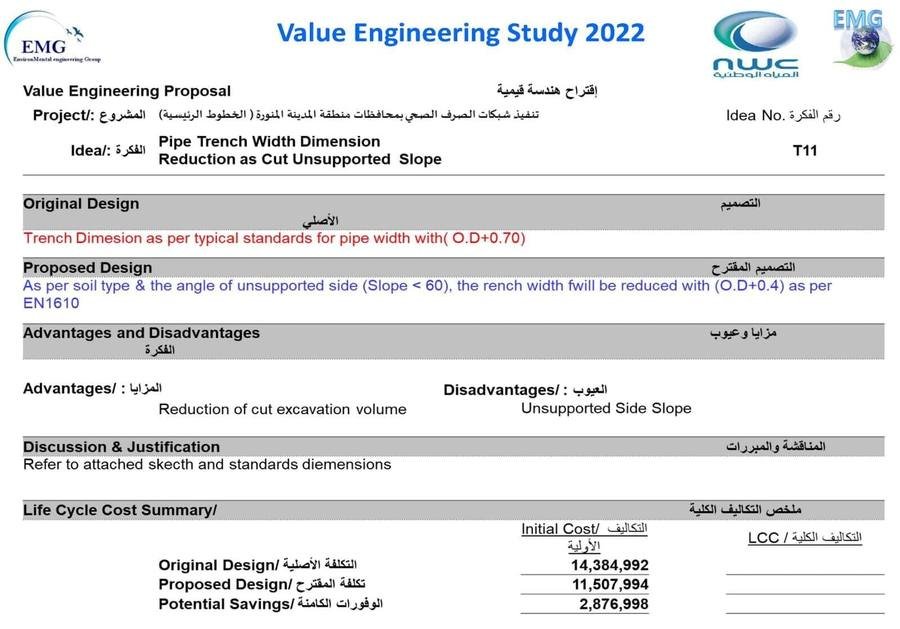

Proposal T11 on the Madinah region sewer networks: rather than sizing the pipe trench to the typical standard (O.D + 0.70), the width is set from soil type and the angle of the unsupported side (slope < 60) to O.D + 0.40 per EN 1610. Life-cycle cost falls from SAR 14,384,992 to SAR 11,507,994 — a potential saving of SAR 2,876,998 — against the disadvantage of an unsupported side slope.
P.015

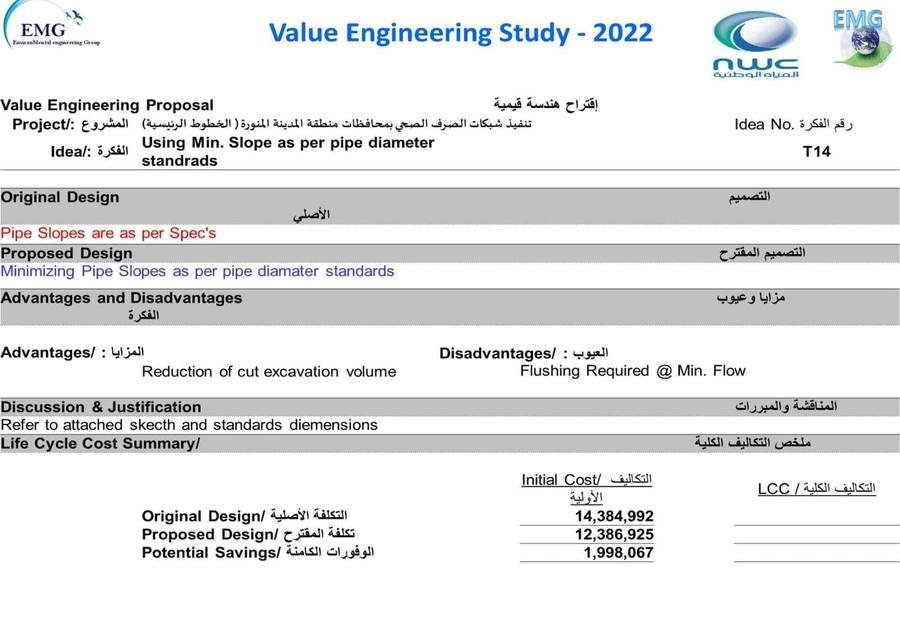

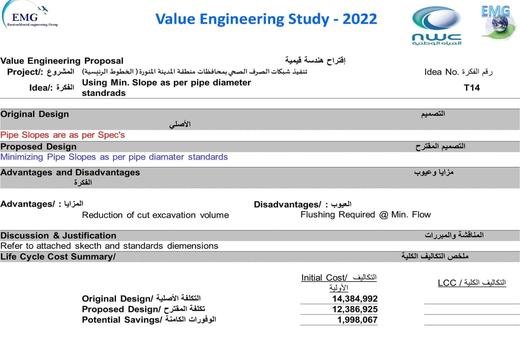

Proposal T14: minimise pipe slopes to the per-diameter standard instead of holding slopes as specified. Initial cost falls from SAR 14,384,992 to SAR 12,386,925, a potential saving of SAR 1,998,067, with flushing required at minimum flow as the trade-off.
P.016

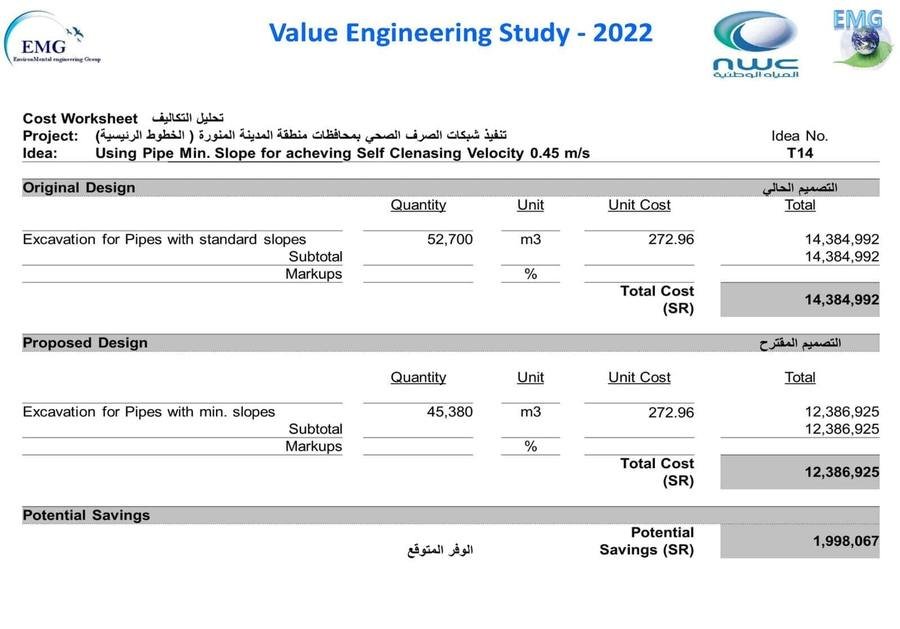

The supporting quantities behind proposal T14: excavation for pipes at standard slopes, 52,700 m³ at SAR 272.96, against 45,380 m³ for minimum slopes achieving a self-cleansing velocity of 0.45 m/s.
P.017

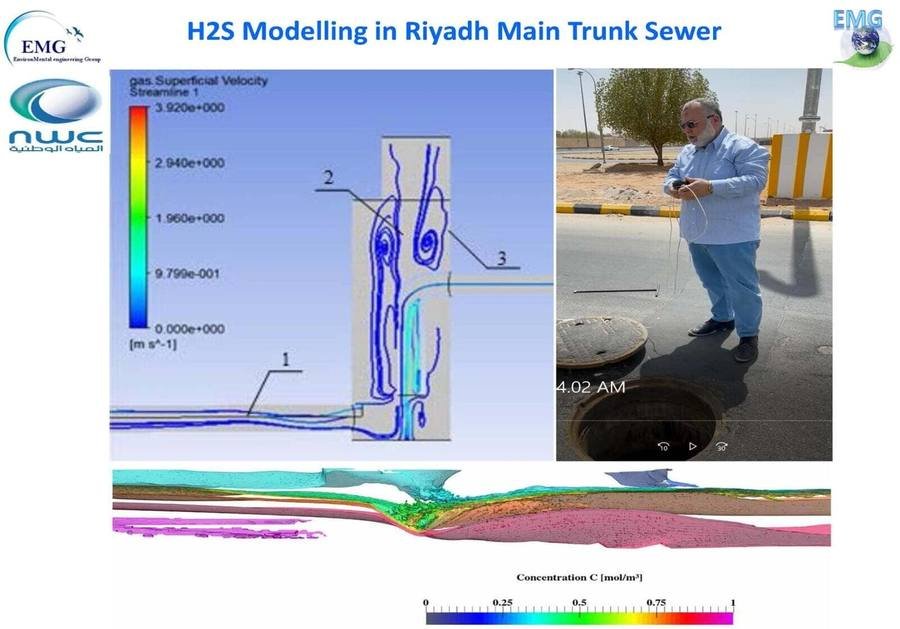

Hydrogen sulphide release modelled through the trunk sewer, pairing a gas superficial-velocity streamline model of the drop structure with field gas measurement at the manhole, and a concentration field along the sewer.
P.018

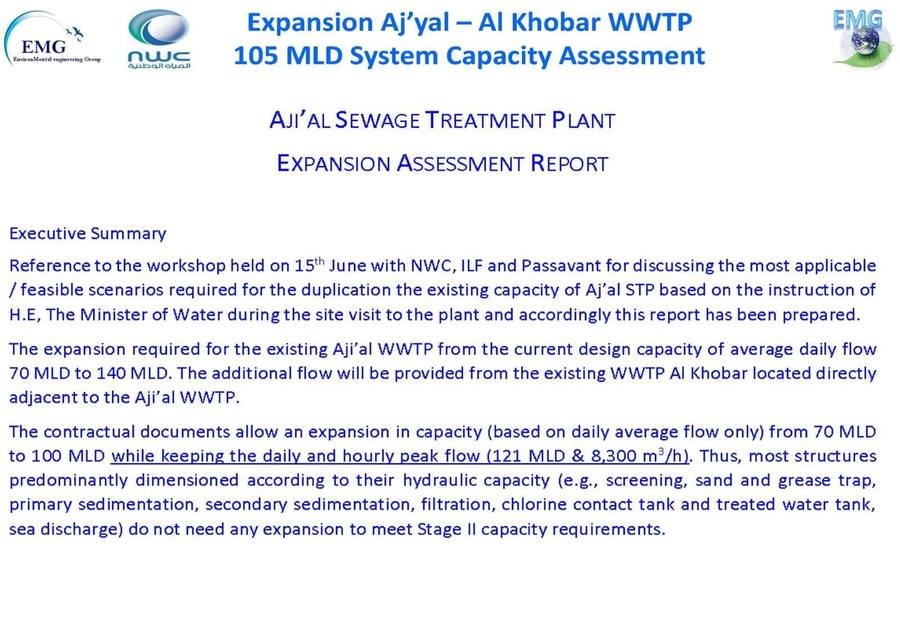

Following a workshop held on 15 June with NWC, ILF and Passavant on the most feasible scenarios for duplicating the capacity of Aj'al STP — instructed by the Minister of Water during a site visit — this report assessed expansion from an average daily flow of 70 MLD to 140 MLD, with the additional flow provided from the existing Al Khobar WWTP adjacent to the site. Contractual documents allowed expansion from 70 to 100 MLD on daily average flow while holding daily and hourly peak flow at 121 MLD and 8,300 m³/h, so most structures dimensioned on hydraulic capacity required no expansion to meet Stage II.
P.019

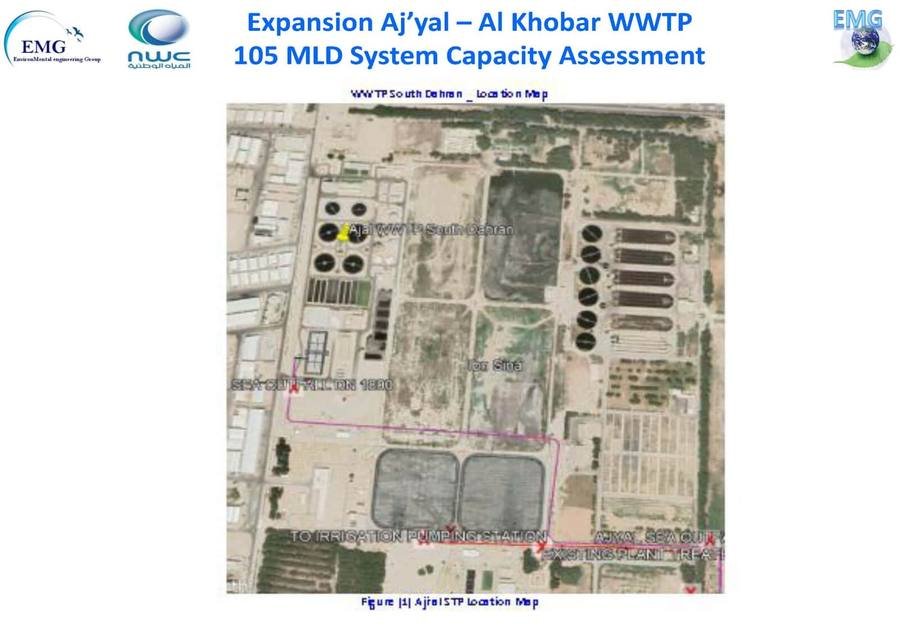

Site location plan showing the WWTP at South Dhahran, the irrigation pumping station and the sea outfall.
P.020

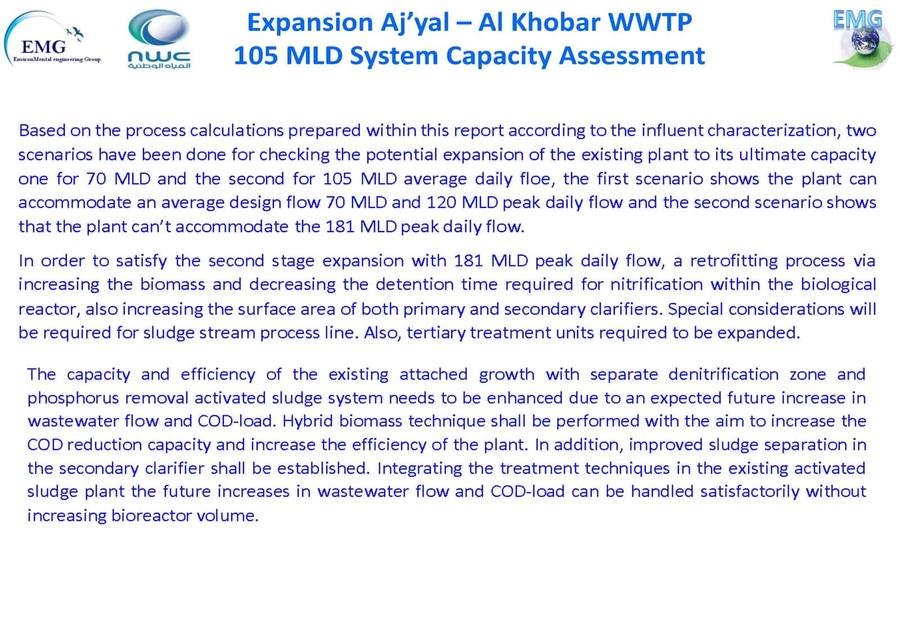

Process calculations tested the existing plant against two scenarios. At 70 MLD average daily flow the plant accommodates 120 MLD peak daily flow; at 105 MLD it cannot accommodate 181 MLD peak. Meeting the second stage requires retrofitting — increasing biomass and reducing detention time for nitrification in the biological reactor, increasing the surface area of both primary and secondary clarifiers, and expanding tertiary treatment. A hybrid biomass technique raises COD reduction capacity so future increases in flow and COD load can be handled without increasing bioreactor volume.
P.021

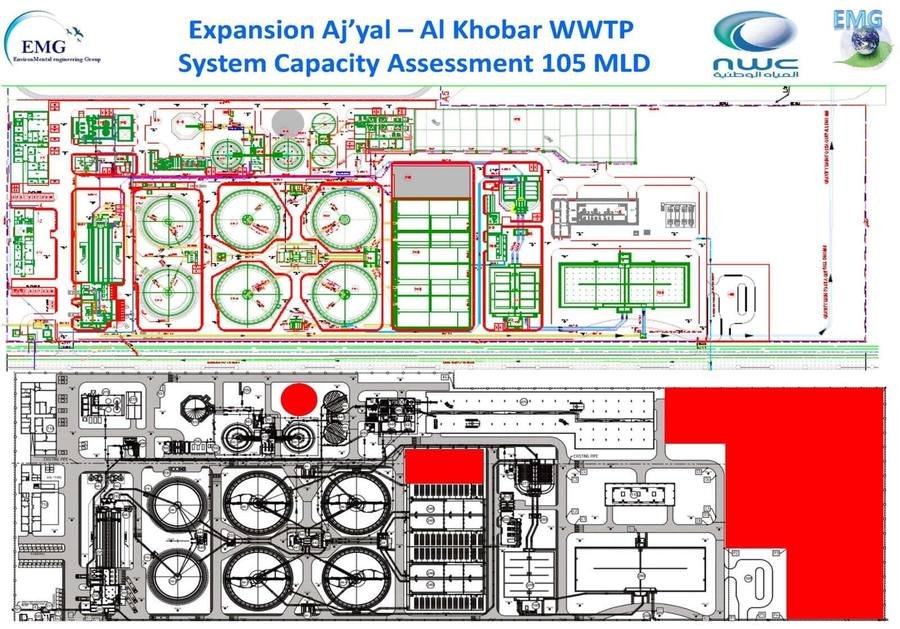

Plant general arrangement drawing marked up with the units affected by the capacity assessment.
P.022

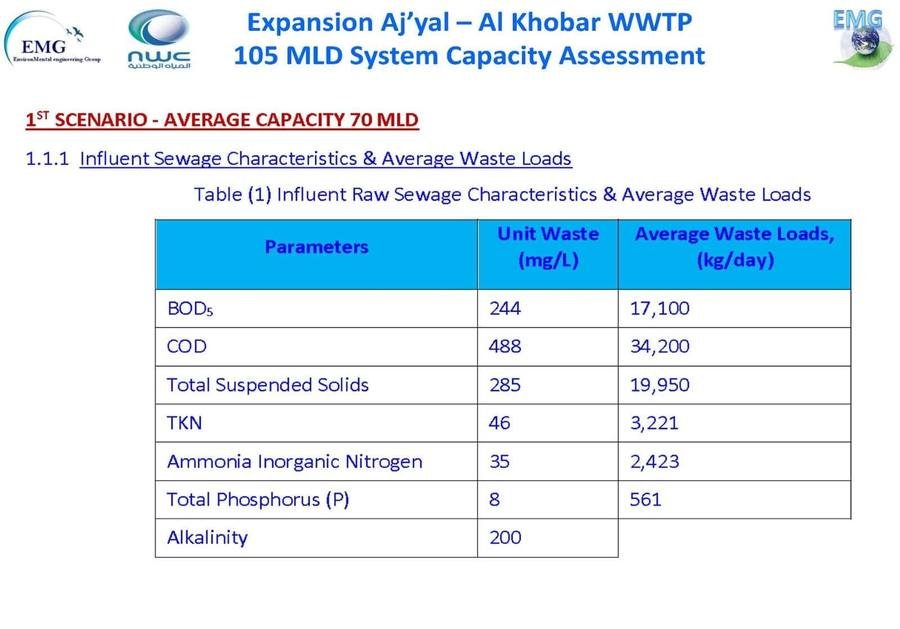

Influent raw sewage characteristics and average waste loads: BOD₅ 244 mg/L (17,100 kg/day), COD 488 mg/L (34,200 kg/day), total suspended solids 285 mg/L (19,950 kg/day), TKN 46 mg/L (3,221 kg/day), ammonia inorganic nitrogen 35 mg/L (2,423 kg/day), total phosphorus 8 mg/L (561 kg/day) and alkalinity 200 mg/L.
P.023

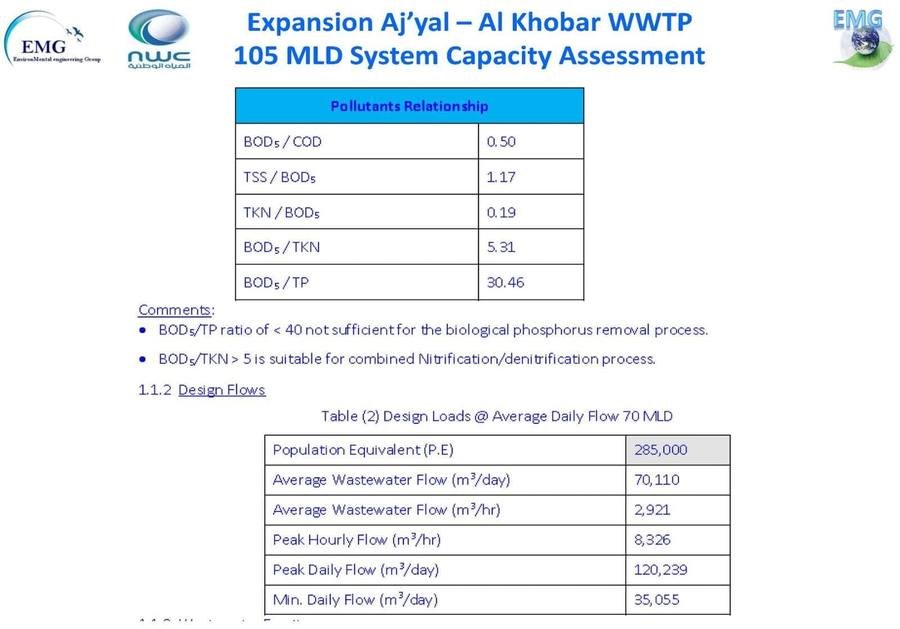

Pollutant relationships gave BOD₅/COD 0.50, TSS/BOD₅ 1.17, TKN/BOD₅ 0.19, BOD₅/TKN 5.31 and BOD₅/TP 30.46 — a BOD₅/TP ratio below 40, insufficient for biological phosphorus removal, while BOD₅/TKN above 5 suits combined nitrification and denitrification. Design loads at 70 MLD average daily flow: 285,000 population equivalent, 70,110 m³/day average, 8,326 m³/h peak hourly and 120,239 m³/day peak daily.
P.024

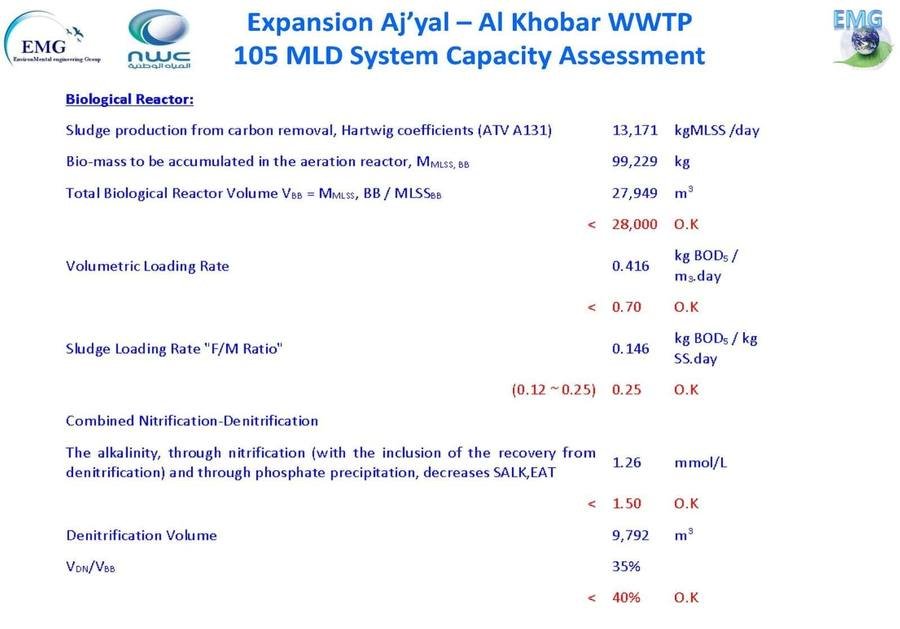

Reactor sizing verified against ATV-A131 Hartwig coefficients: sludge production from carbon removal 13,171 kg MLSS/day, biomass accumulated 99,229 kg, total reactor volume 27,949 m³ (against 28,000 available), volumetric loading rate 0.416 kg BOD₅/m³·day, sludge loading F/M ratio 0.146, denitrification volume 9,792 m³ at V_DN/V_BB of 35 per cent — each within limit.
P.025

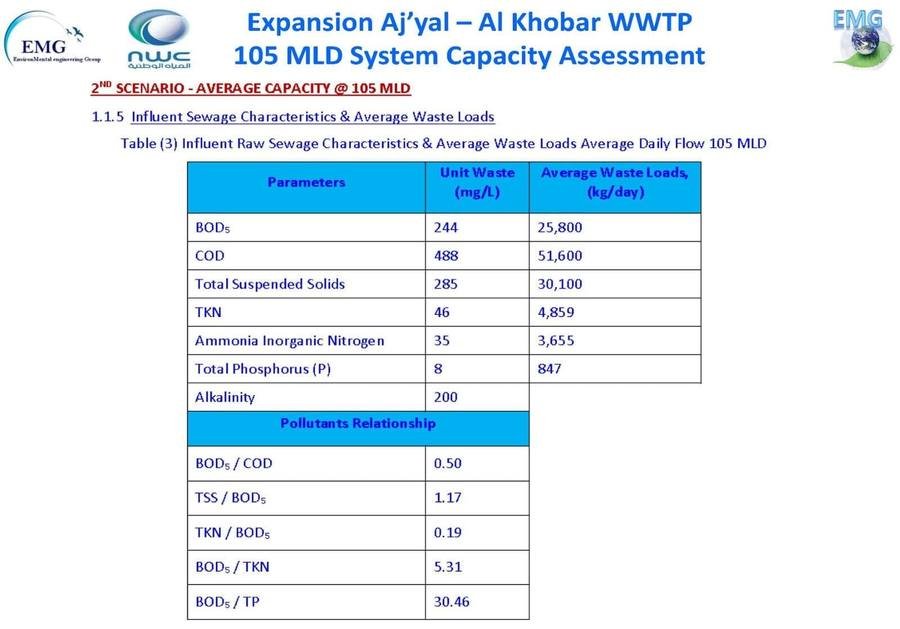

Influent characterisation repeated for the 105 MLD case: BOD₅ 25,800 kg/day, COD 51,600 kg/day, suspended solids 30,100 kg/day, TKN 4,859 kg/day and total phosphorus 847 kg/day.
P.026

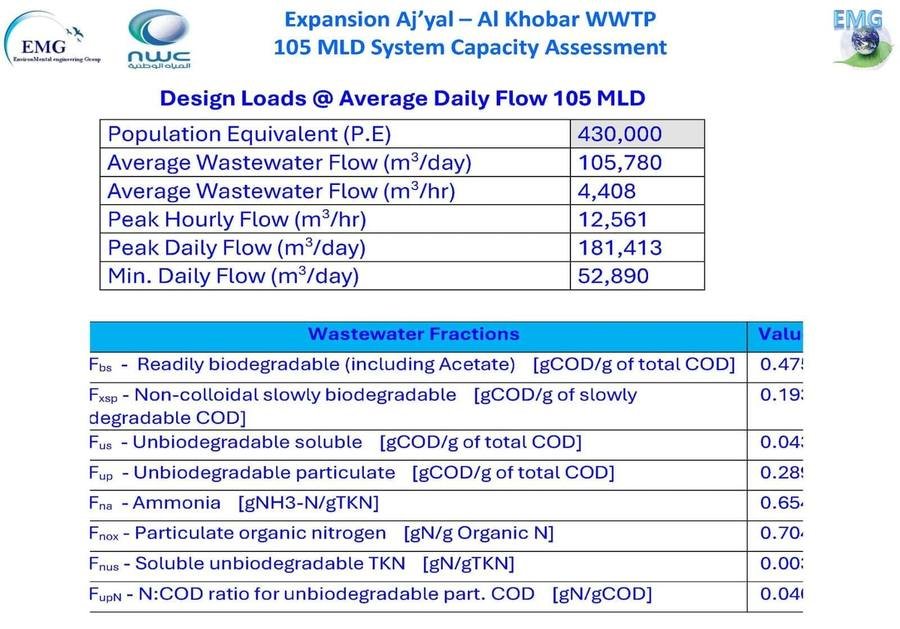

At 105 MLD: 430,000 population equivalent, 105,780 m³/day average, 12,561 m³/h peak hourly and 181,413 m³/day peak daily flow. COD is fractionated into readily biodegradable, non-colloidal slowly biodegradable, unbiodegradable soluble and unbiodegradable particulate components for the model.
P.027

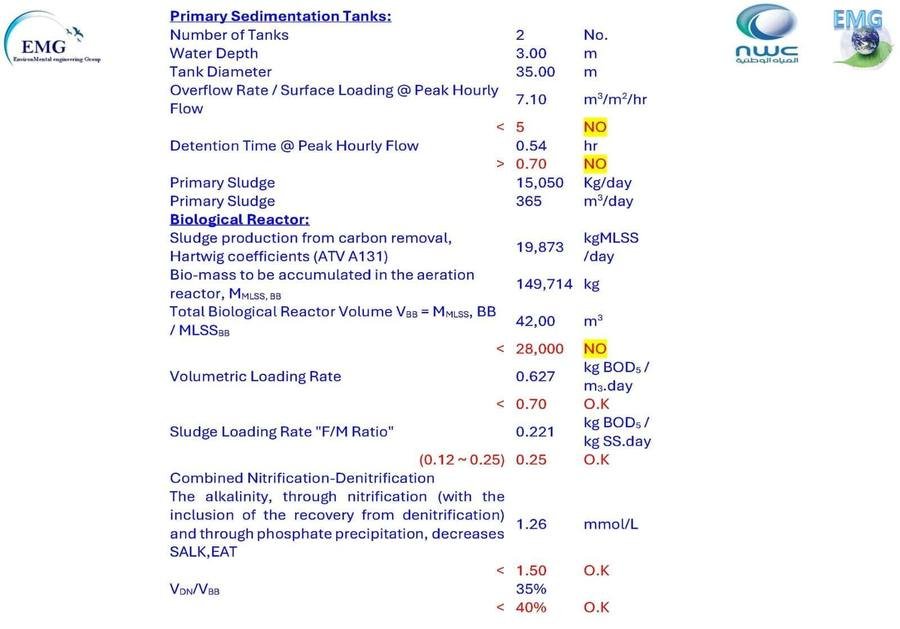

Checks flagged the constraints: primary sedimentation overflow rate 7.10 m³/m²/h against a limit of 5, detention time 0.54 h against 0.70, and a required biological reactor volume of 42,000 m³ against the 28,000 m³ available.
P.028

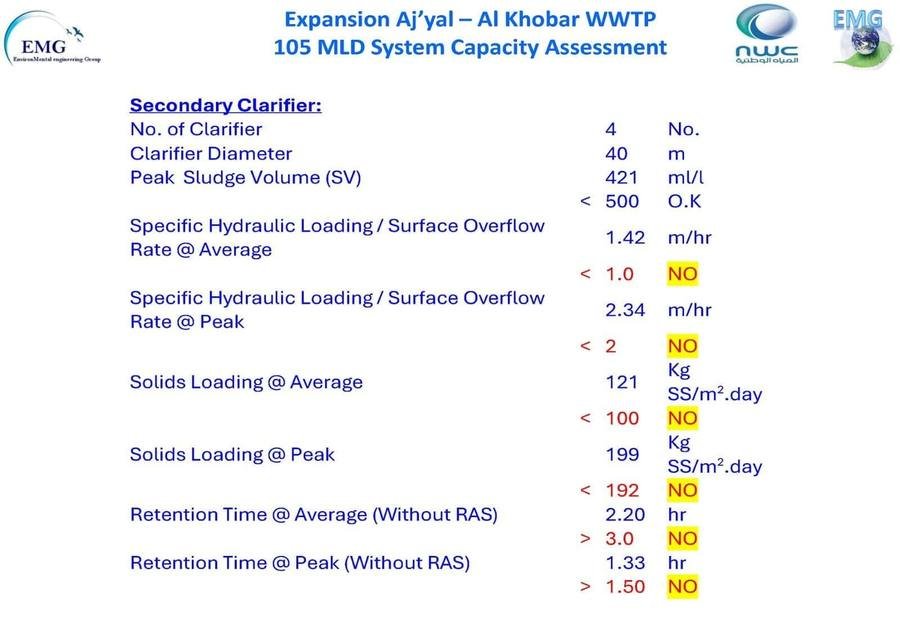

Four 40 m clarifiers: surface overflow rate 1.42 m/h at average and 2.34 m/h at peak against limits of 1.0 and 2.0; solids loading 121 and 199 kg SS/m²·day against 100 and 192; retention time 2.20 h and 1.33 h against 3.0 and 1.50. Peak sludge volume of 421 ml/l was within limit.
P.029

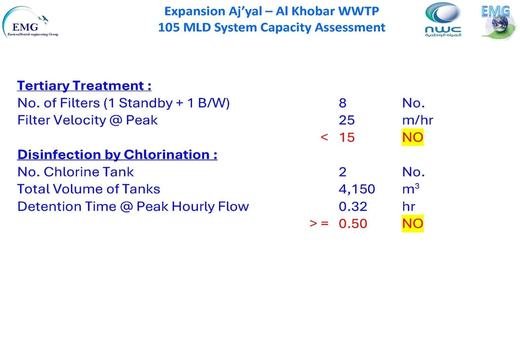

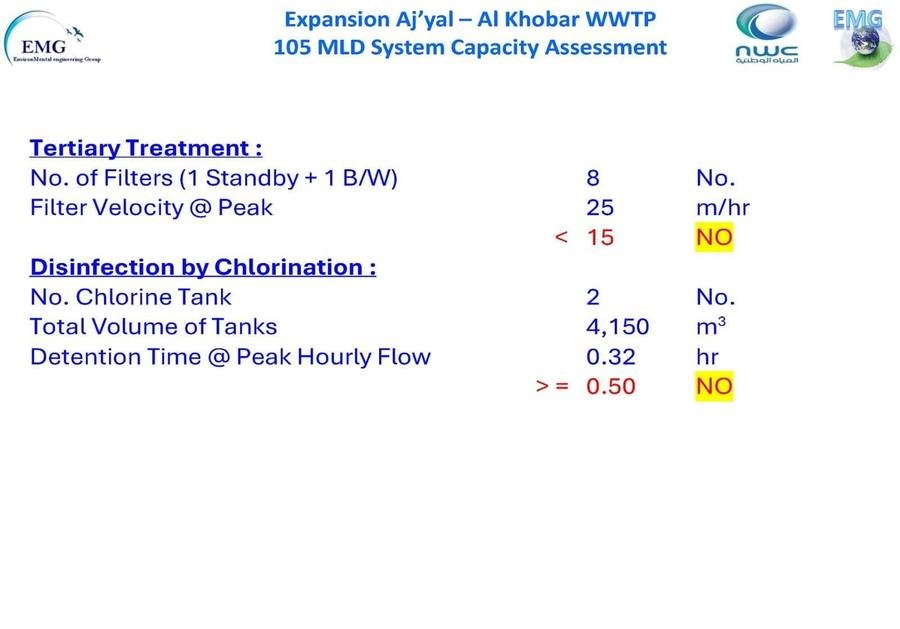

Eight filters (one standby, one backwash) run at a peak filter velocity of 25 m/h against a limit of 15, and two chlorine tanks totalling 4,150 m³ give 0.32 h detention at peak hourly flow against a required 0.50 h.
P.043

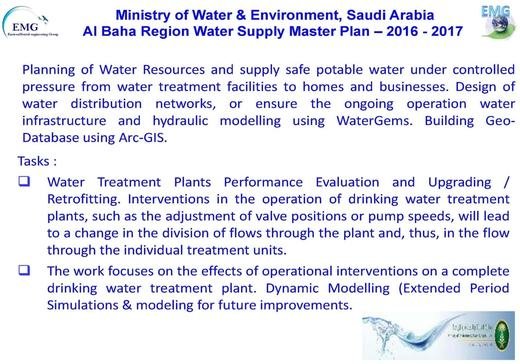

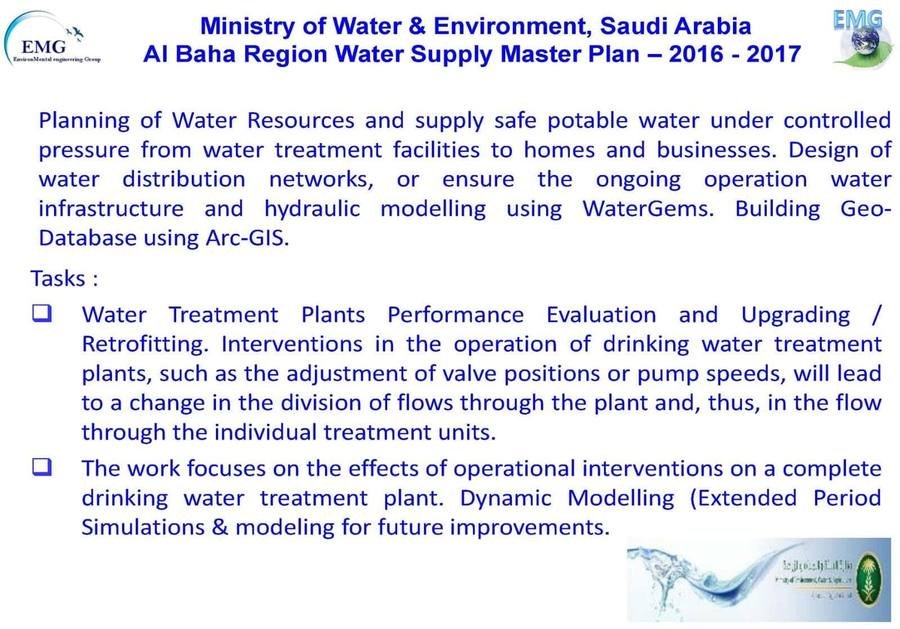

Planning of water resources and supply of safe potable water under controlled pressure from treatment facilities to homes and businesses — designing distribution networks and hydraulic modelling in WaterGEMS, with a geo-database built in ArcGIS. Work covered treatment plant performance evaluation and upgrading, and the effects of operational interventions such as valve position and pump speed on the division of flows through individual treatment units, using extended-period dynamic simulation to model future improvements.
P.044

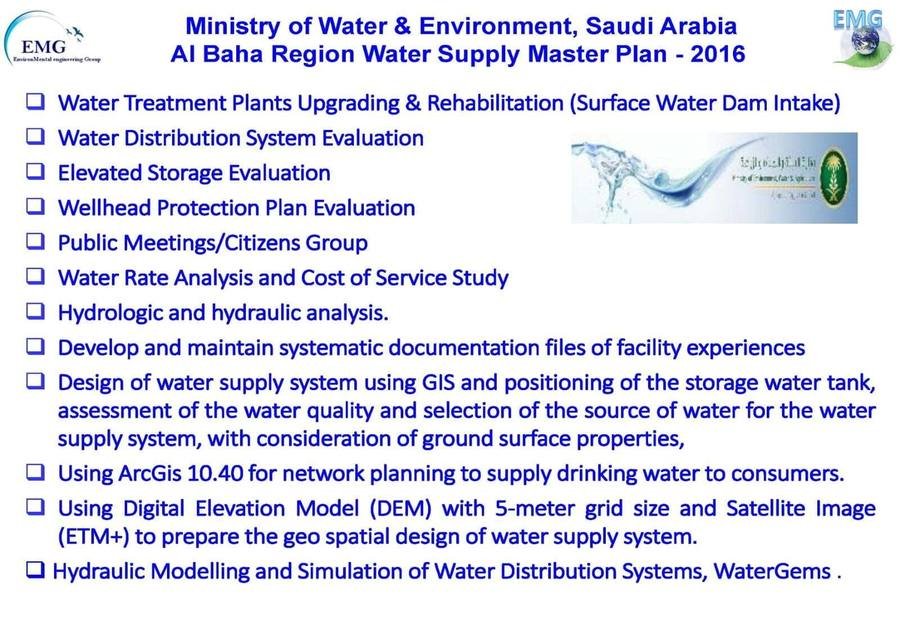

Upgrading and rehabilitation of water treatment plants at the surface water dam intake; distribution system, elevated storage and wellhead protection plan evaluation; public meetings and citizens' groups; water rate analysis and cost of service study; hydrologic and hydraulic analysis; systematic documentation of facility experience; GIS-based design and storage tank positioning with source selection; ArcGIS 10.40 network planning; a digital elevation model at 5 m grid with ETM+ satellite imagery for the geospatial design; and WaterGEMS simulation of the distribution system.
P.045

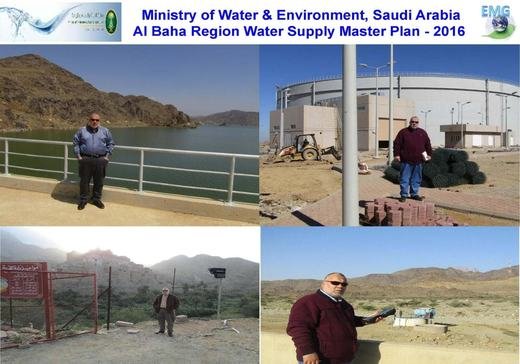

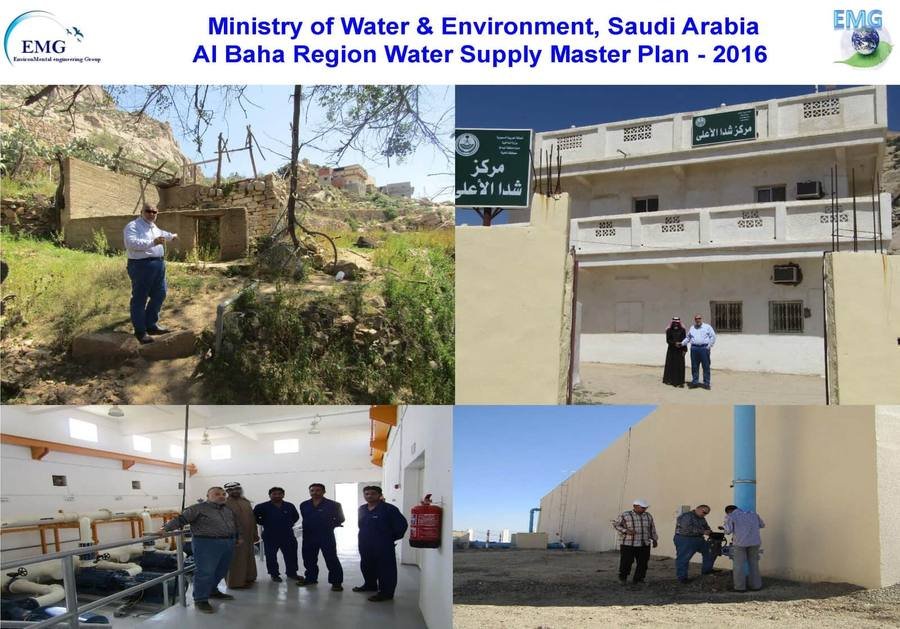

Site inspection across the dam intake, storage reservoirs and wellhead locations.
P.046

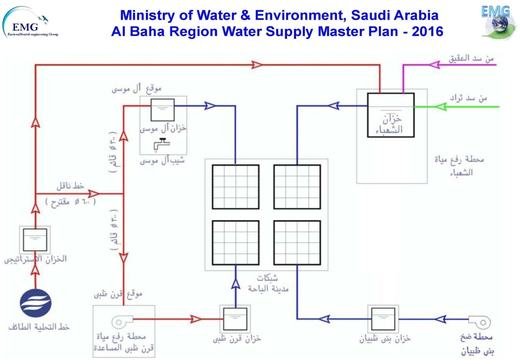

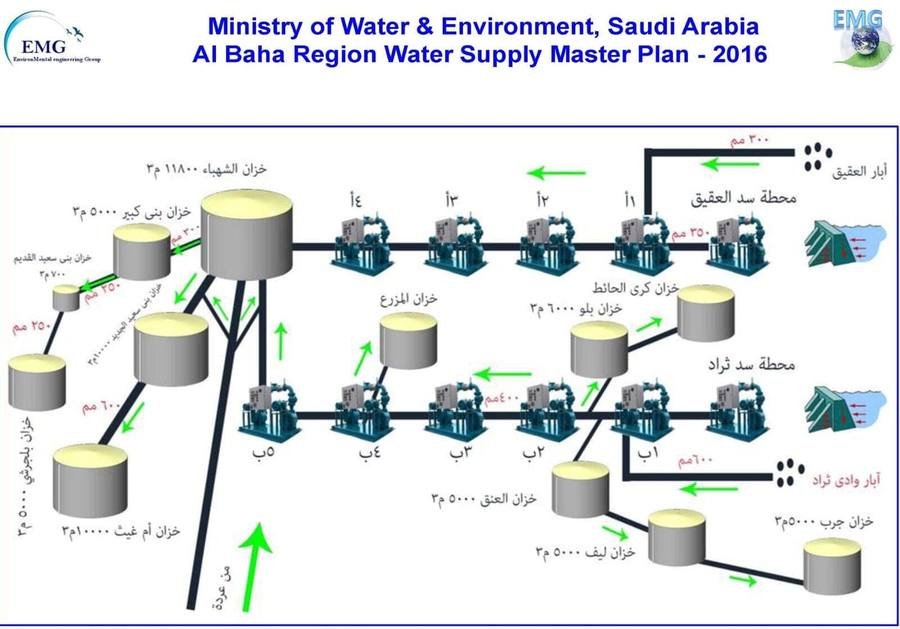

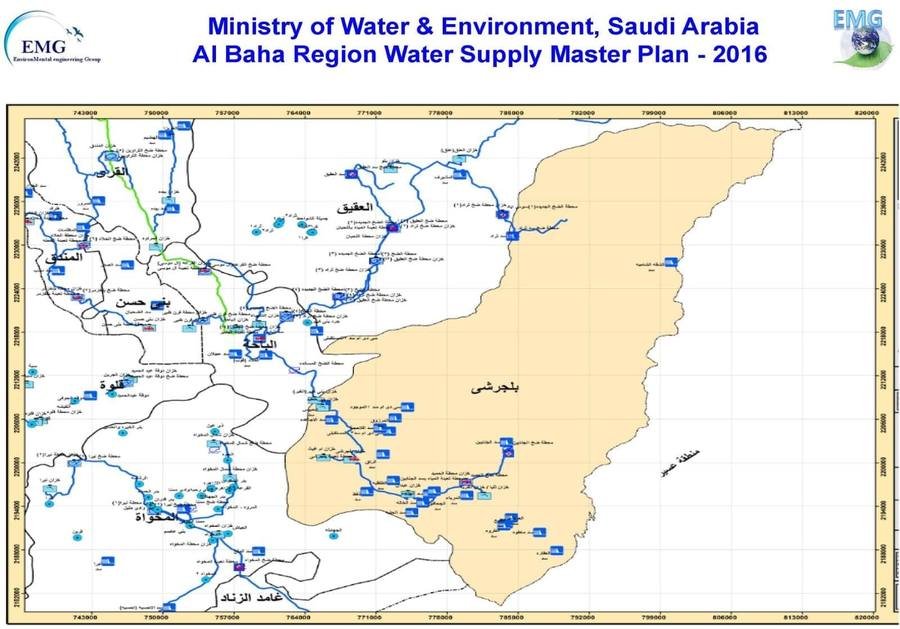

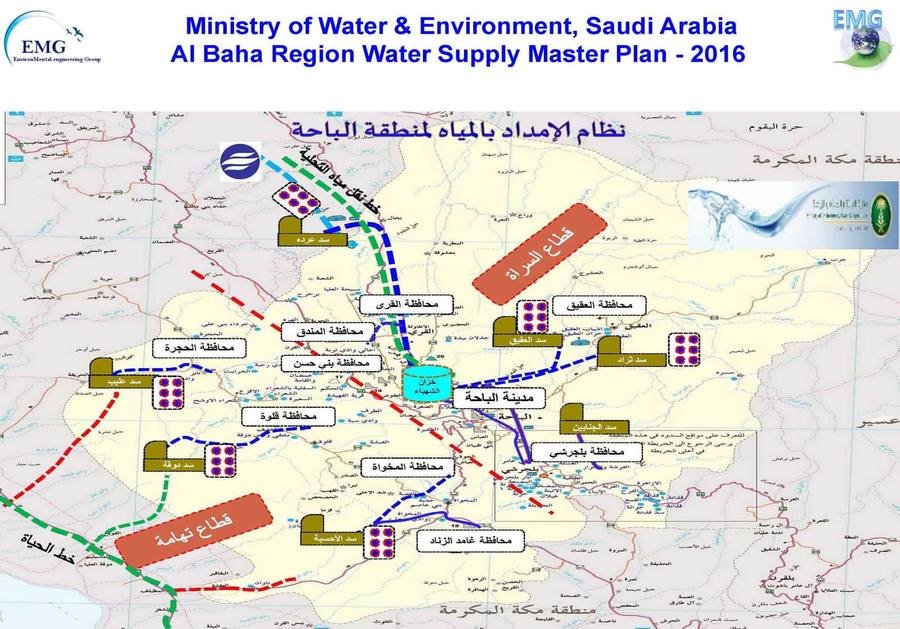

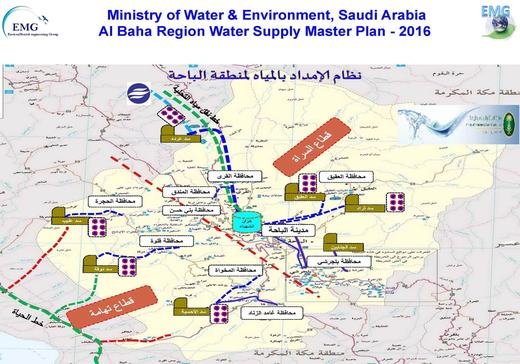

Regional schematic of the Al Baha water supply system across the governorates, showing the Al Sarah and Tehama sectors.
P.047
System schematic linking the Al Aqiq and Wadi Thurad dam intakes and wellfields through pumping stages to the Al Shahba (11,800 m³), Umm Ghaith (10,000 m³) and district reservoirs.
P.048
Georeferenced network map of supply infrastructure across the region, built for the ArcGIS database.
P.049

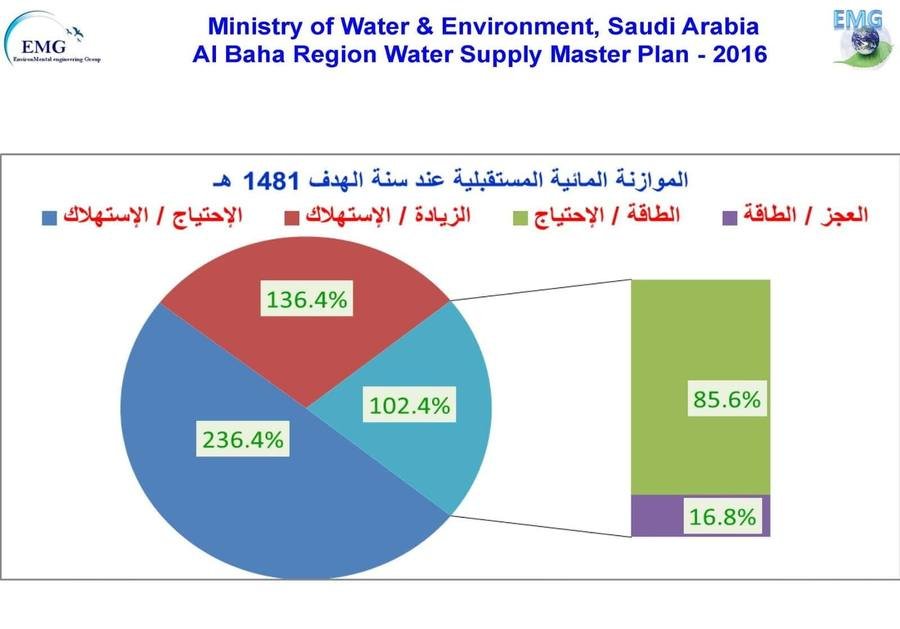

Projected water balance to the target year 1481 AH, setting capacity against demand and consumption and quantifying the resulting deficit.
P.050
Inspection of wellheads, pumping and chlorination buildings and distribution assets across the region.
P.051

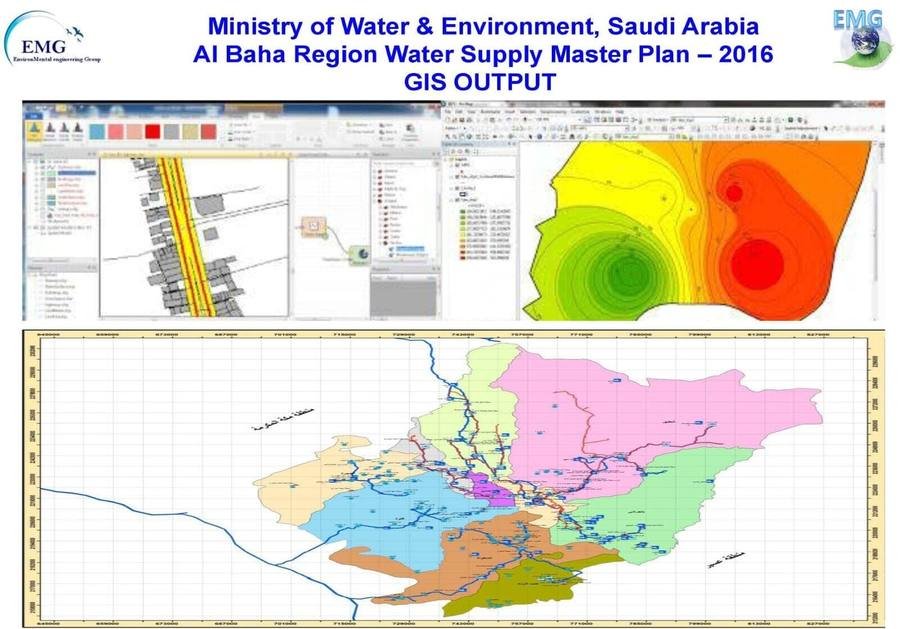

Geospatial outputs: interpolated surfaces over the region and the assembled network coverage by governorate.
P.052

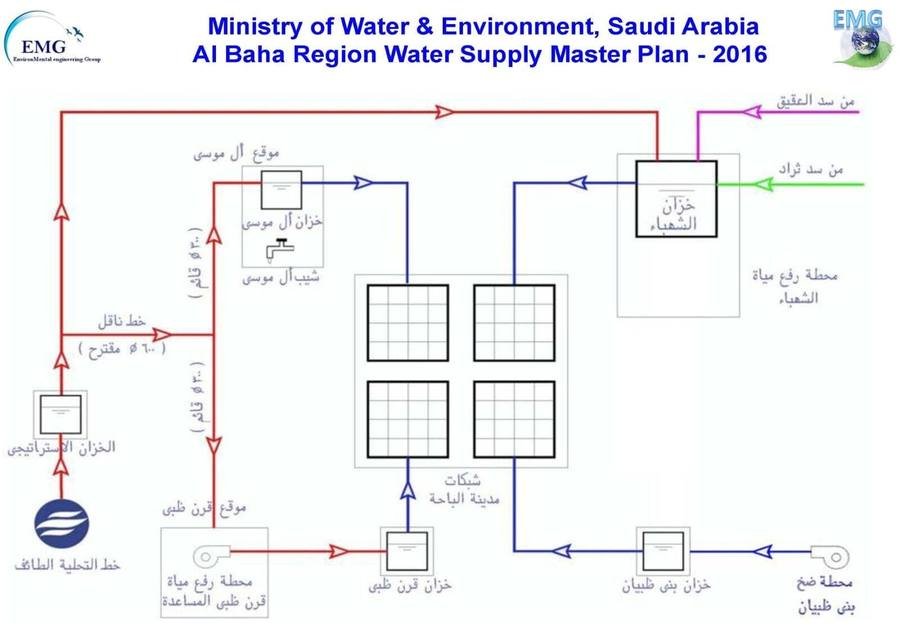

Proposed strategic reservoir and transmission arrangement linking the Al Aqiq and Thurad dam supplies, the Qarn Zabi and Bani Zabyan pumping stages and the desalination line to Al Baha city networks.
P.053

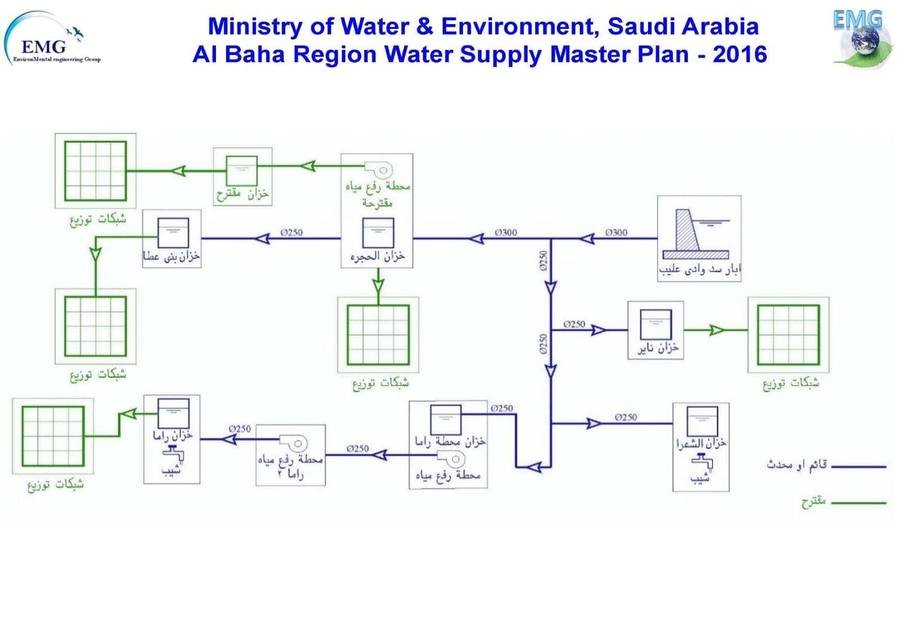

Sub-system schematic showing existing and proposed reservoirs, pumping stations and distribution networks fed from the Wadi Alieb wellfield.
P.054

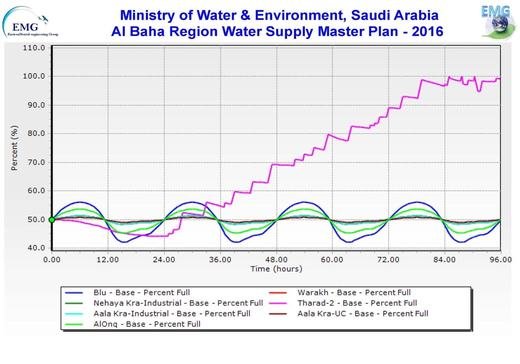

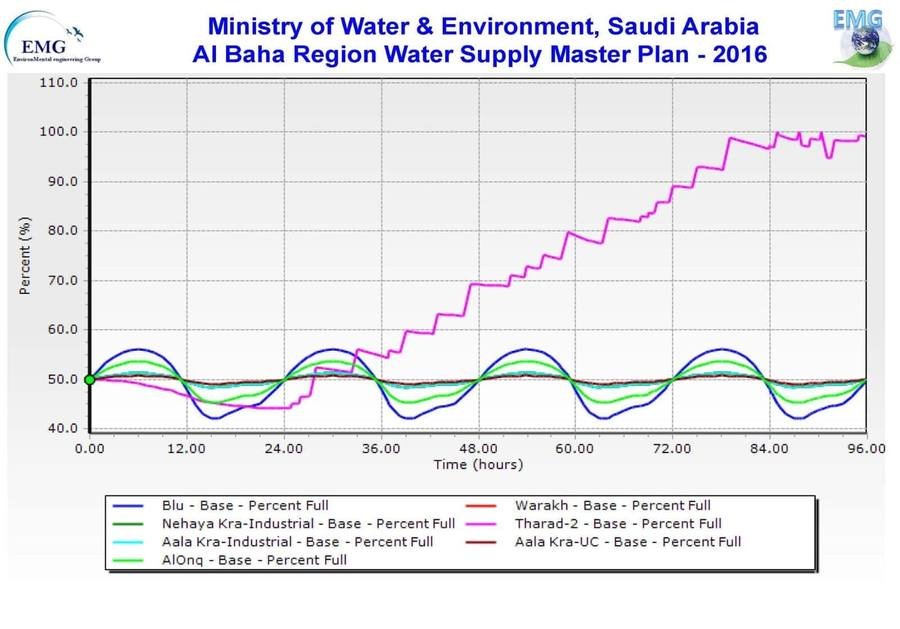

Reservoir level behaviour over a 96-hour extended-period simulation, tracking percentage full for each tank in the base scenario.
P.055

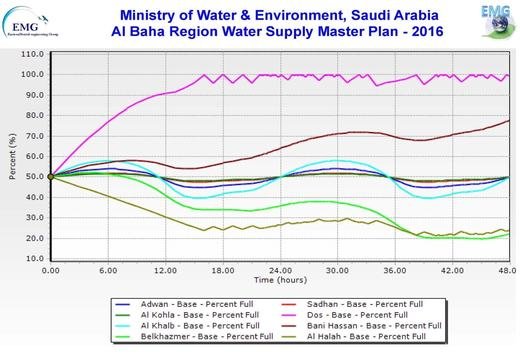

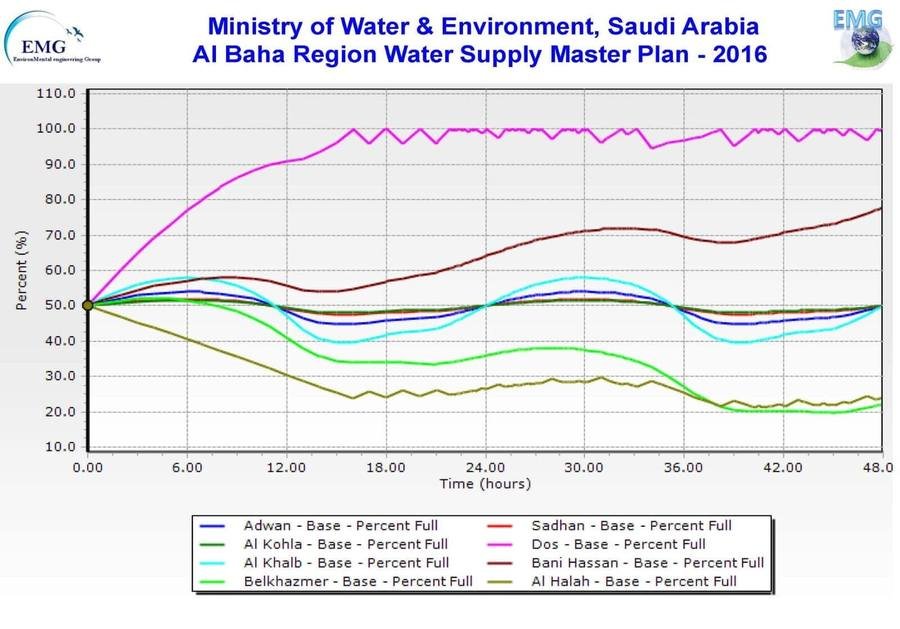

A second extended-period run over 48 hours across the Adwan, Al Kohla, Al Khalb, Belkhazmer, Sadhan, Dos, Bani Hassan and Al Halah reservoirs, exposing tanks that drain and tanks that never turn over.
P.056

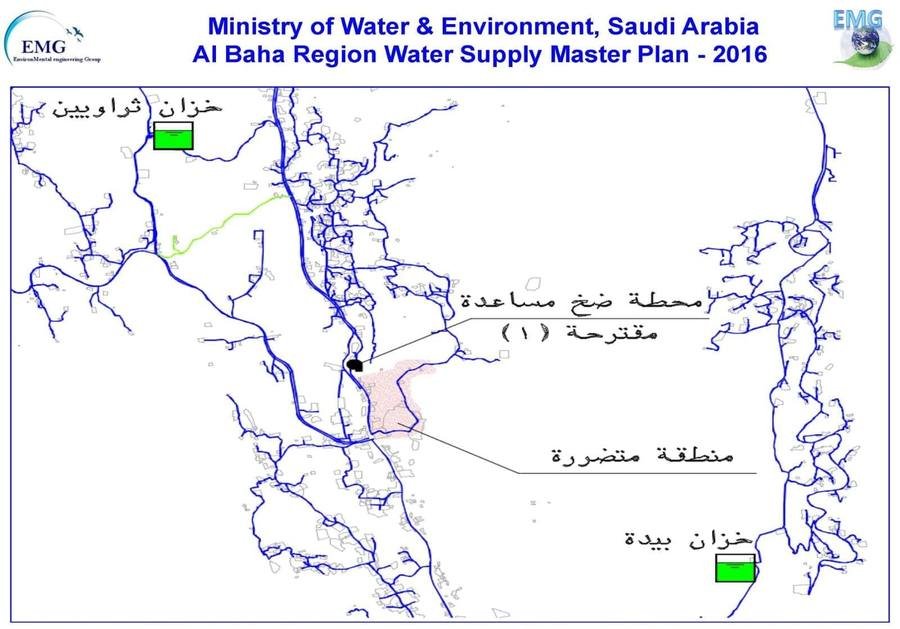

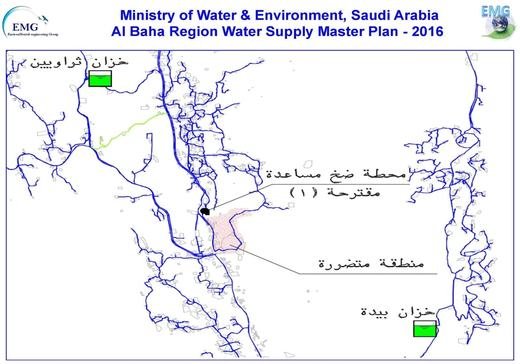

Network map identifying the under-served zone between the Tharaween and Bayda reservoirs and the location of proposed booster station no. 1.
P.057

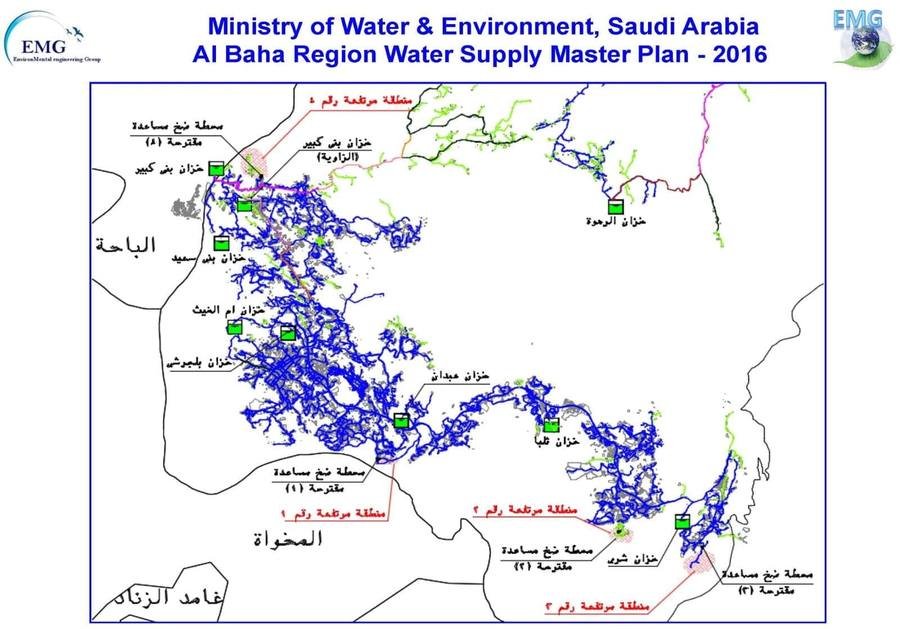

Regional network divided into pressure zones with four proposed booster stations serving Al Baha, Al Mikhwah and Ghamid Al Zinad.
P.058

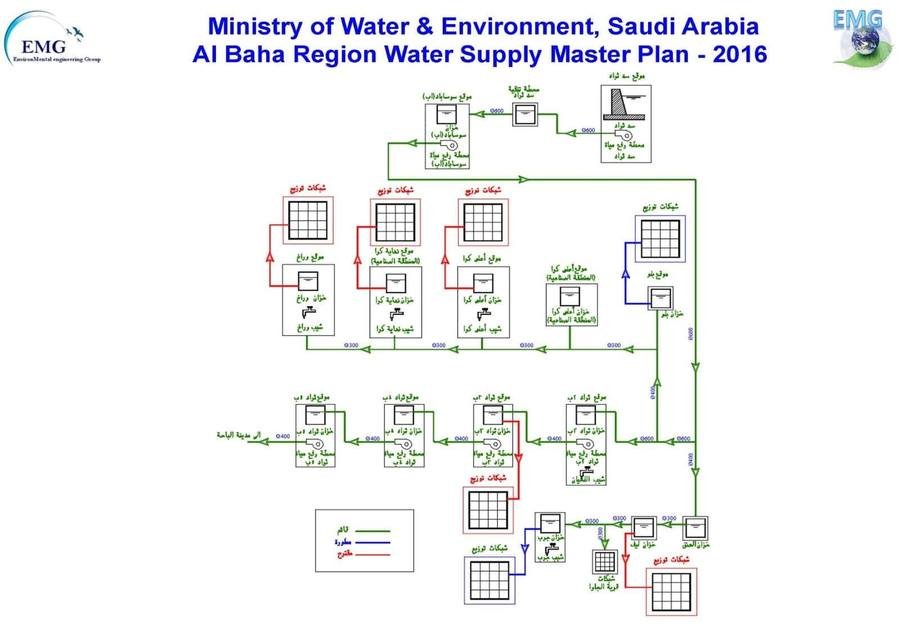

Detailed schematic of reservoirs, pumping stations and branch networks across the city supply area, distinguishing existing, proposed and out-of-service assets.
P.059

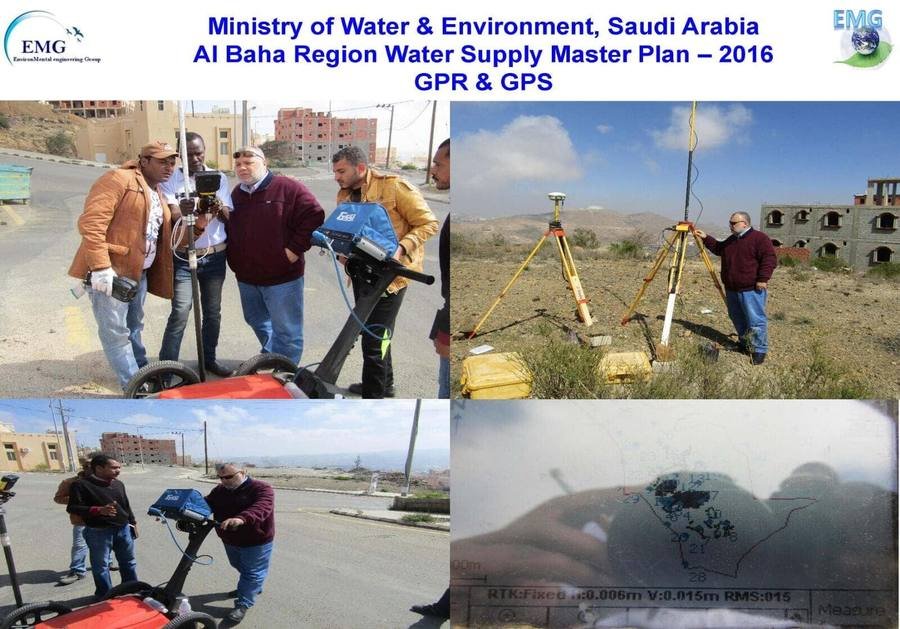

Ground-penetrating radar and RTK GPS survey to locate buried assets and fix network geometry, logged at RTK fixed accuracy of 6 mm horizontal and 15 mm vertical.
P.060

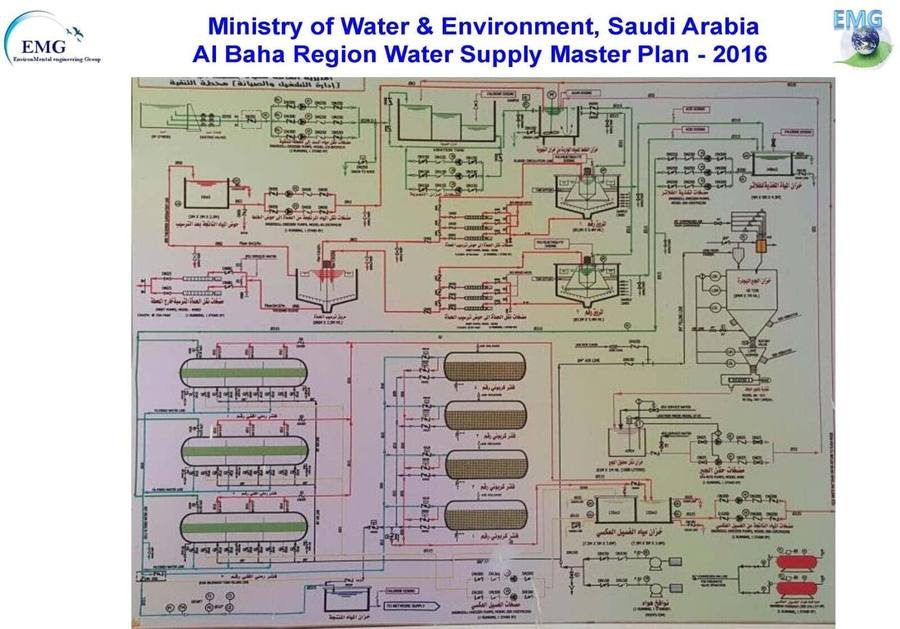

Process and instrumentation diagram of the regional water treatment plant serving the master plan area.
P.061
Site record of the surface water dams and intake structures feeding the regional supply.
P.117

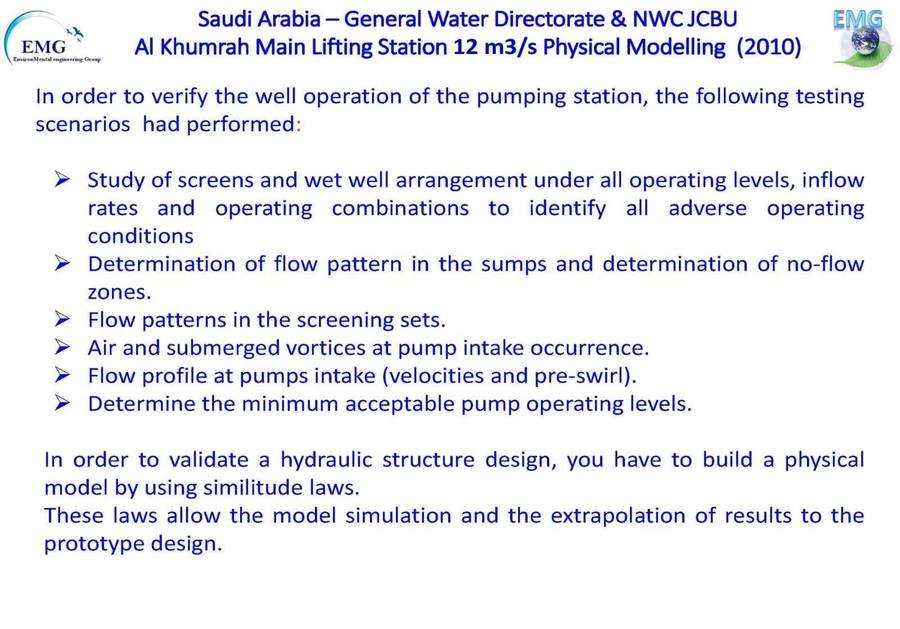

To verify the pumping station's operation, testing covered the screens and wet well arrangement under all operating levels, inflow rates and pump combinations to identify adverse conditions; flow pattern and no-flow zones in the sumps; flow patterns through the screening sets; air and submerged vortices at the pump intakes; flow profile at the intakes including velocities and pre-swirl; and the minimum acceptable pump operating levels. Validating a hydraulic structure design requires building a physical model under similitude laws, which allow model results to be extrapolated to the prototype.
P.118

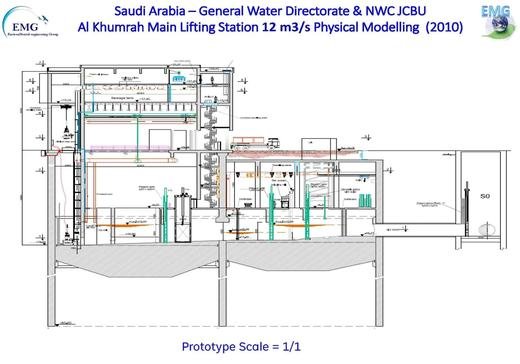

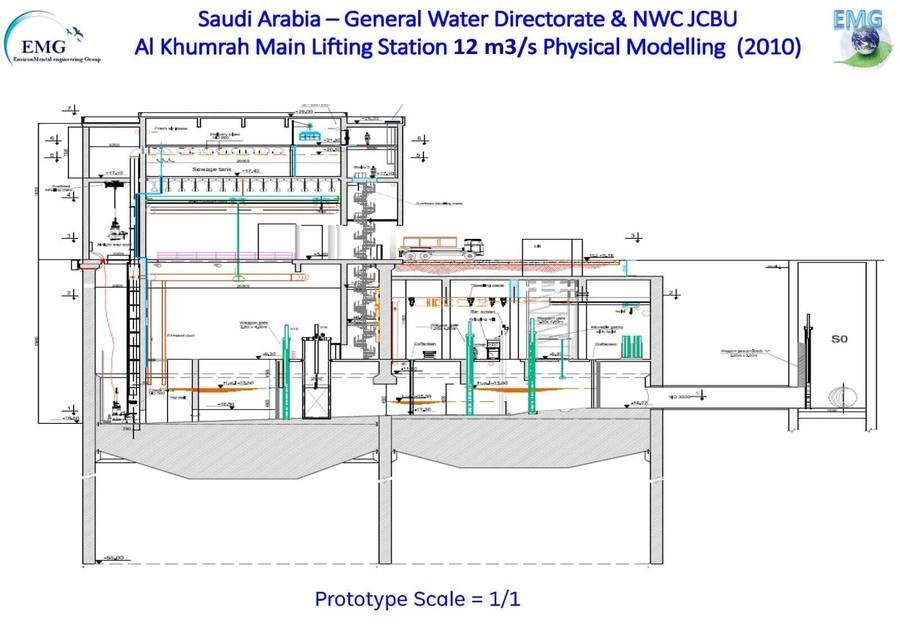

Sectional drawing of the lifting station as built, at prototype scale 1:1.
P.119

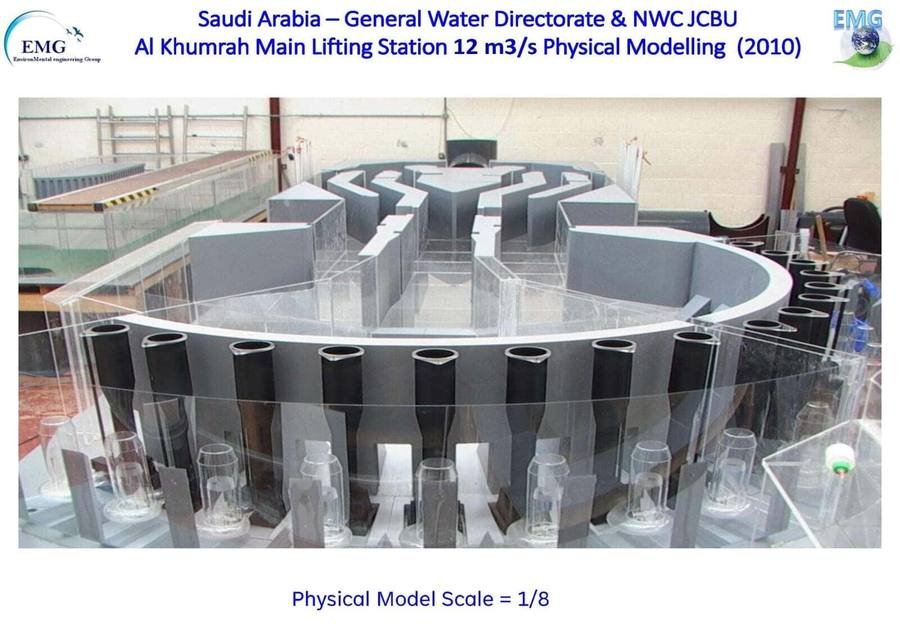

The hydraulic laboratory model of the circular wet well and pump intakes, built at 1:8 scale.
P.120
Observation and measurement on the physical model, including dye and vortex studies at the intakes.
P.121
Model construction and technical review sessions in the hydraulics laboratory.
P.122

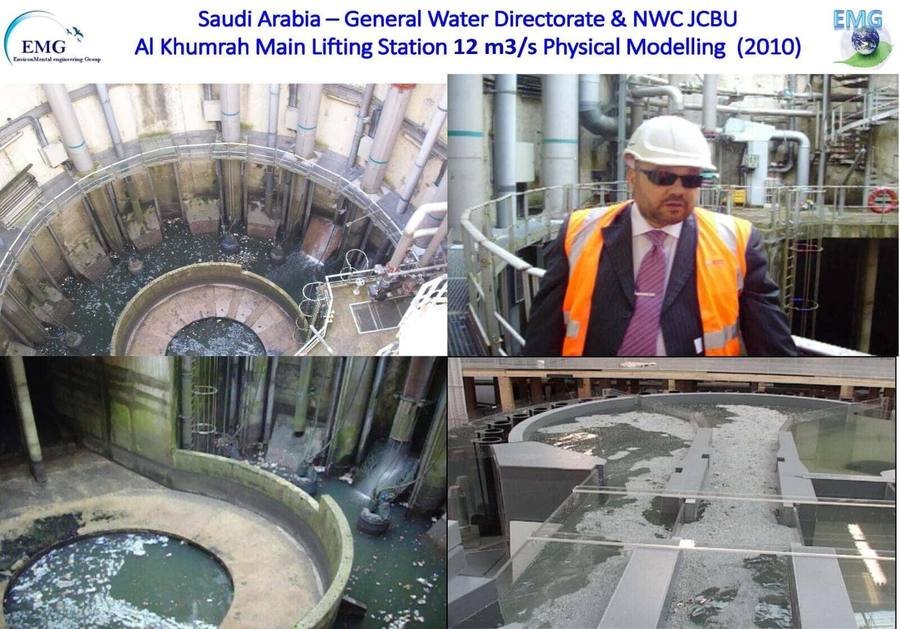

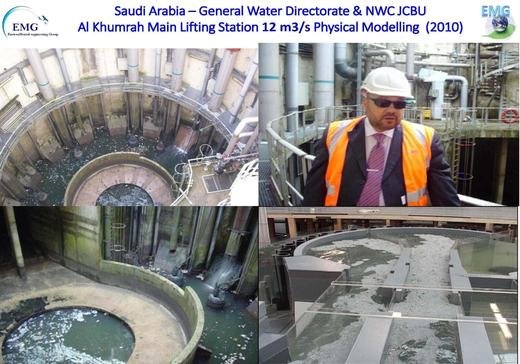

The constructed wet well and screening channels against the corresponding model arrangement.
P.123

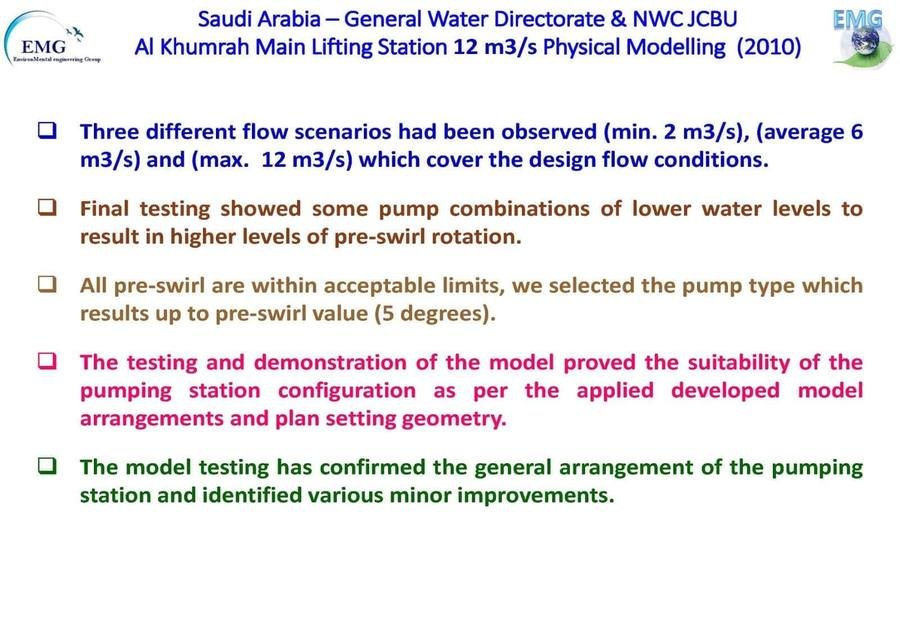

Three flow scenarios were observed — minimum 2 m³/s, average 6 m³/s and maximum 12 m³/s — covering the design conditions. Final testing showed some pump combinations at lower water levels producing higher pre-swirl rotation, but all pre-swirl remained within acceptable limits and a pump type tolerant to 5 degrees of pre-swirl was selected. The testing proved the suitability of the pumping station configuration as developed, confirmed the general arrangement and identified various minor improvements.
P.124

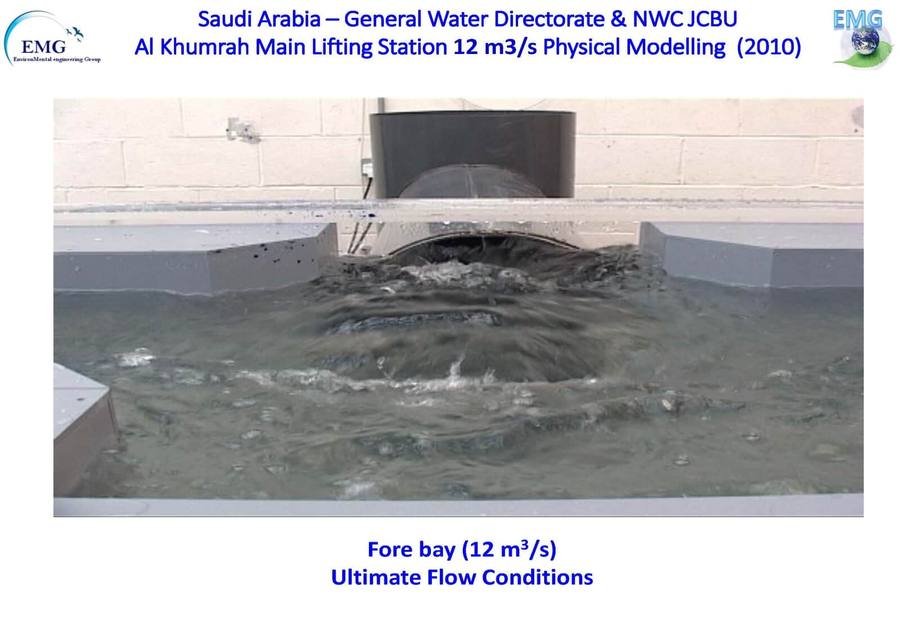

The forebay under ultimate flow conditions at 12 m³/s.
P.125

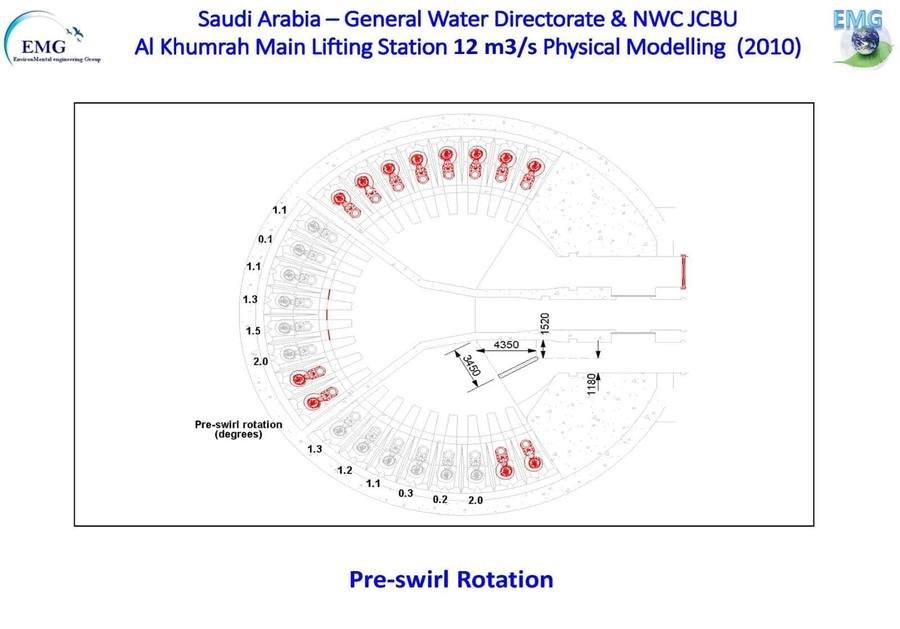

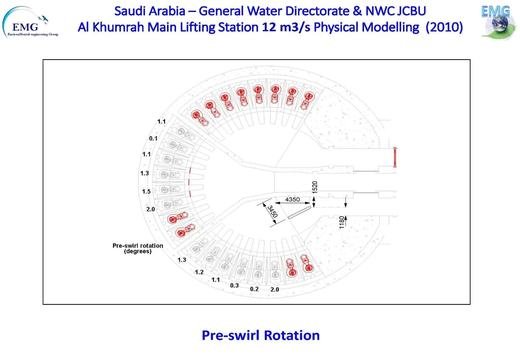

Measured pre-swirl rotation in degrees at each pump bay around the circular wet well, with the critical positions marked.
P.126

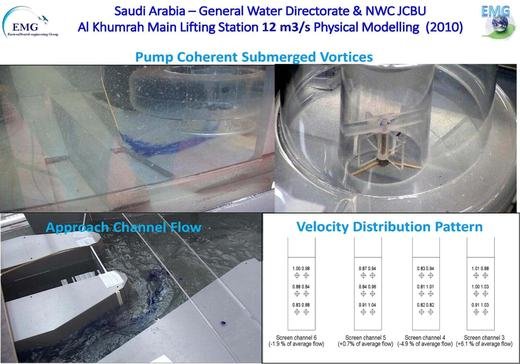

Observation of coherent submerged vortices at the pump intakes and approach channel flow, with the velocity distribution pattern measured across screen channels 3 to 6 — ranging from 4.9 per cent below to 6.1 per cent above average flow.
P.127

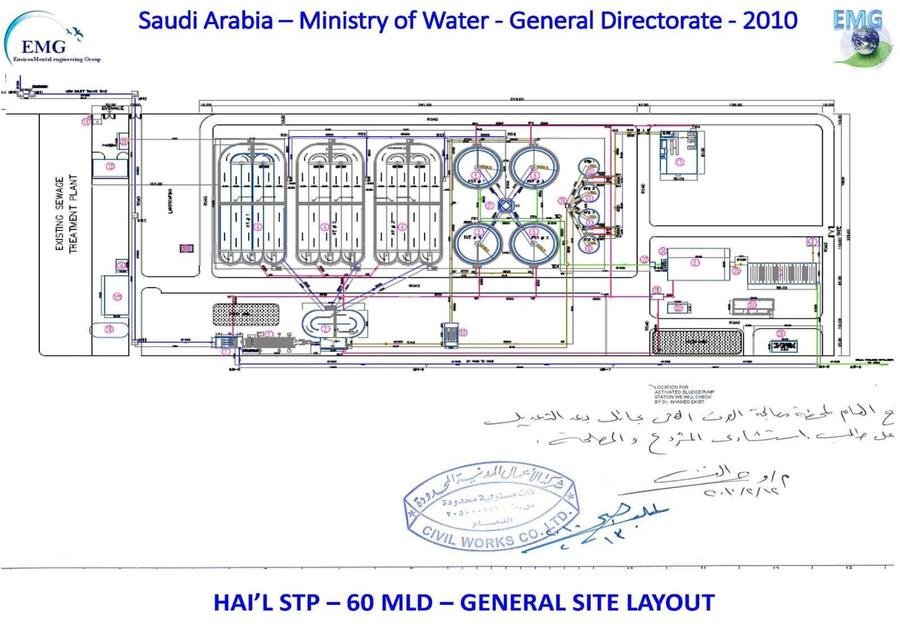

Approved general site layout for the sewage treatment plant, showing the activated sludge pump station relative to the existing works.
P.128

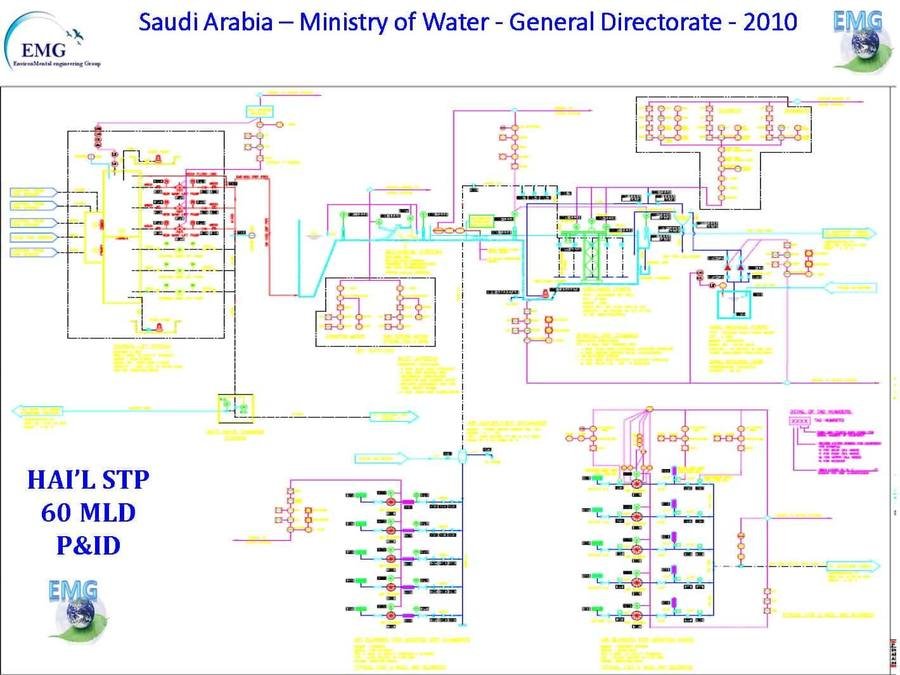

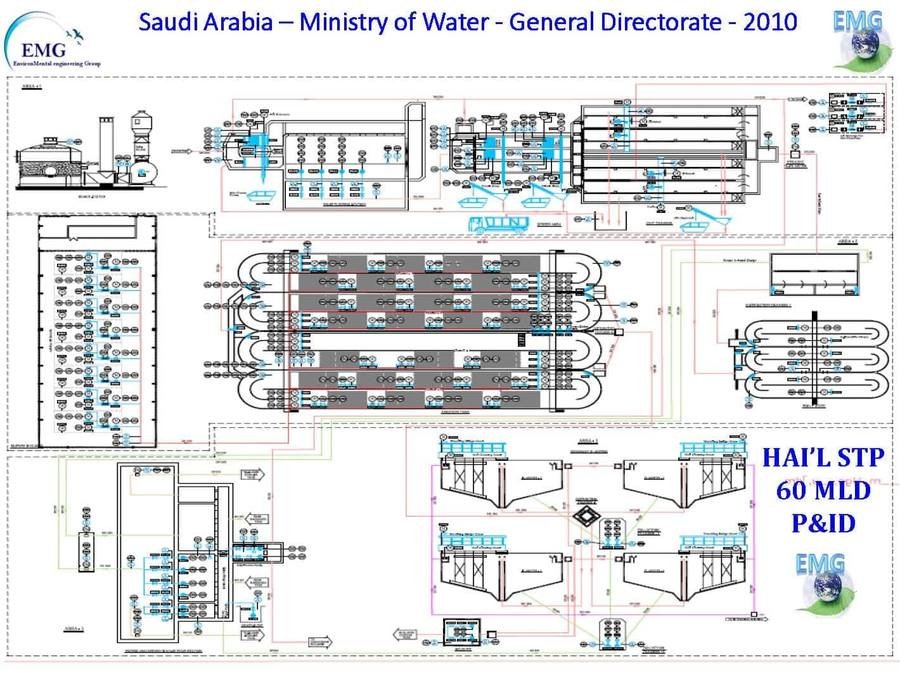

Full P&ID for the 60 MLD plant covering inlet works, biological treatment, clarification and tertiary stages.
P.129

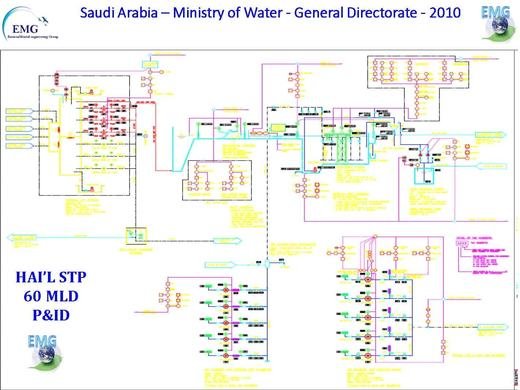

Second P&ID sheet covering the ancillary and control systems for the 60 MLD plant.
P.130

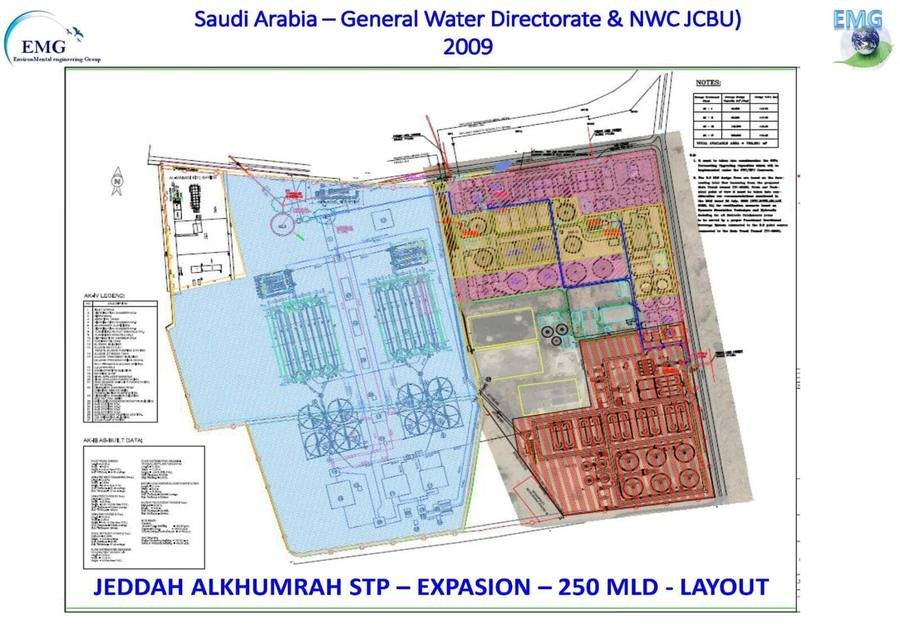

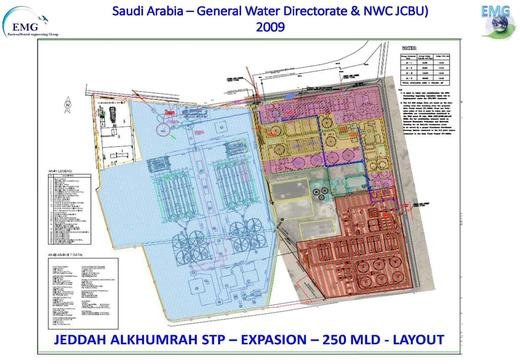

Expansion layout for the plant, setting the new treatment blocks against the existing works on the surveyed site.
P.131

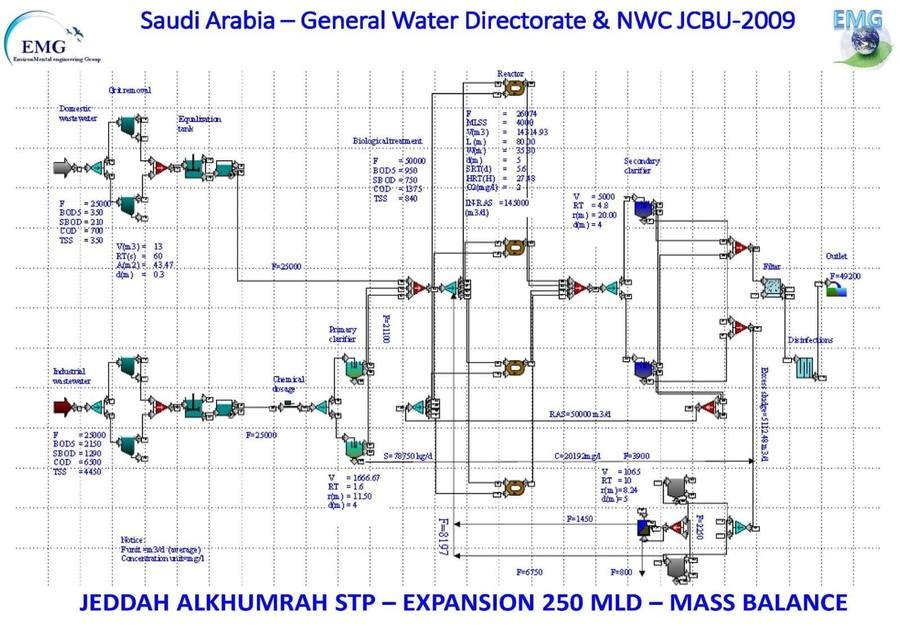

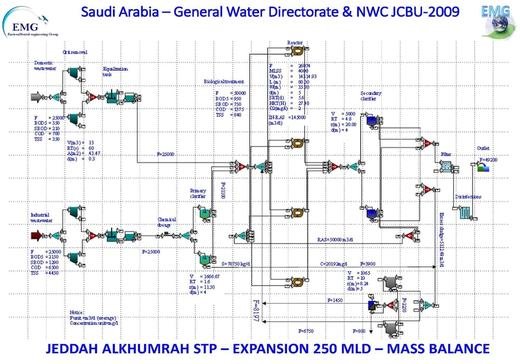

Mass balance across the 250 MLD expansion, taking 50,000 m³/day of domestic wastewater at 330 mg/L BOD₅ and 2,500 m³/day of industrial wastewater at 2,150 mg/L BOD₅ through equalisation, chemical dosing, primary clarification, biological treatment, secondary clarification, filtration and disinfection, with return activated sludge at 50,000 m³/day.
P.132

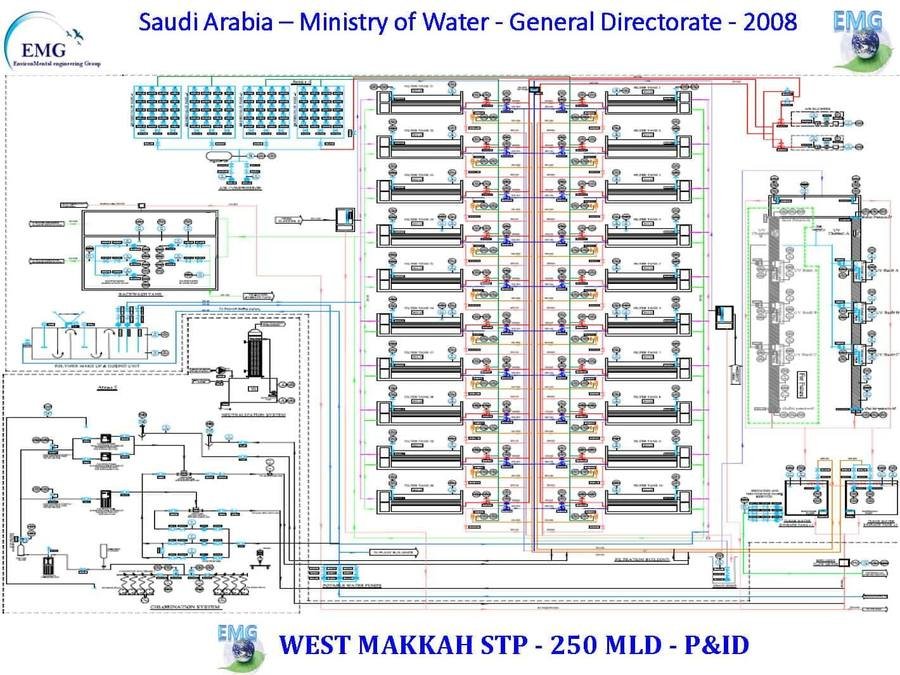

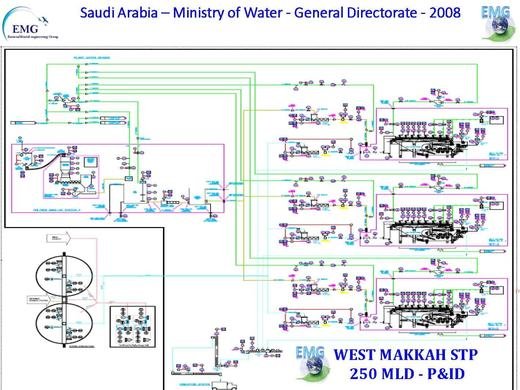

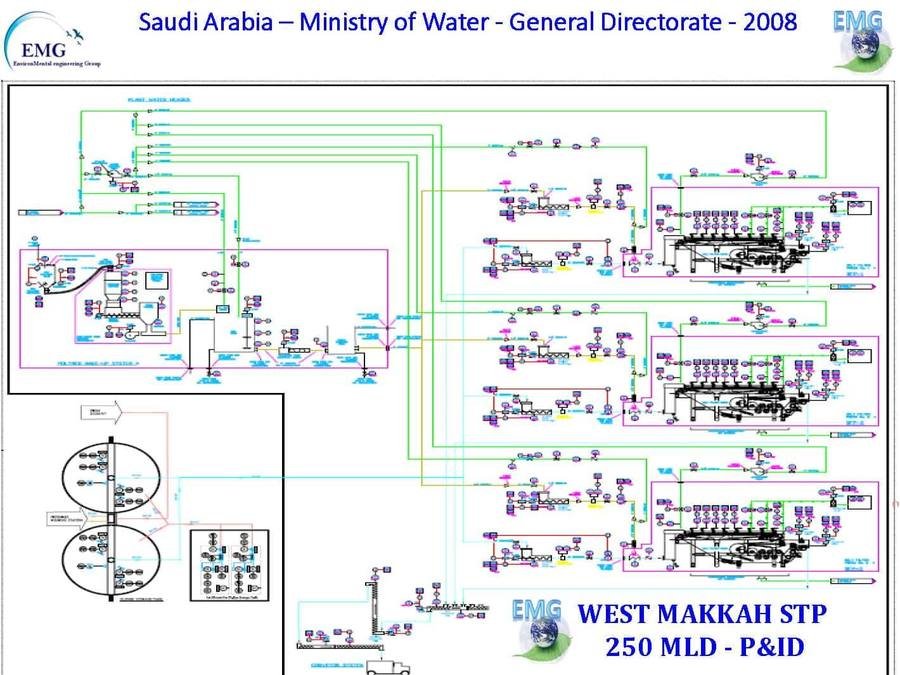

P&ID for the 250 MLD works, showing the parallel treatment streams and their control.
P.133
Complete process and instrumentation diagram for the 250 MLD works, showing the full bank of parallel treatment trains.
P.159

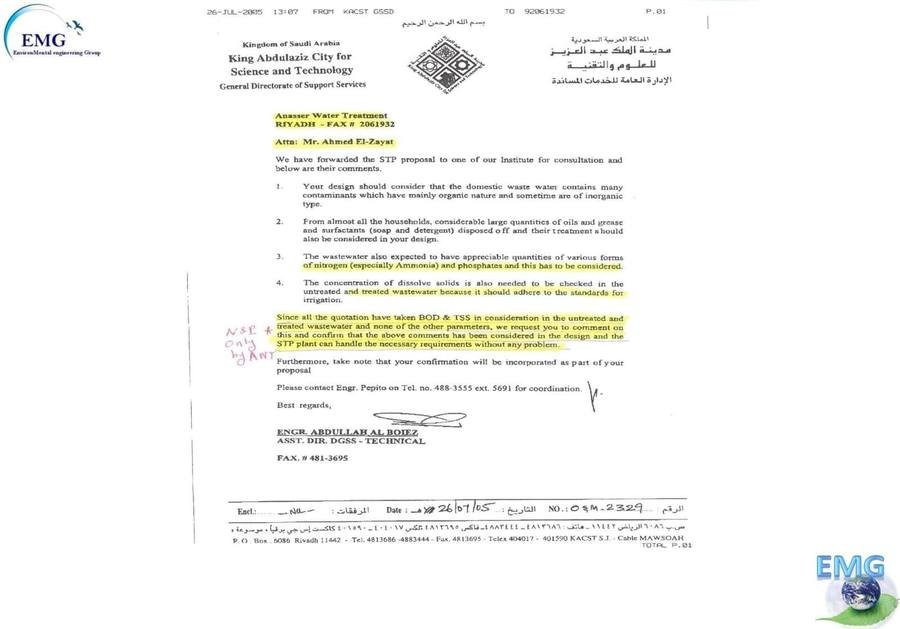

King Abdulaziz City for Science and Technology returned comments on the sewage treatment plant proposal: the design should consider that domestic waste contains contaminants mainly organic and sometimes inorganic; that household use means considerable quantities of oils, greases and surfactants are disposed of and their treatment should be considered; that appreciable quantities of nitrogen — especially ammonia — and phosphates are expected; and that dissolved solids concentration in untreated and treated wastewater should adhere to standards for irrigation.
P.160

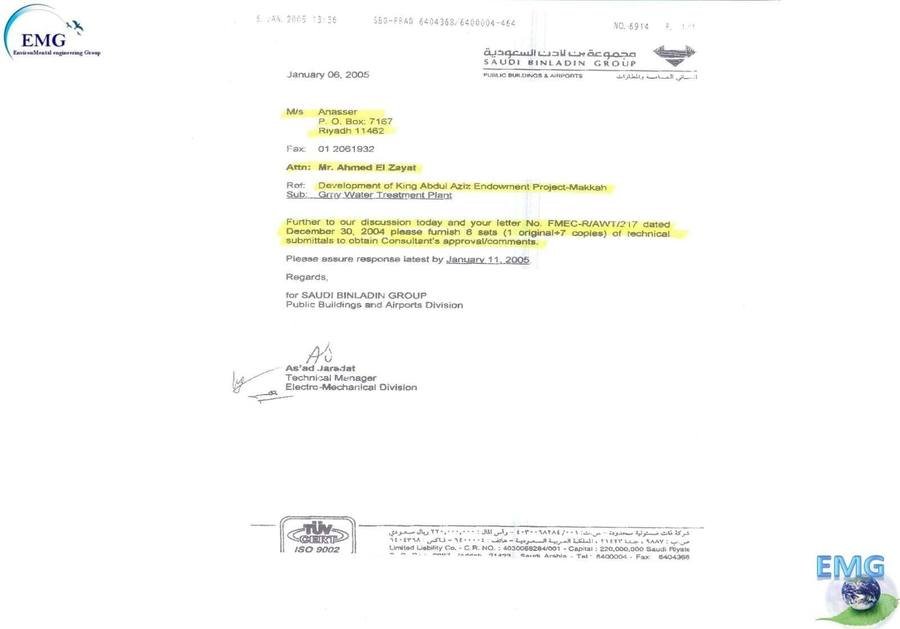

The Public Buildings and Airports Division requested technical submittals for the grey water treatment plant on the King Abdul Aziz Endowment project in Makkah, January 2005.
P.161
Follow-up on the grey water treatment plant submittal, enclosing the consultant's comments for compliance and response, February 2005.
Process design, dynamic simulation and commissioning support for the Sultanate's largest treatment and reclamation schemes.
P.062

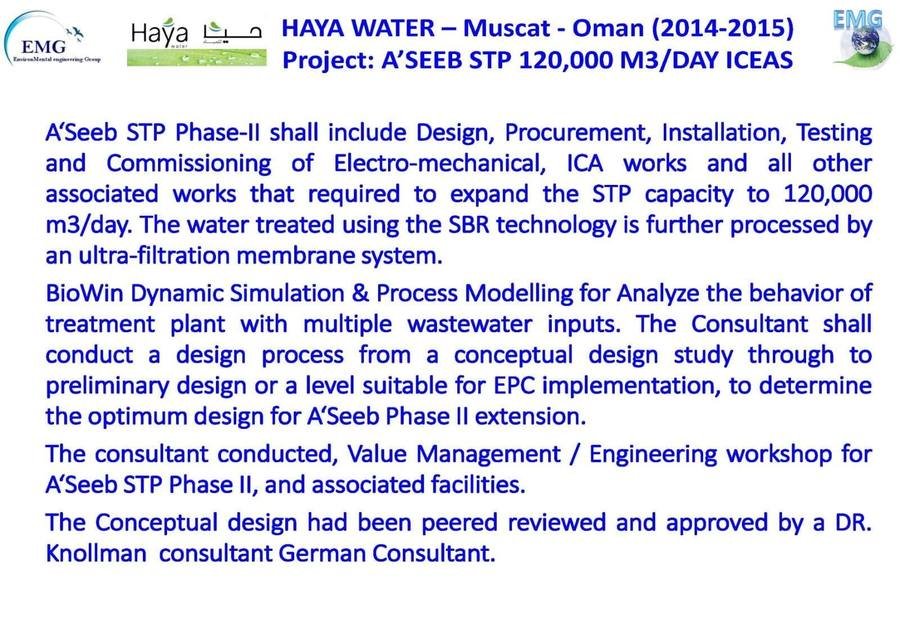

Phase II covered design, procurement, installation, testing and commissioning of electro-mechanical and ICA works to expand the plant to 120,000 m³/day, with SBR-treated water further processed through an ultra-filtration membrane system. EMG carried out BioWin dynamic simulation and process modelling to analyse plant behaviour under multiple wastewater inputs, taking the design from conceptual study through to a level suitable for EPC implementation, and ran the value management and engineering workshop for Phase II. The conceptual design was peer reviewed and approved by Dr. Knollmann, the German consultant.
P.063

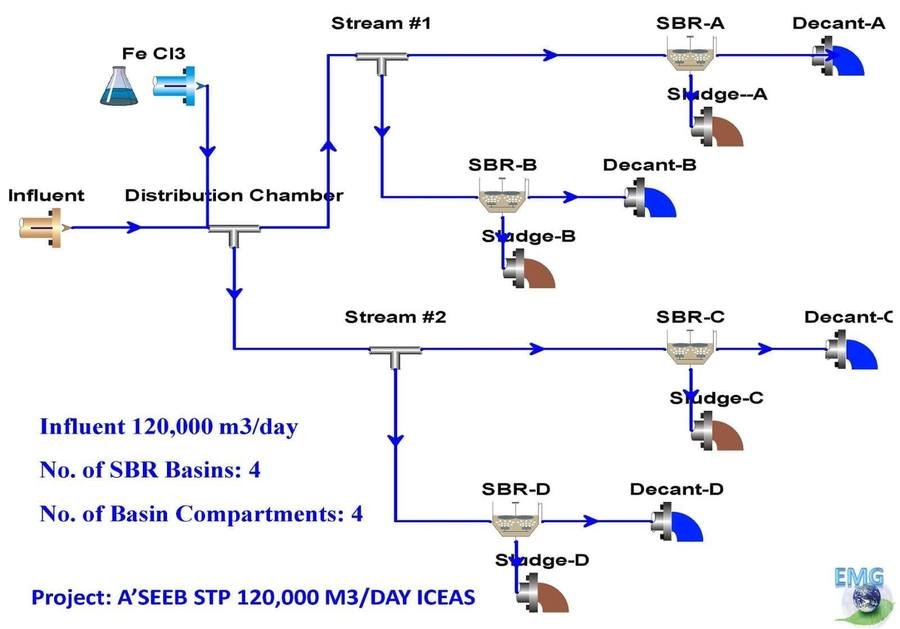

Influent of 120,000 m³/day split through a distribution chamber into two streams feeding four SBR basins of four compartments each, with ferric chloride dosing, decant and sludge draw-off from every basin.
P.064

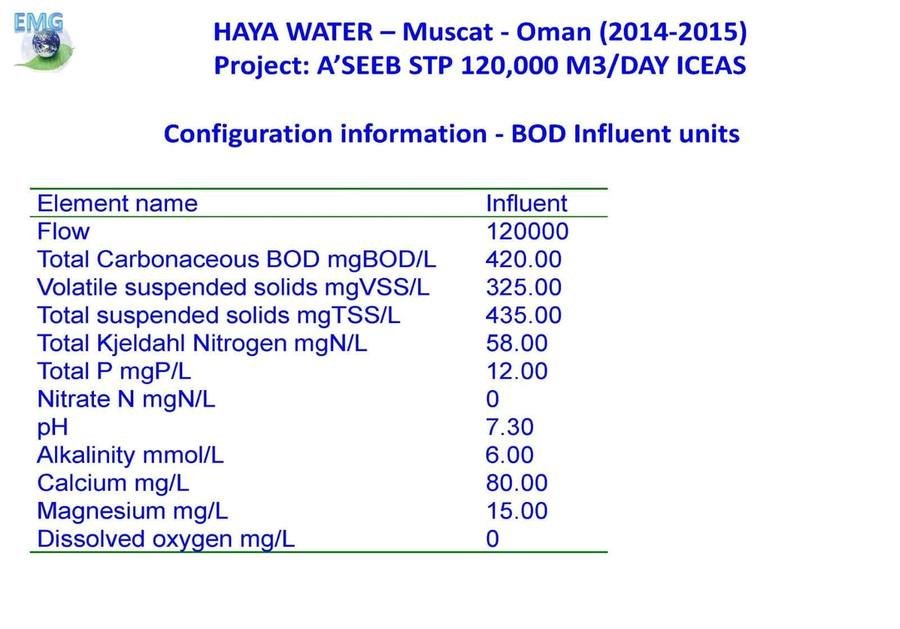

Model influent: 120,000 m³/day at 420 mg/L carbonaceous BOD, 325 mg/L volatile suspended solids, 435 mg/L total suspended solids, 58 mg N/L TKN, 12 mg P/L total phosphorus, pH 7.30, alkalinity 6.00 mmol/L, calcium 80 mg/L and magnesium 15 mg/L.
P.065

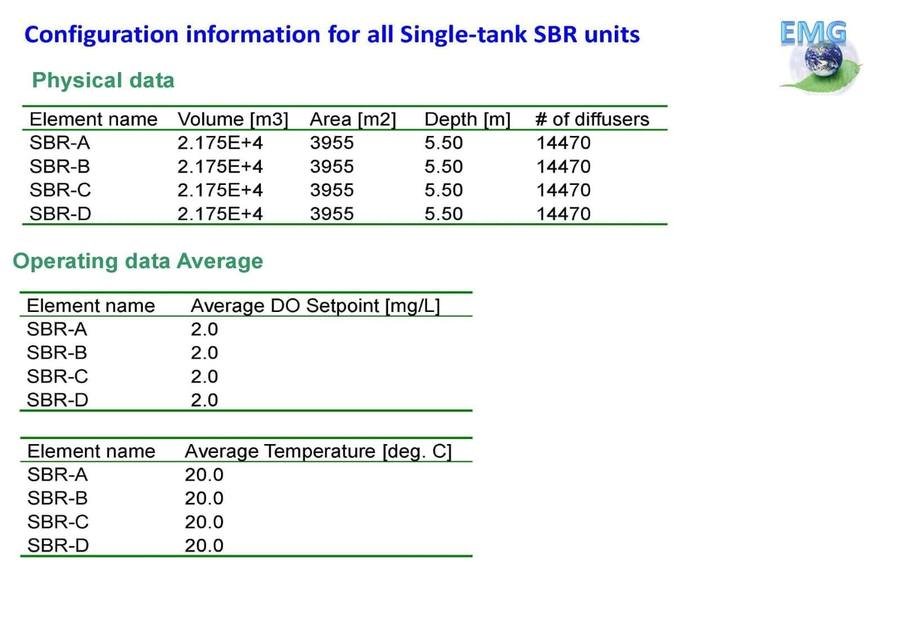

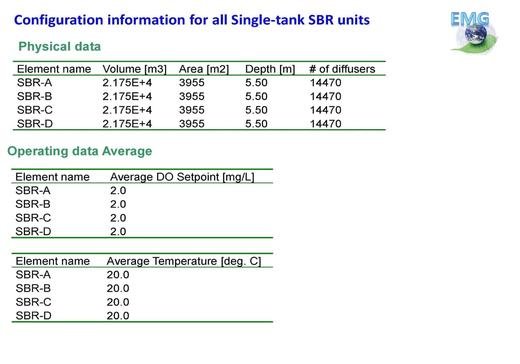

Each of the four SBR units modelled at 21,750 m³ volume, 3,955 m² area and 5.50 m depth with 14,470 diffusers, run at a 2.0 mg/L dissolved oxygen setpoint and 20 °C average temperature.
P.066

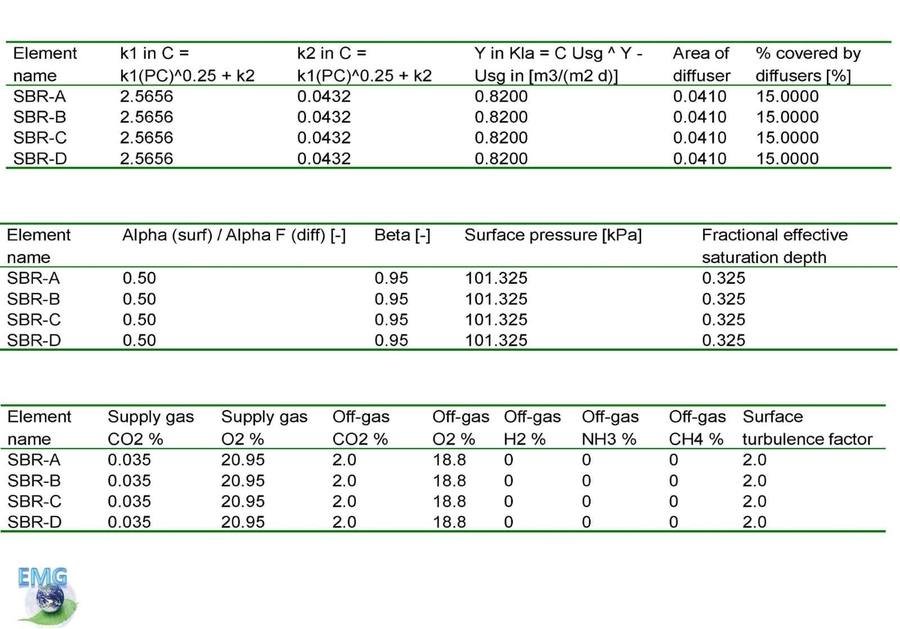

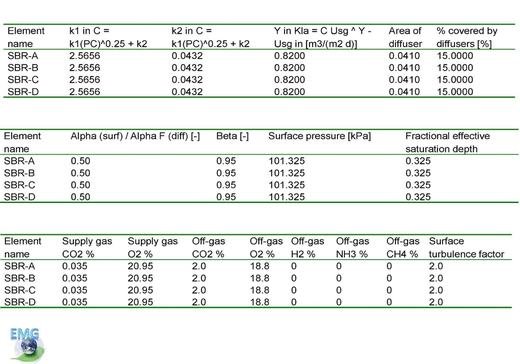

Oxygen transfer parameters per basin: alpha 0.50, beta 0.95, surface pressure 101.325 kPa, fractional effective saturation depth 0.325, diffuser area 0.0410 m² at 15 per cent floor coverage, with supply and off-gas composition defined for the model.
P.067

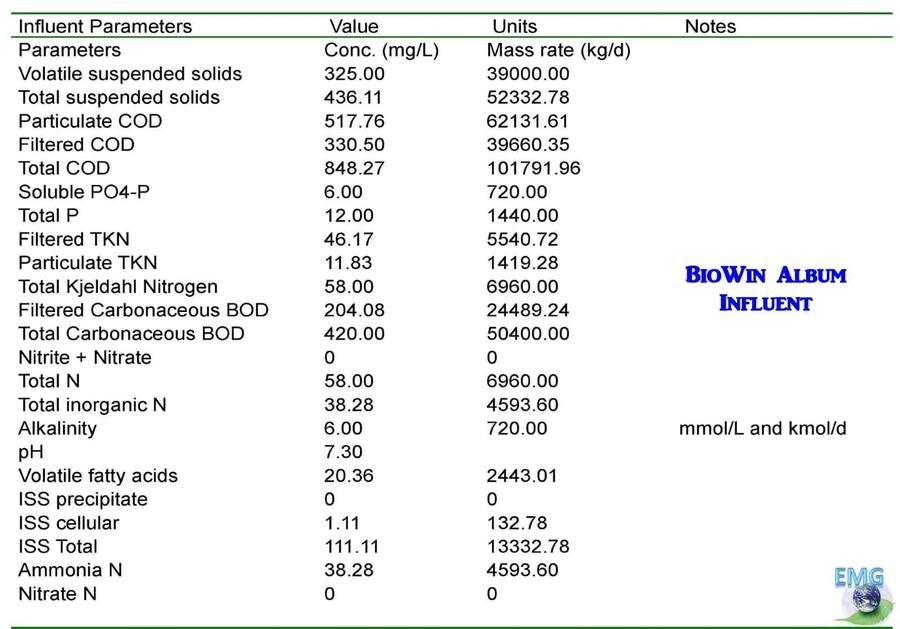

Full influent state for the simulation: total COD 848.27 mg/L (101,792 kg/day), particulate COD 517.76 mg/L, filtered COD 330.50 mg/L, total nitrogen 58.00 mg/L, soluble phosphate 6.00 mg/L, volatile fatty acids 20.36 mg/L and alkalinity 6.00 mmol/L.
P.068

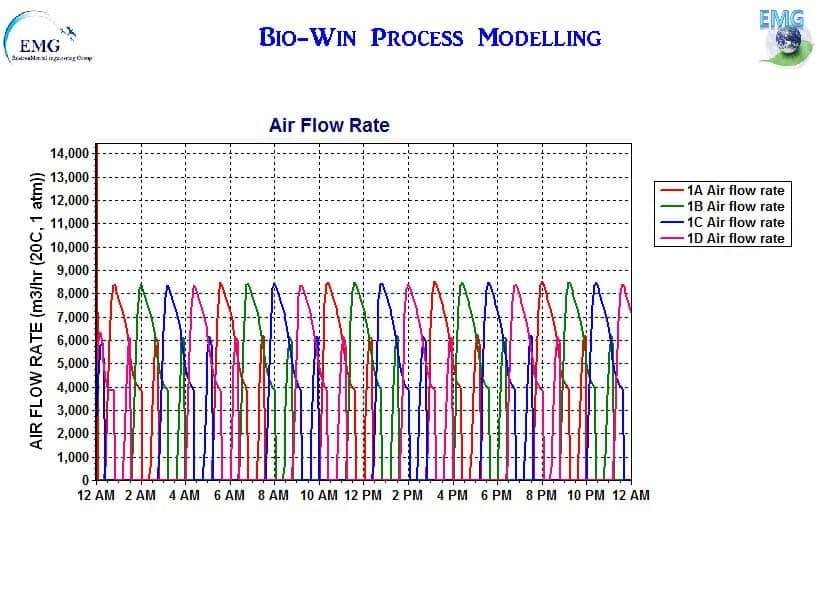

Modelled air flow across the four SBR basins over a full day, cycling between roughly 4,000 and 8,500 m³/h per basin as the batches sequence.
P.069

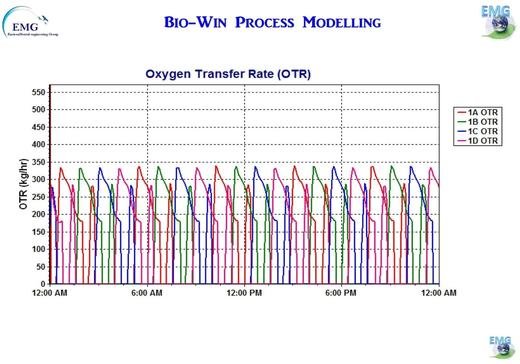

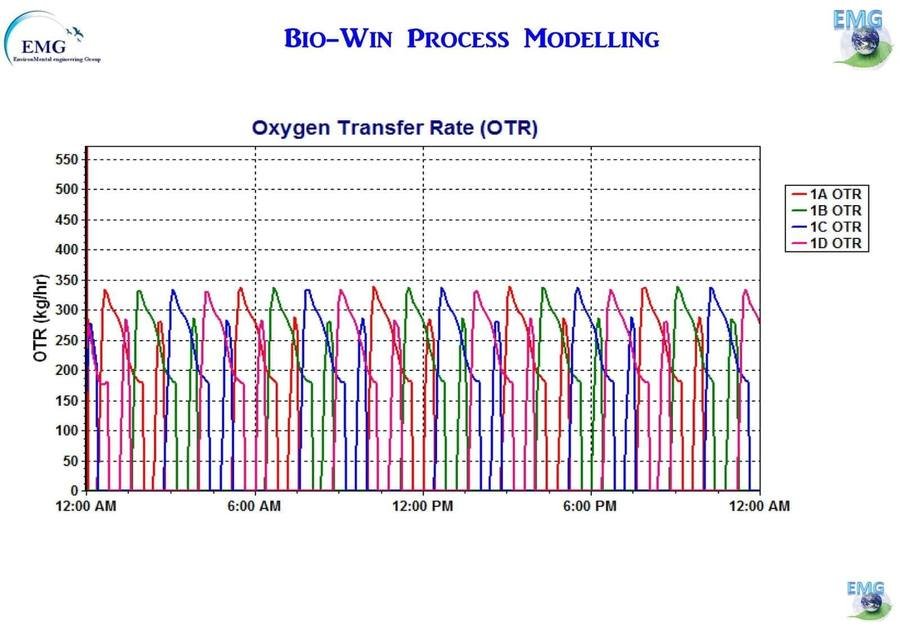

Oxygen transfer rate per basin over the daily cycle, peaking near 350 kg/h at the start of each aeration phase.
P.070

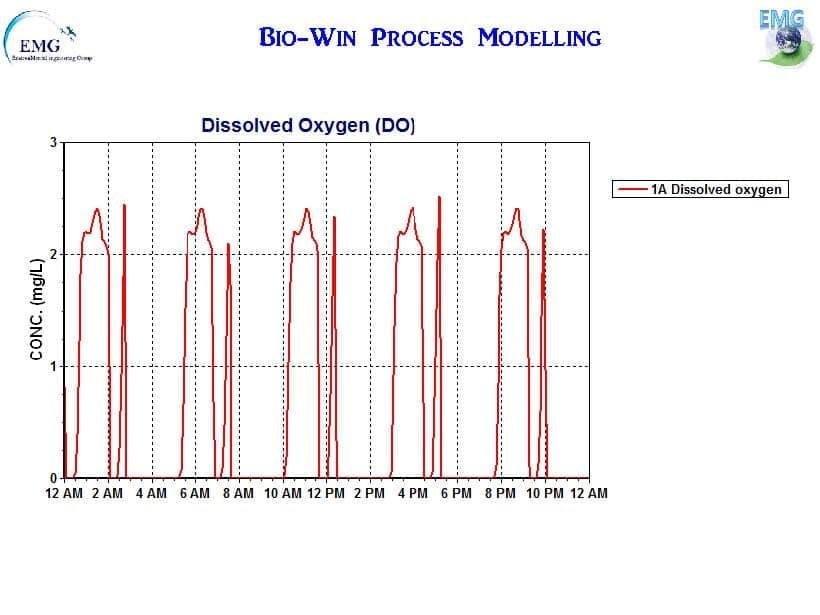

Dissolved oxygen trace within a single basin, holding around 2 mg/L through aeration and falling away during settle and decant.
P.071

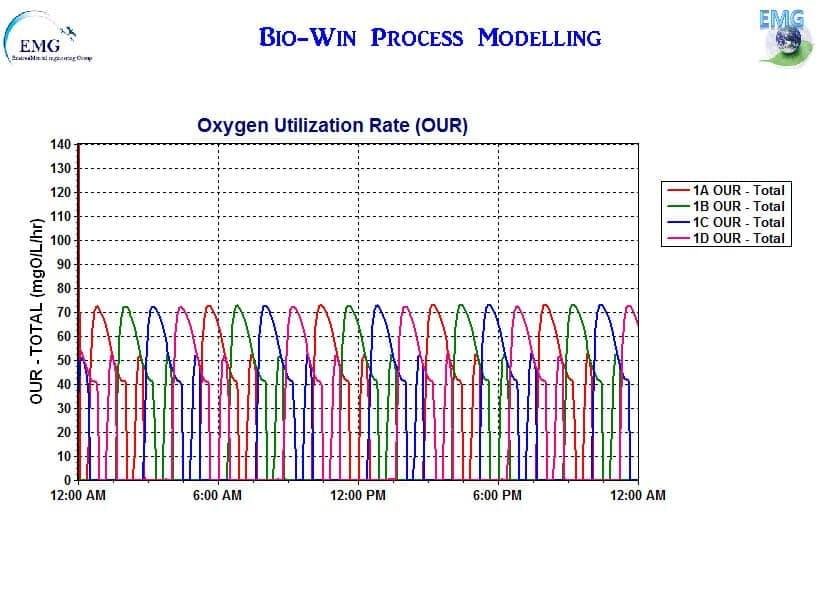

Total oxygen utilisation rate across the four basins over 24 hours, cycling between roughly 40 and 70 mg O₂/L·h.
P.072

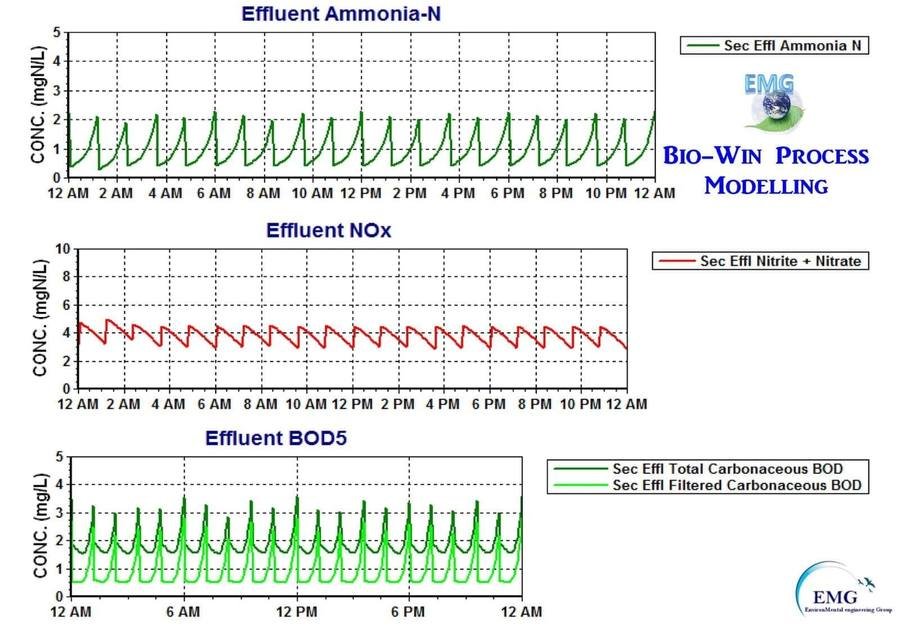

Secondary effluent predicted at roughly 1–2 mg N/L ammonia, 3–5 mg N/L nitrite plus nitrate and 1–3 mg/L carbonaceous BOD across the daily cycle.
P.073

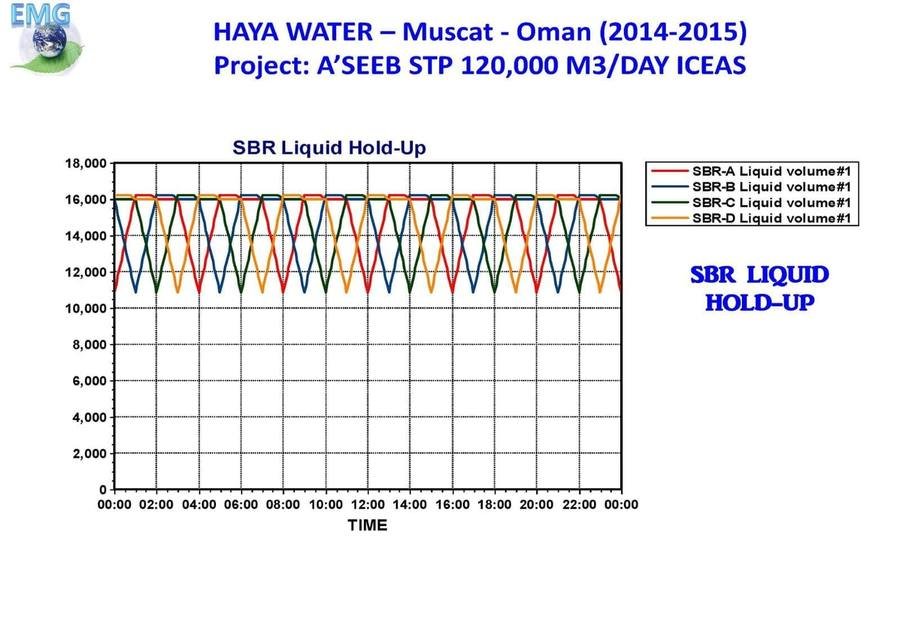

Liquid volume in each of the four basins across the day, filling and decanting between roughly 11,000 and 16,500 m³ on a staggered cycle.
P.074

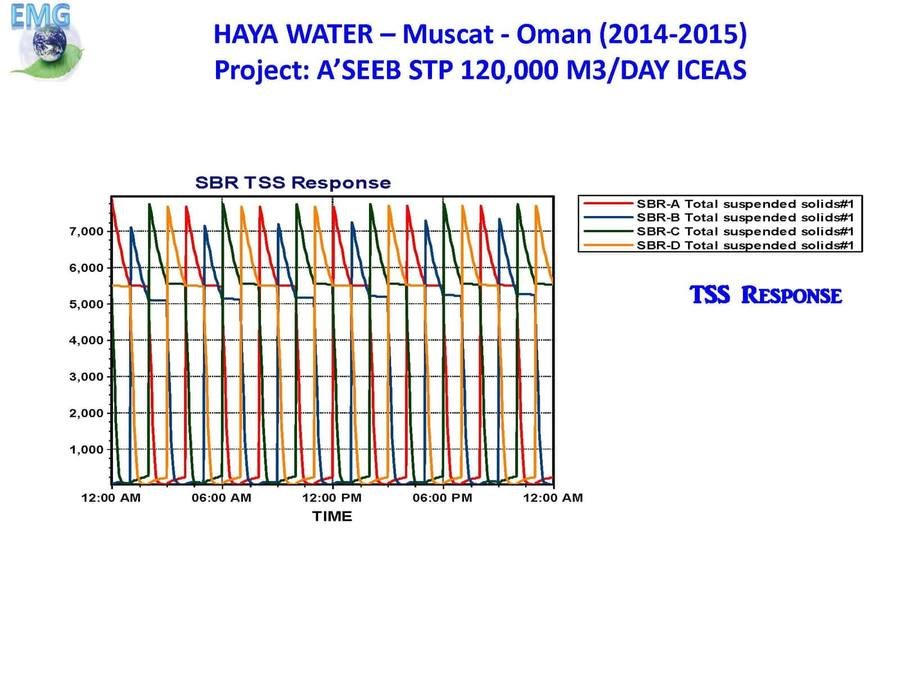

Total suspended solids within each basin through fill, react, settle and decant, peaking near 7,500 mg/L before settlement.
P.075

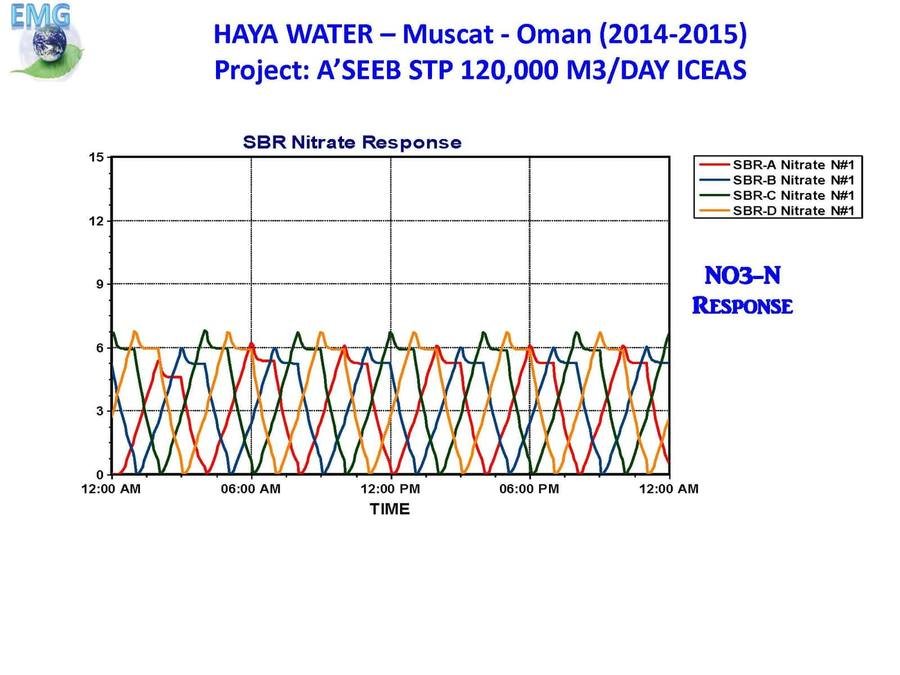

Nitrate nitrogen inside the basins over the cycle, held between about 1 and 7 mg N/L as denitrification follows each aerated phase.
P.076

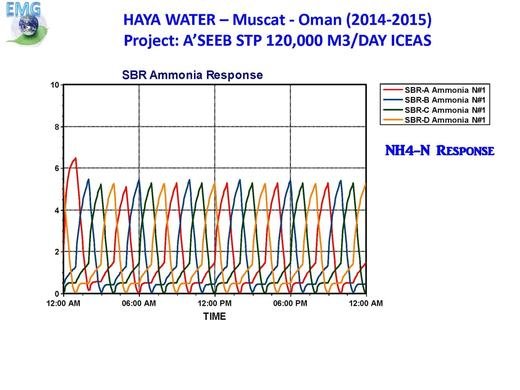

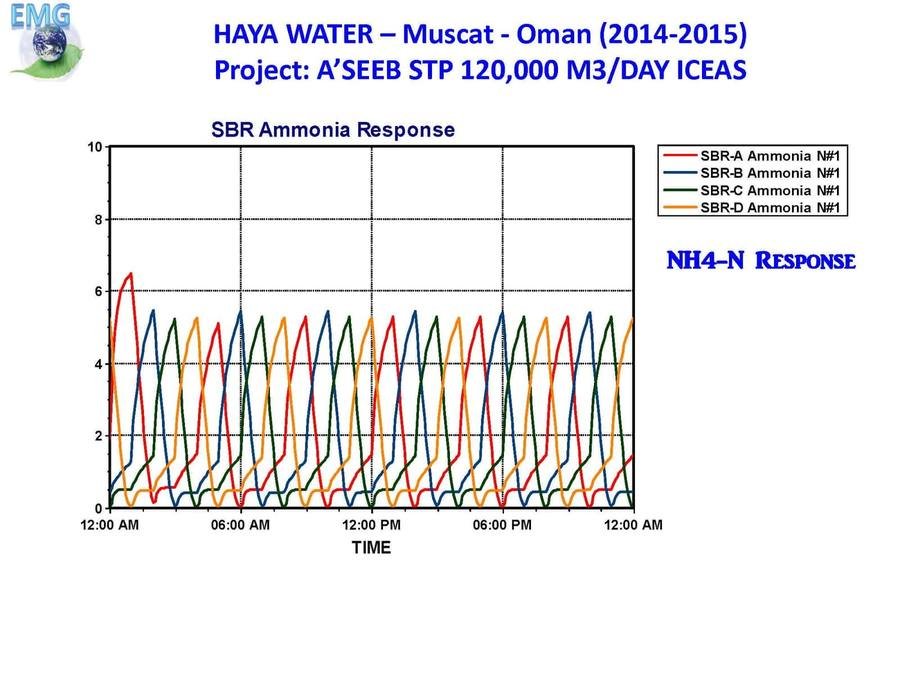

Ammonia nitrogen inside the basins, rising on fill and driven back below 1 mg N/L by the end of each aeration phase.
P.077

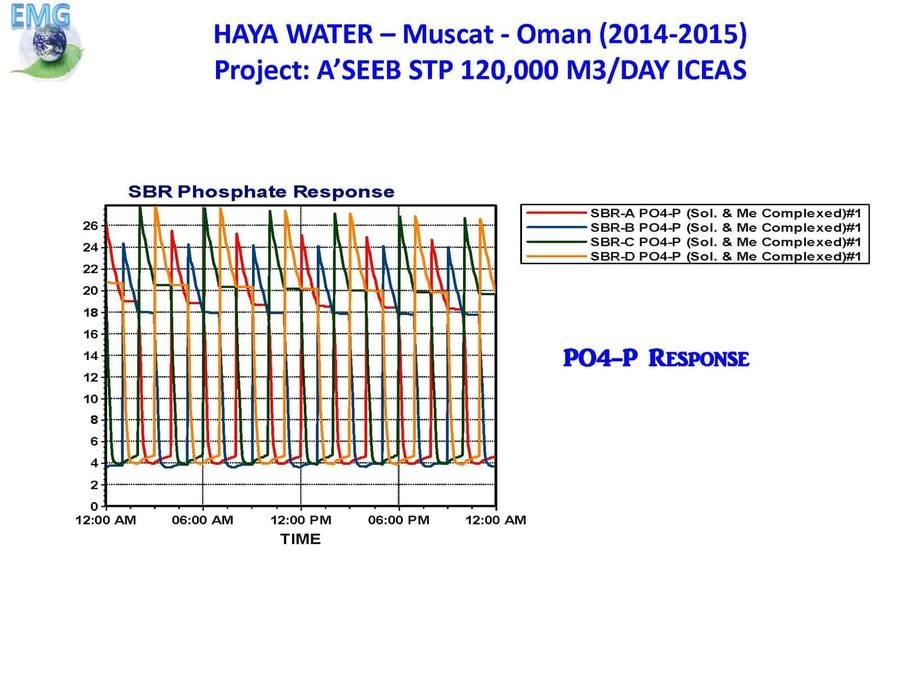

Soluble and metal-complexed phosphate through the cycle, showing anaerobic release to around 24 mg P/L followed by uptake.
P.078

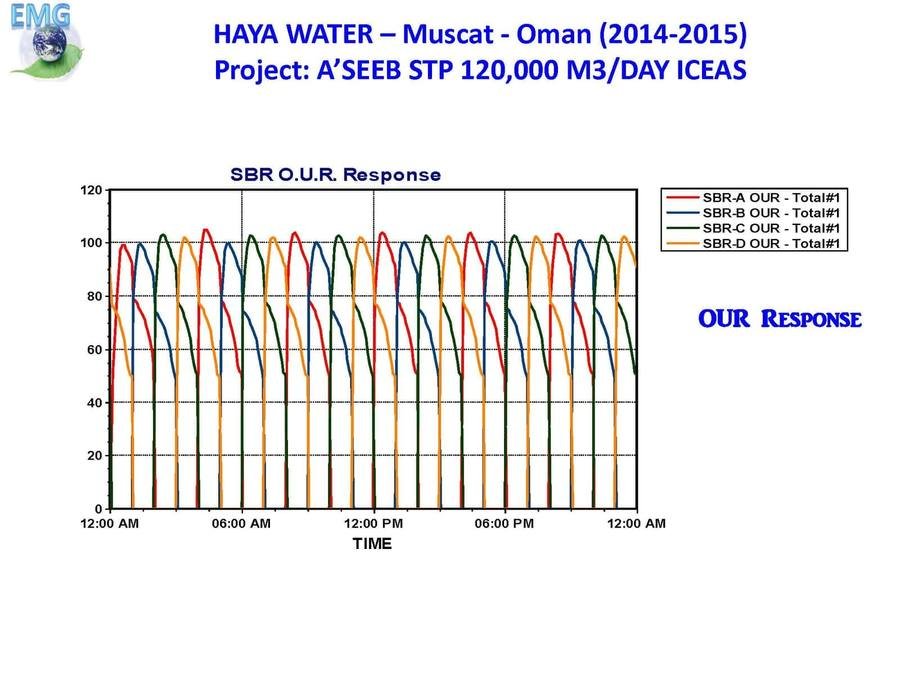

Total oxygen utilisation rate per basin, cycling to roughly 100 mg O₂/L·h at the start of each aerated phase.
P.079

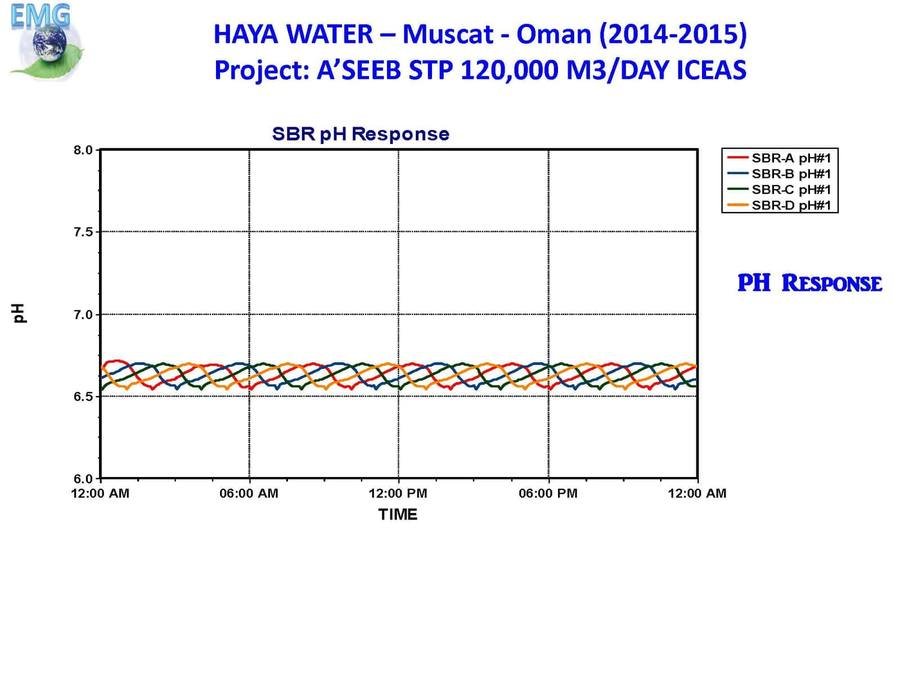

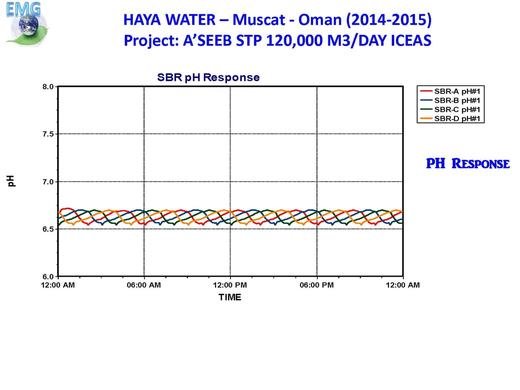

Basin pH held in a narrow band between about 6.5 and 6.7 across the full cycle.
P.080

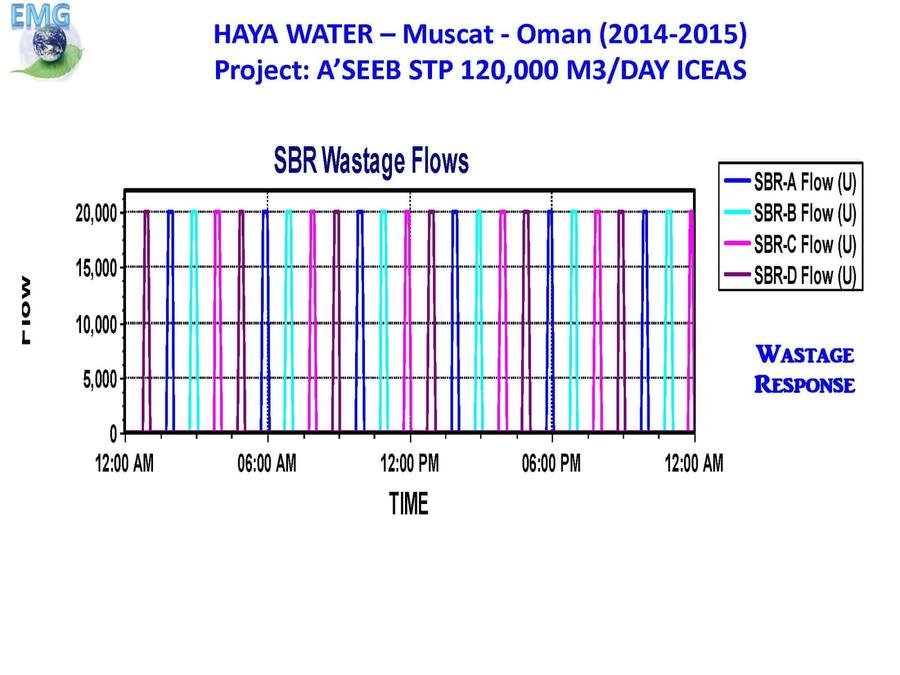

Sludge wastage events from each basin, drawn at around 20,000 units of flow on the staggered batch schedule.
P.081

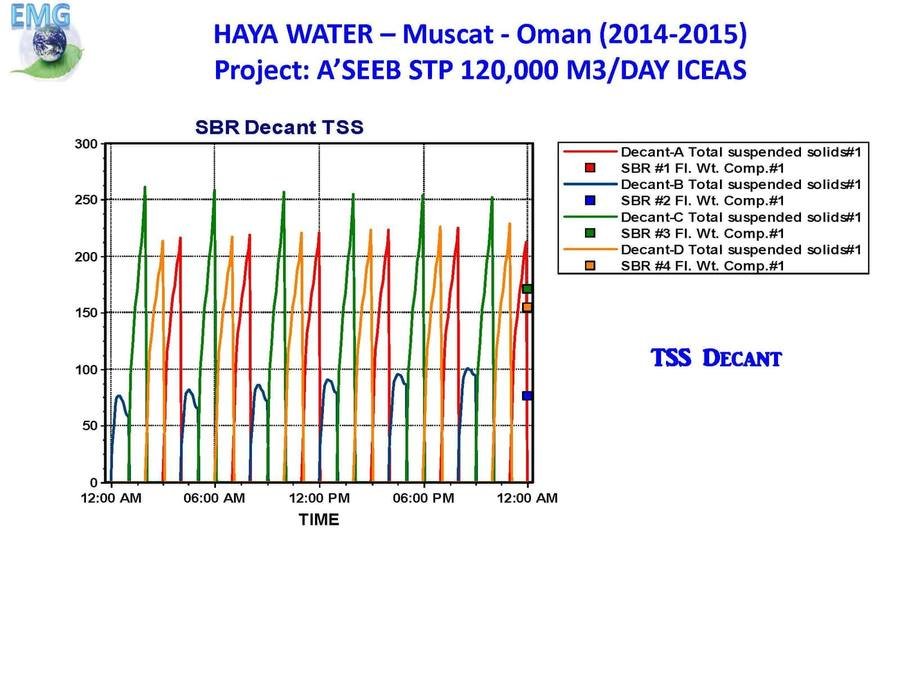

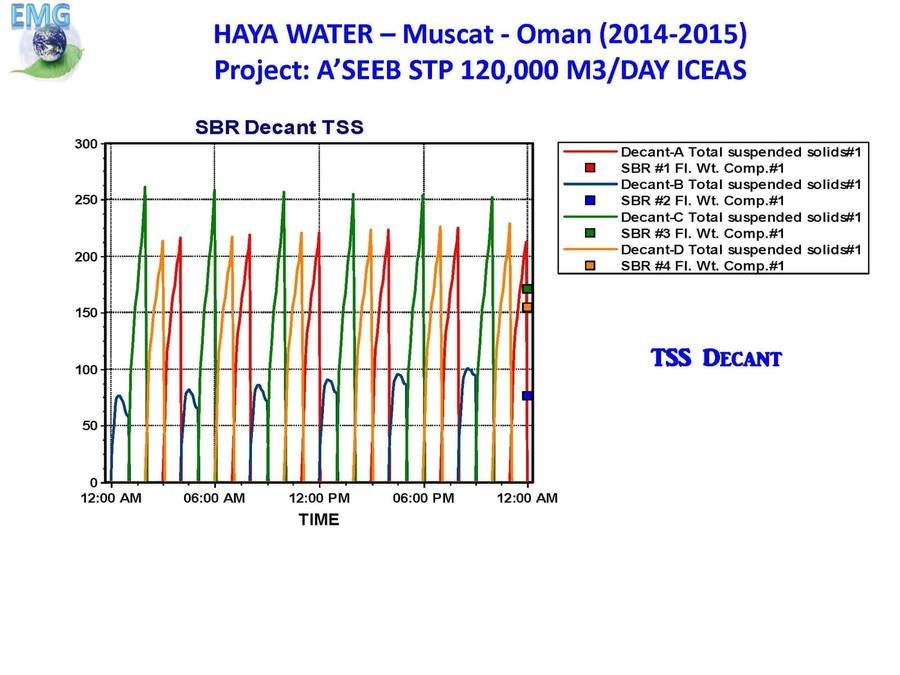

Suspended solids carried over in the decant from each basin, with flow-weighted composite values between roughly 80 and 200 mg/L.
P.082

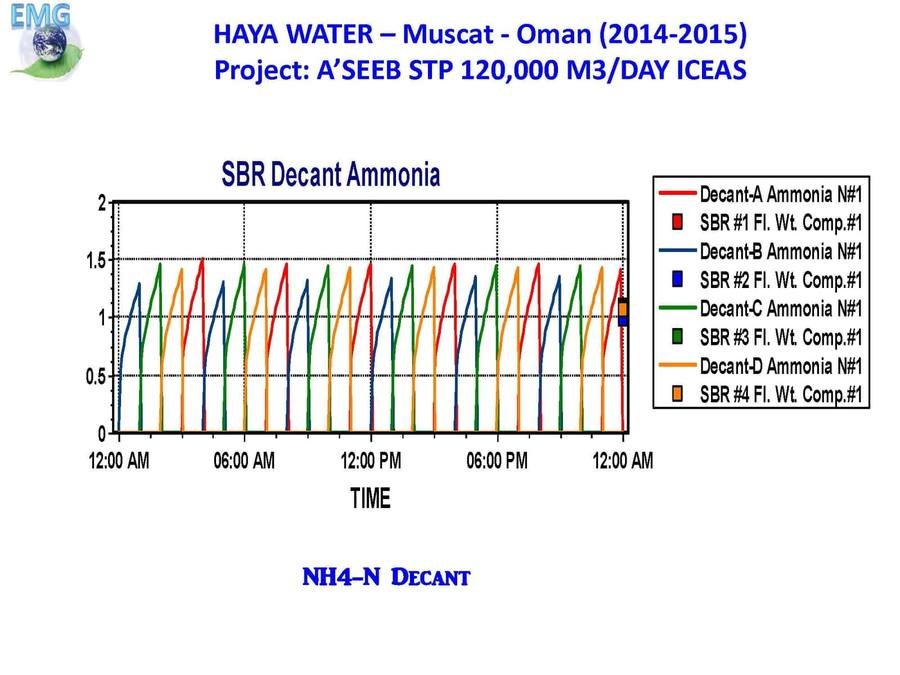

Decant ammonia across the four basins, with flow-weighted composites around 1.0–1.5 mg N/L.
P.083

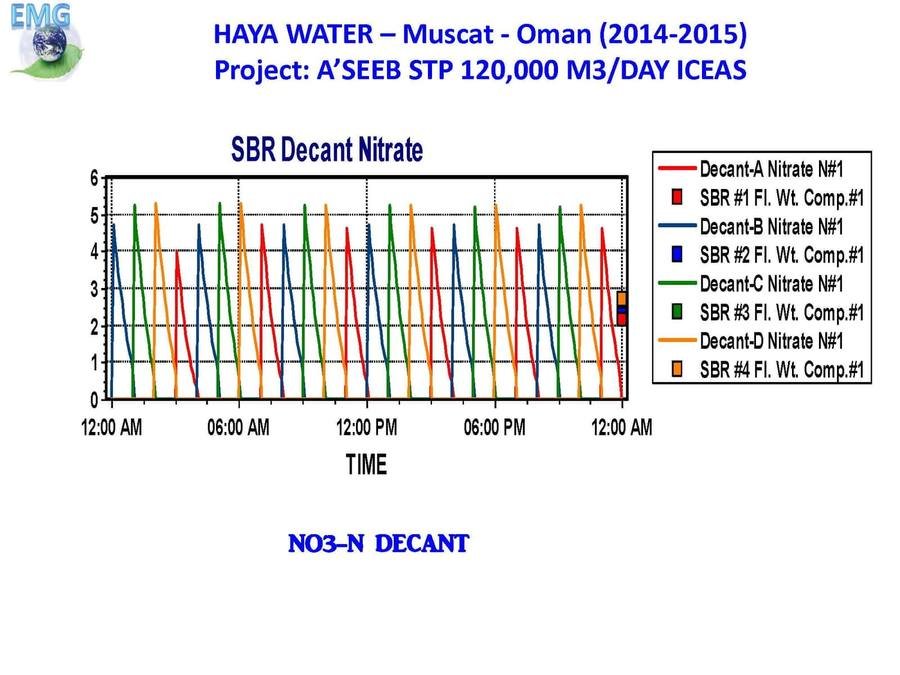

Decant nitrate across the four basins, with flow-weighted composites of roughly 3 mg N/L.
P.084

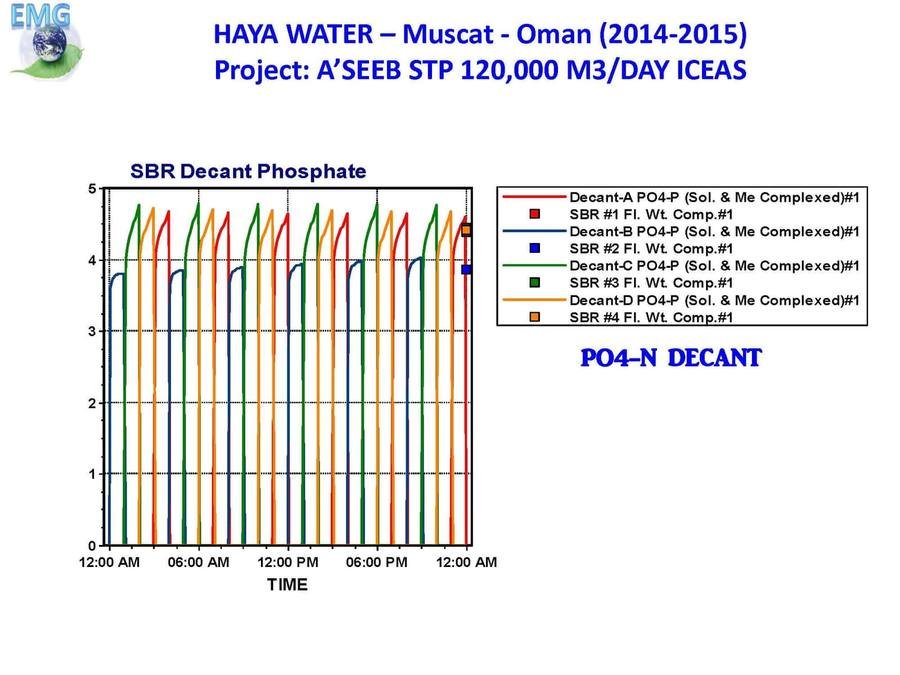

Decant phosphate across the four basins, with flow-weighted composites around 4 mg P/L.
P.085

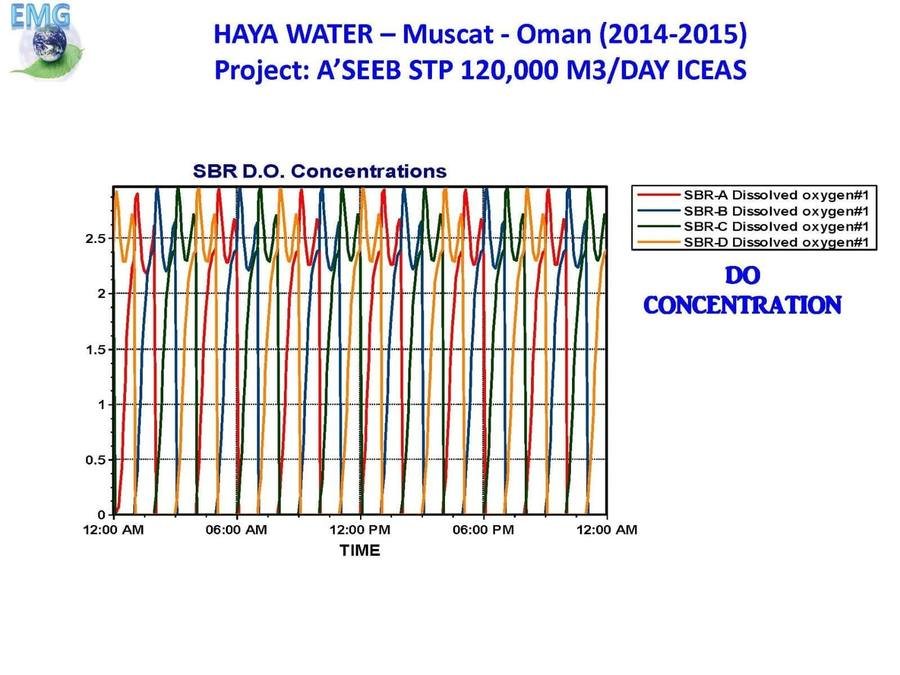

Dissolved oxygen across all four basins on the staggered cycle, swinging between zero and about 2.7 mg/L.
P.086

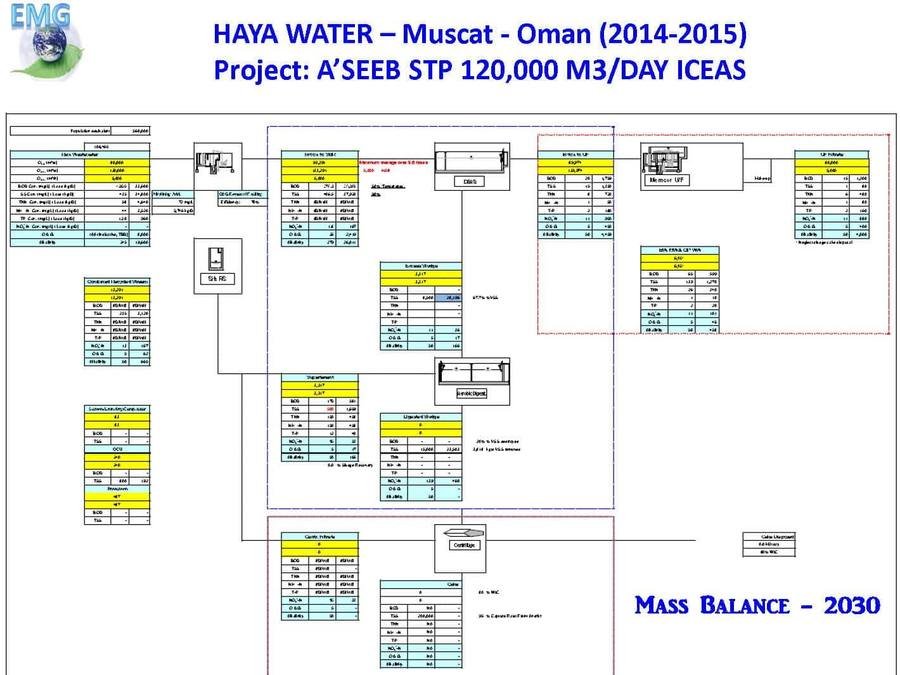

Whole-plant mass balance carried forward to the 2030 design horizon, tracking flow and load through screening, the SBR basins, ultra-filtration, thickening and centrifuge dewatering.
P.087

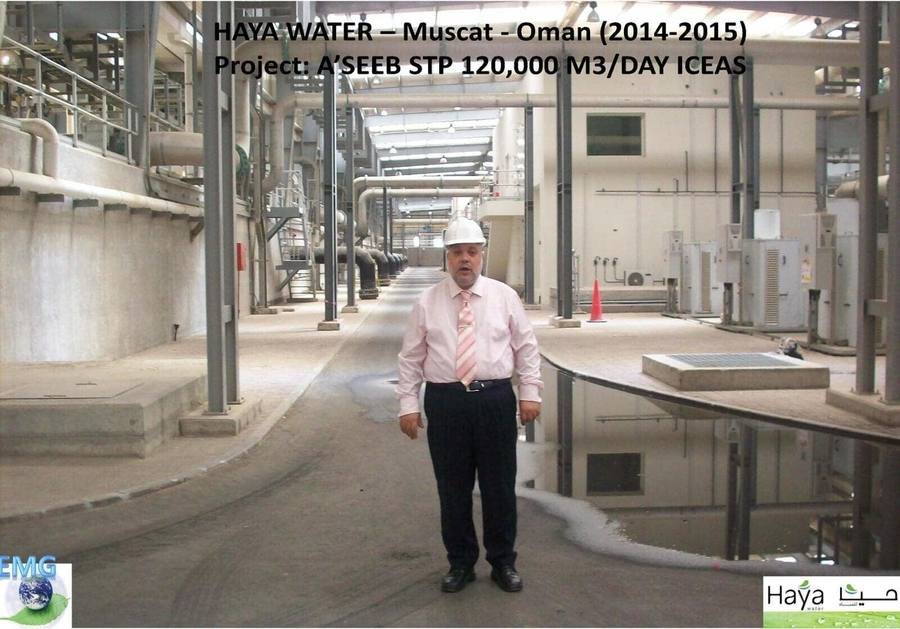

Walkdown of the completed treatment galleries.
P.088

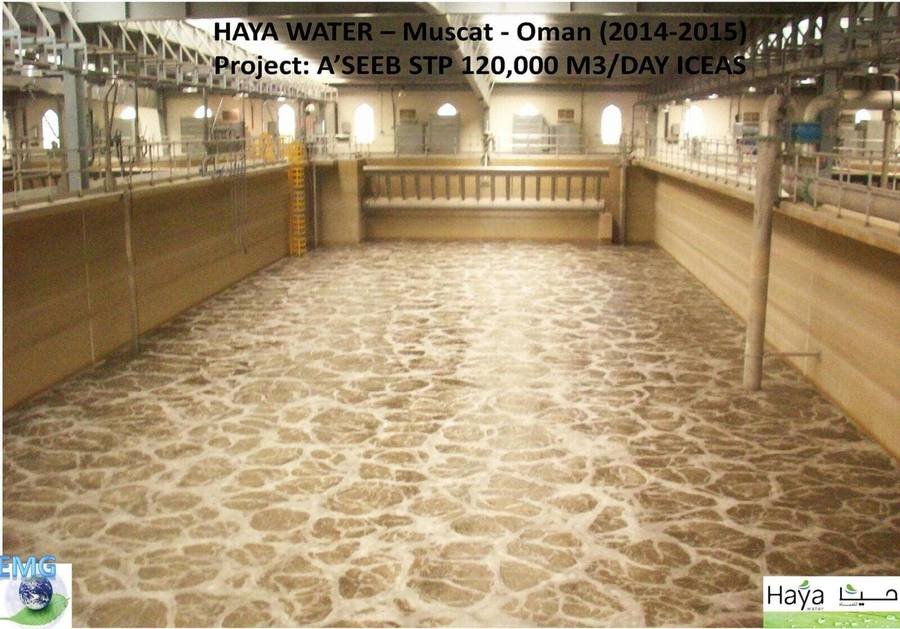

An SBR basin in service, showing the mixed liquor surface during the react phase.
P.089
Commissioning works on the basin deck and decanter equipment.
P.090

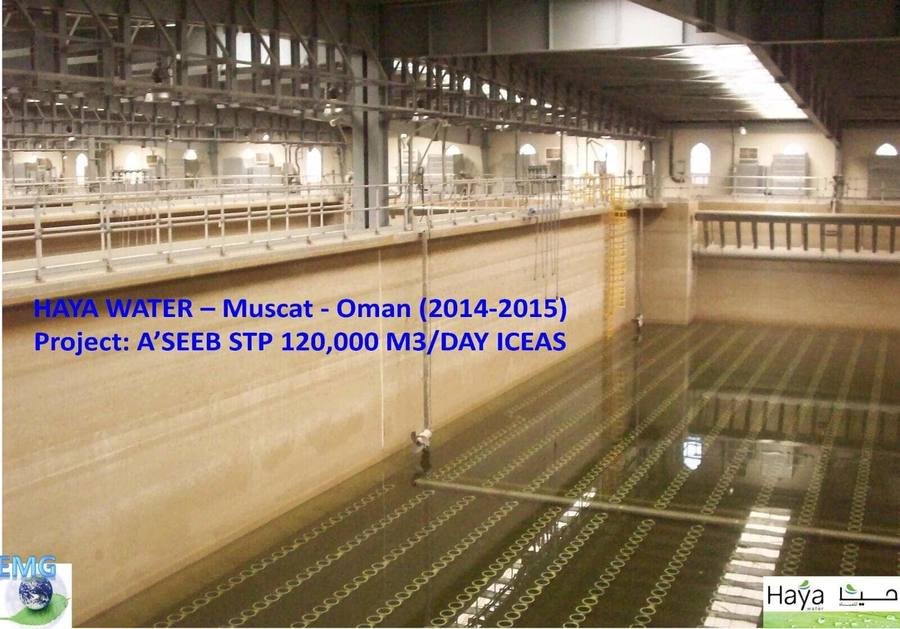

A basin at the end of the settle phase before decanting.
P.091

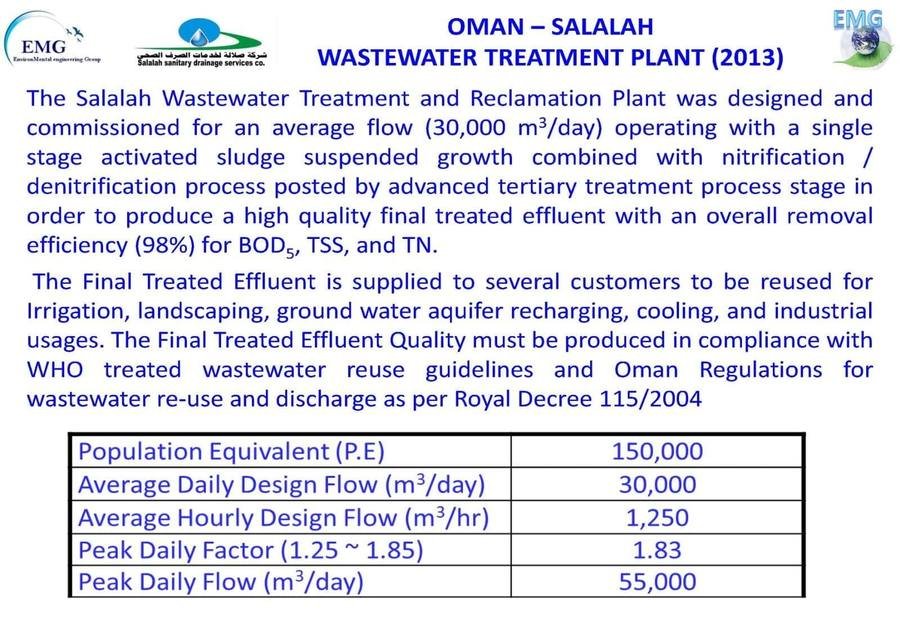

Designed and commissioned for an average flow of 30,000 m³/day using single-stage suspended-growth activated sludge with combined nitrification and denitrification, followed by advanced tertiary treatment, achieving 98 per cent overall removal for BOD₅, TSS and total nitrogen. Final treated effluent is supplied to customers for irrigation, landscaping, groundwater aquifer recharge, cooling and industrial use, and must comply with WHO reuse guidelines and Omani Royal Decree 115/2004. Design basis: 150,000 population equivalent, 30,000 m³/day average daily and 1,250 m³/h average hourly flow, peak daily factor 1.83 giving 55,000 m³/day.
P.092
Design workshops with Salalah Sanitary Drainage Services and site inspection, September 2013.
P.093

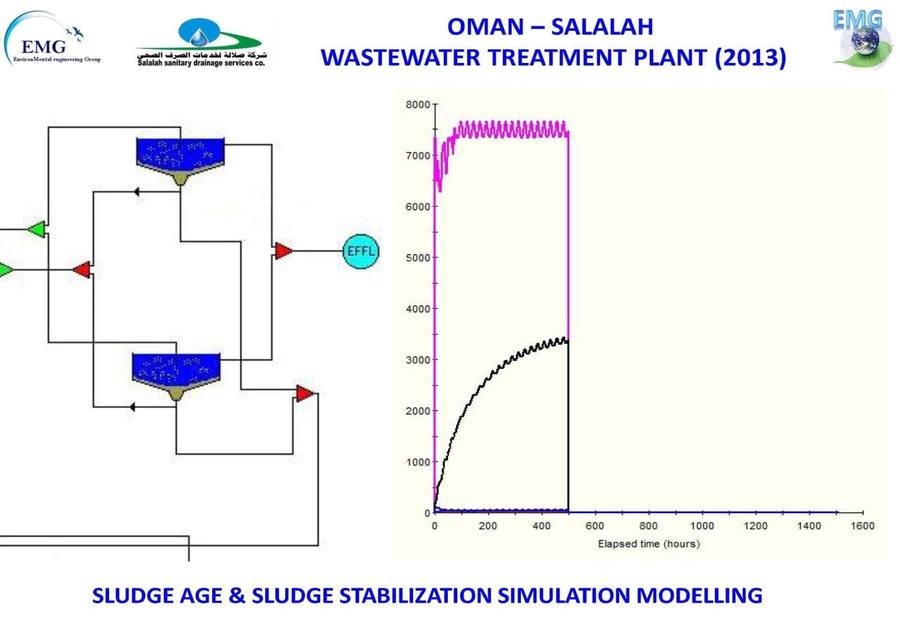

Simulation of sludge age and stabilisation through the process, run out past 1,500 elapsed hours to confirm steady-state solids inventory.
P.094

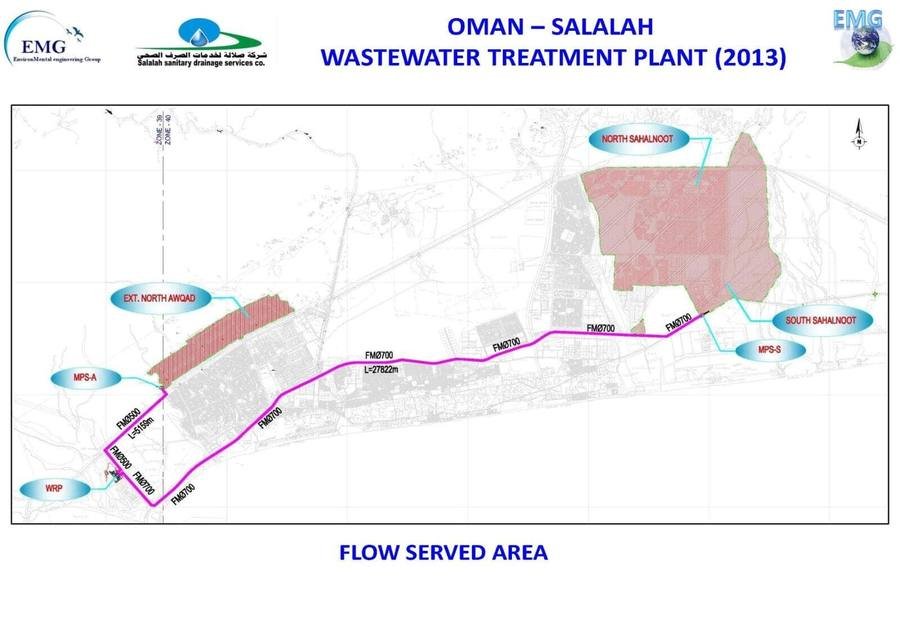

Catchment plan showing the North and South Sahalnoot and North Awqad service areas, the main pumping stations and the force mains to the works.
P.095

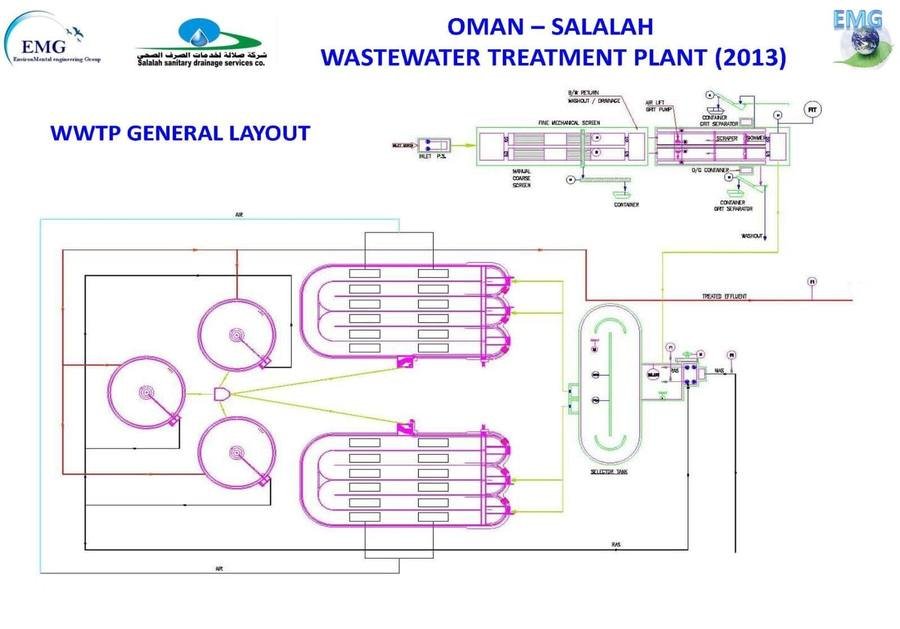

General arrangement from inlet works and mechanical screening through grit separation to the oxidation basins, selector tank and treated effluent outfall.
P.096

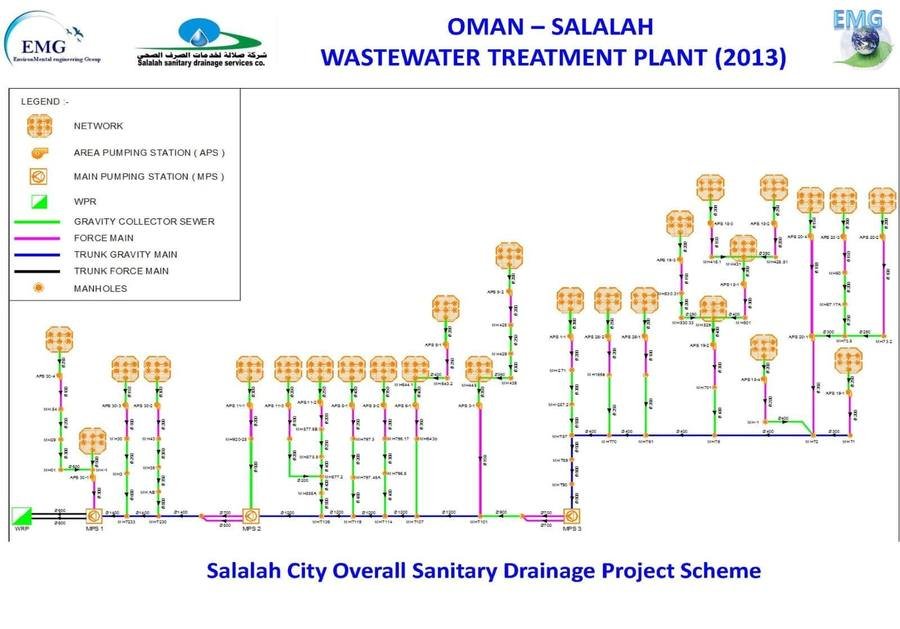

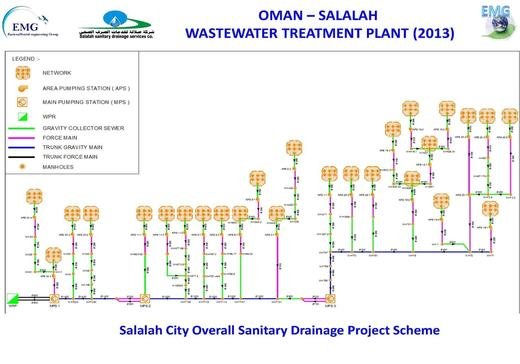

Overall sanitary drainage scheme for the city: gravity collector sewers, trunk gravity and trunk force mains, area and main pumping stations, manholes and the water reclamation plant.

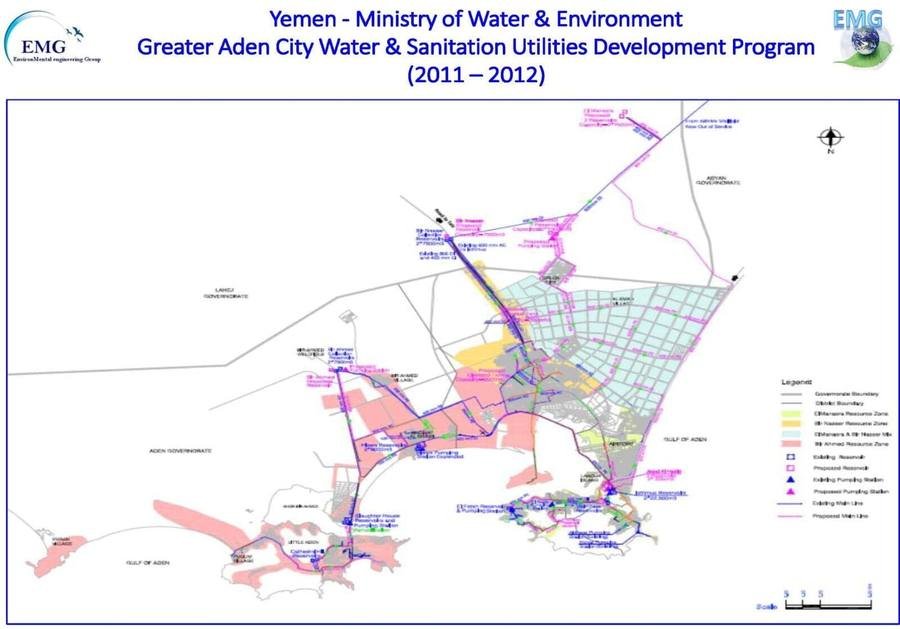

The Greater Aden water and sanitation utilities development programme — hydraulic modelling, impact assessment and institutional study.
P.097
Aden is Yemen's second largest city and, as the country's main seaport, its economic capital, sited at the southern tip of the Arabian Peninsula some 170 km east of the Bab el-Mandeb strait. The Ministry of Planning and International Cooperation, for the Government of Yemen, signed an agreement with the Arab Fund for Economic and Social Development to finance the Aden Water and Sanitation Utilities Development Project, part of a large-scale investment programme for water and wastewater services across Aden Governorate. Greater Aden's total average daily water demand was 3,500 l/s serving a population of 1.5 million.
P.098

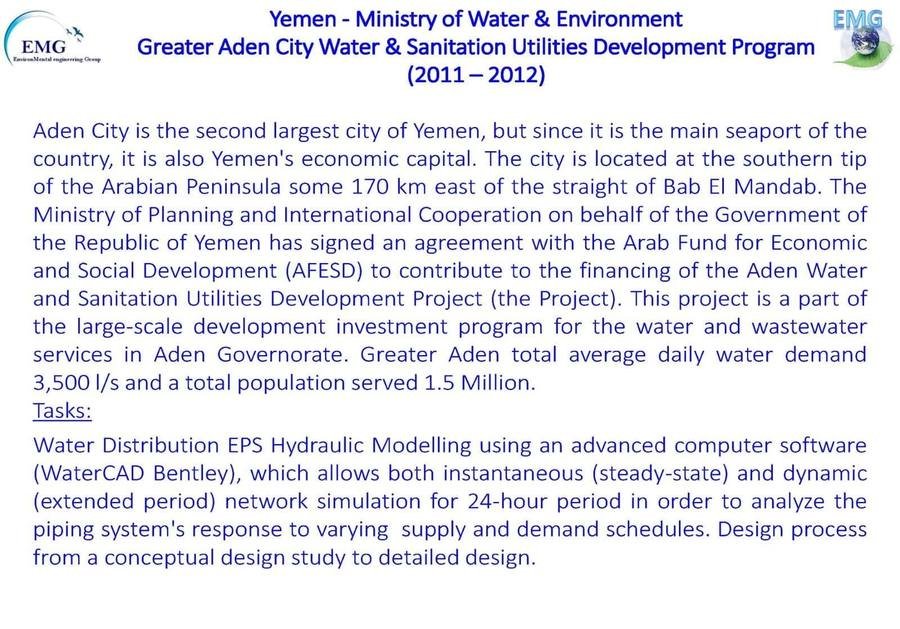

Water distribution extended-period hydraulic modelling in WaterCAD (Bentley), allowing both instantaneous steady-state and dynamic 24-hour network simulation to analyse the piping system's response to varying supply and demand schedules, carried from conceptual design study through to detailed design.
P.099

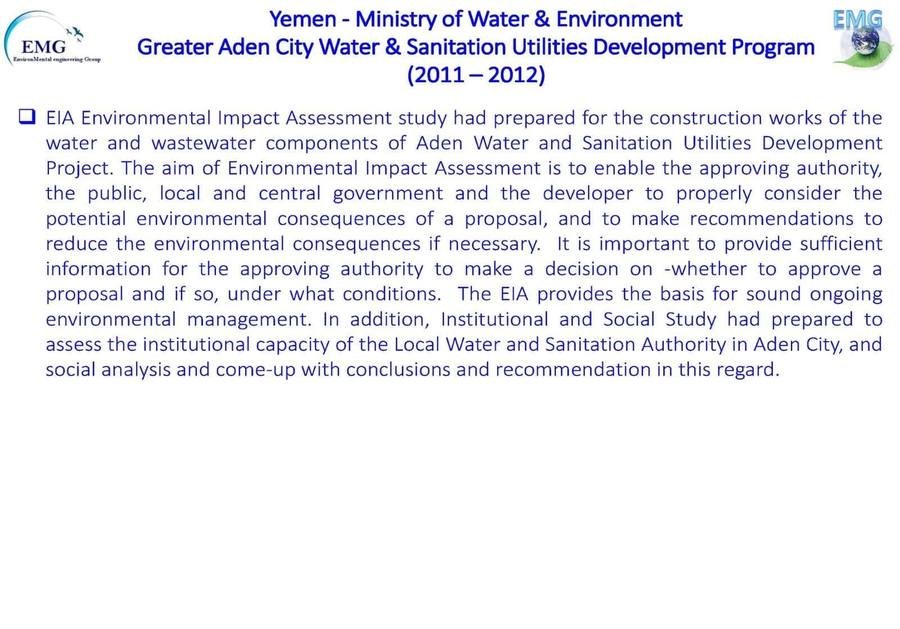

An environmental impact assessment was prepared for the construction works of the water and wastewater components, enabling the approving authority, the public, local and central government and the developer to consider the potential environmental consequences of the proposal and to recommend mitigation — providing the basis for sound ongoing environmental management. An institutional and social study was also prepared to assess the capacity of the Local Water and Sanitation Authority in Aden City.
P.100

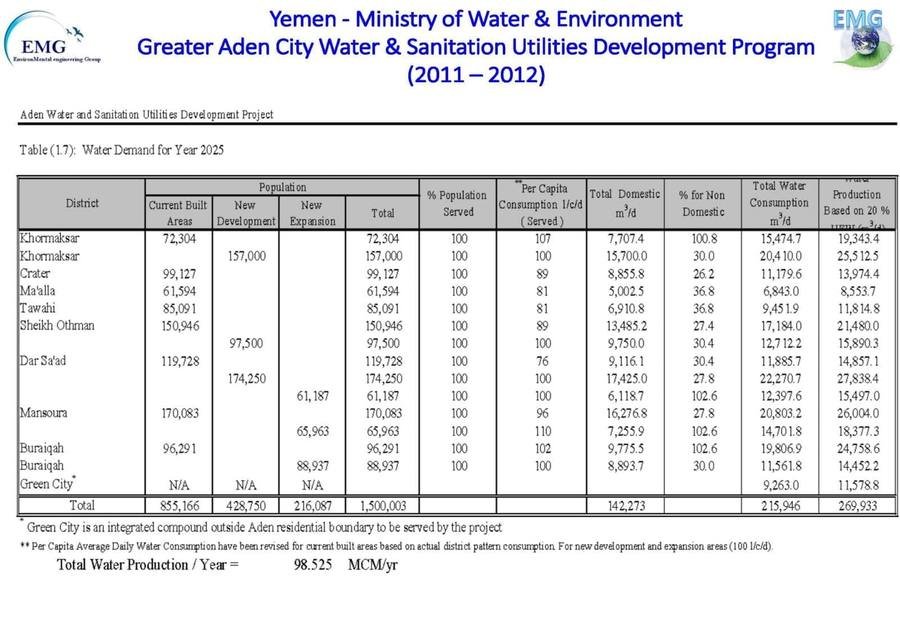

District-by-district water demand projection for 2025 across Khormaksar, Crater, Ma'alla, Tawahi, Sheikh Othman, Dar Sa'ad, Mansoura, Buraiqah and Green City — a served population of 1,500,003 and total water production of 98.525 million m³/year, allowing 20 per cent losses.
P.101

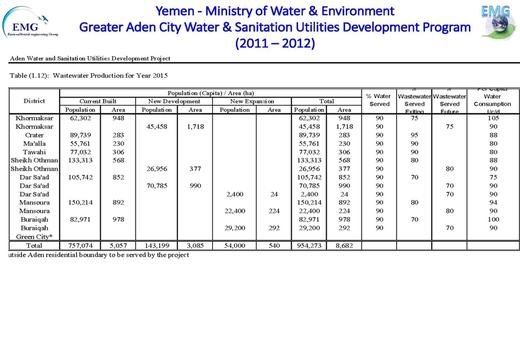

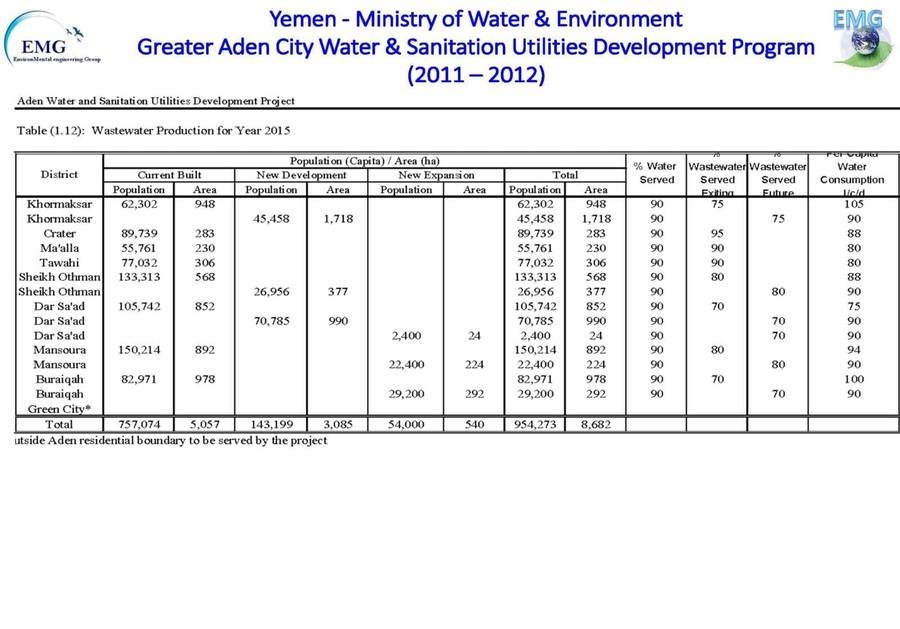

Wastewater production by district for 2015 across current built, new development and new expansion areas — a total population of 954,273 over 8,682 ha, with 90 per cent water served and per-capita consumption between 75 and 105 l/c/d.
P.102
Field reconnaissance across the governorate with the local water and sanitation authority, December 2011.
P.103
Project signage recording the financing by the Republic of Germany through KfW, the joint-venture consultant with Dorsch Germany and the contractor, together with laboratory and site visits.
P.104
Survey of the coastline, existing outfalls and wastewater ponding, with stakeholder meetings.
P.105
Consultation sessions with the utility and community representatives, December 2011 to January 2012.
P.106

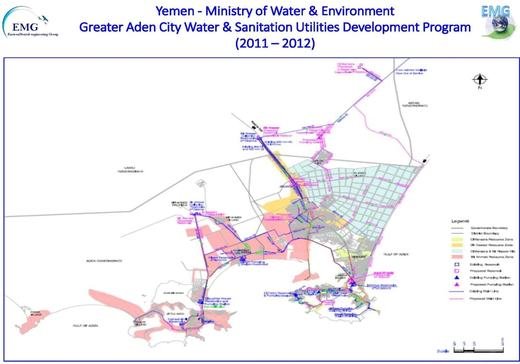

Governorate-scale plan of the Bir Nasser, Bir Ahmed and other water resource zones with existing and proposed reservoirs, pumping stations and main lines around the Gulf of Aden.
P.107

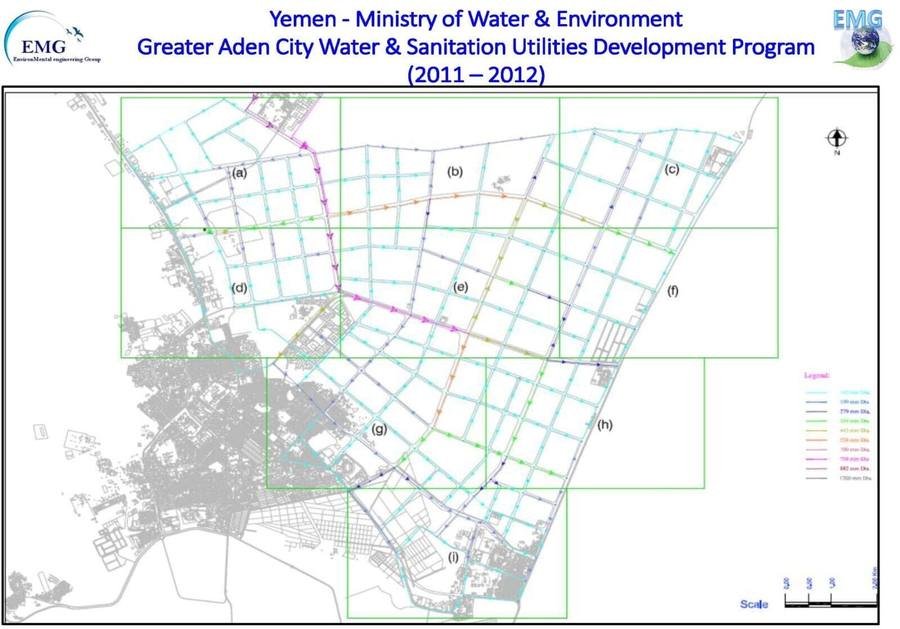

City distribution network modelled by district zone, with pipe diameters from 100 mm to 1,100 mm colour-coded across the modelled area.
P.108

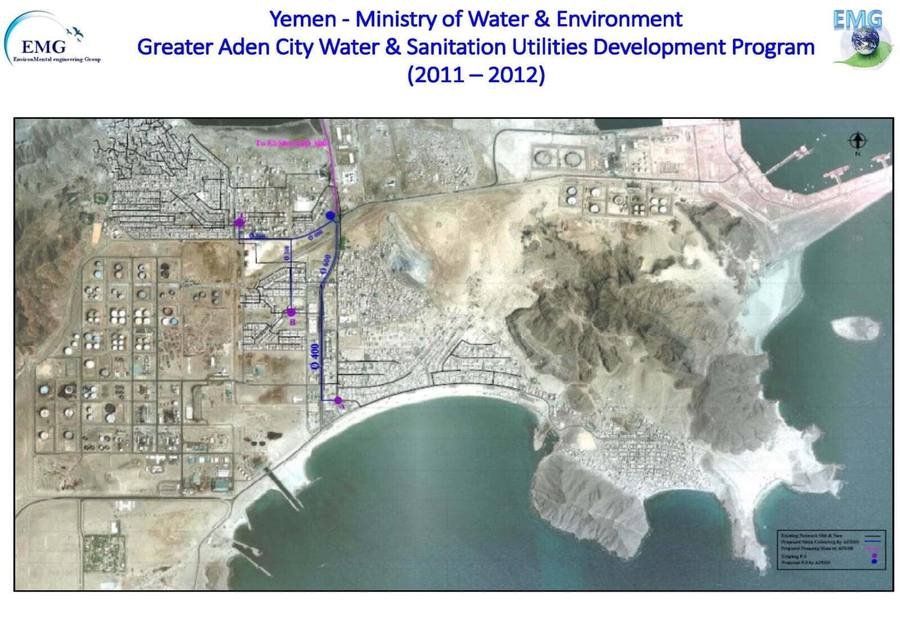

Proposed transmission mains, pumping stations and reservoir sites overlaid on satellite imagery of the peninsula.
P.109

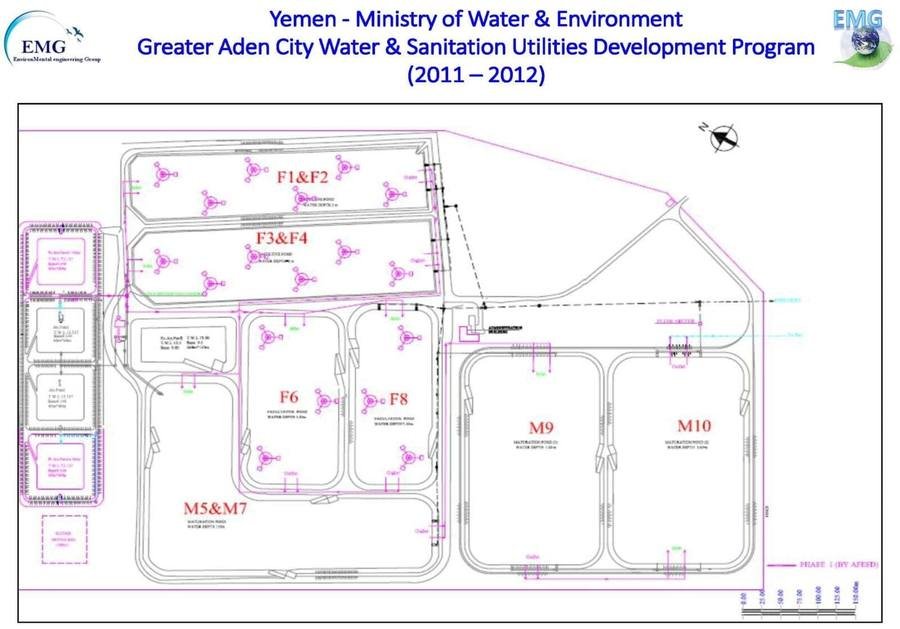

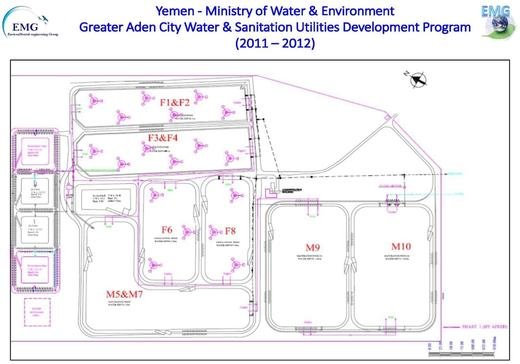

General arrangement of the treatment ponds, showing facultative cells F1–F8 and maturation cells M5–M10 with their inlet and outlet arrangements.
P.110

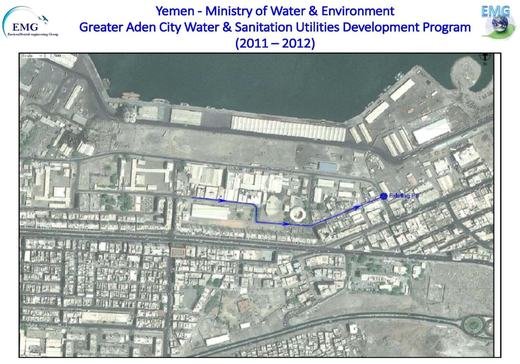

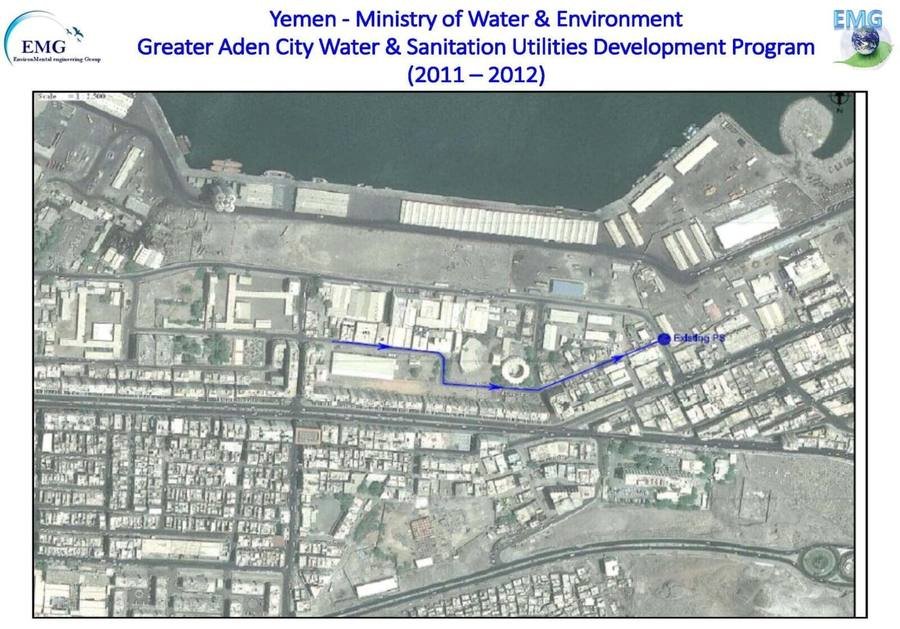

Satellite plan locating the existing pumping station and its connection through the port district.
P.111

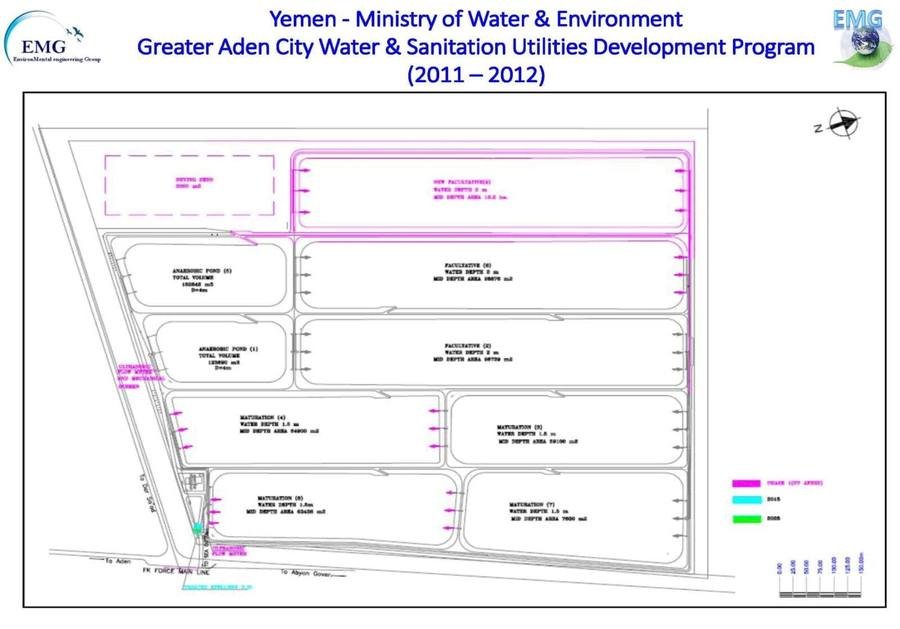

Pond layout with design parameters marked for each cell — anaerobic ponds by total volume, and facultative and maturation ponds by water depth and mid-depth area.
P.112

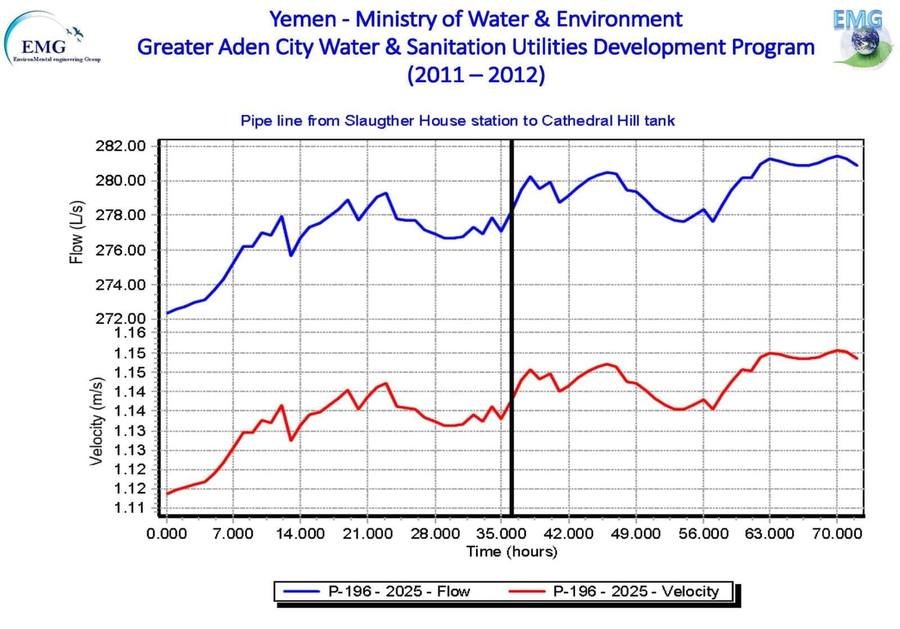

Modelled flow and velocity in the pipeline from Slaughter House station to Cathedral Hill tank for the 2025 scenario, running about 272–281 l/s at 1.11–1.16 m/s over a 70-hour simulation.
P.113

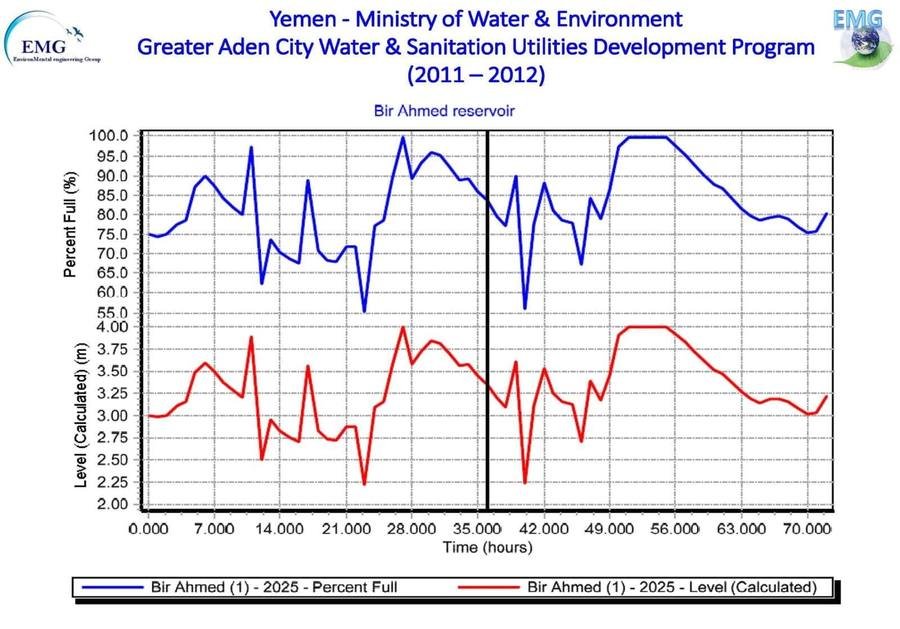

Bir Ahmed reservoir level and percentage full through the 2025 extended-period run, cycling between roughly 55 and 100 per cent full at 2.25–4.00 m depth.
P.114

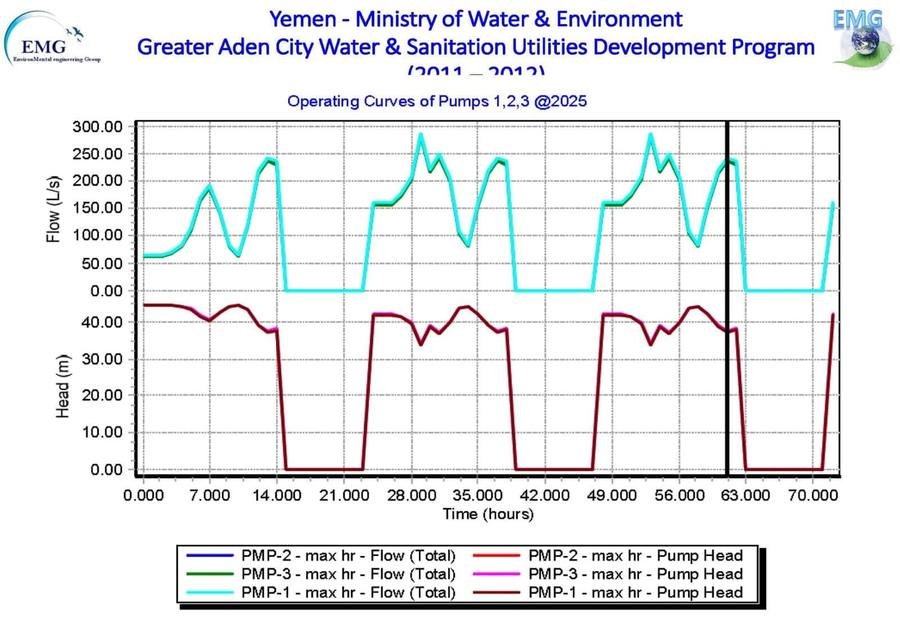

Operating curves for pumps 1, 2 and 3 in the 2025 scenario, showing duty flows up to about 250 l/s against heads around 40 m as units cycle in and out.
P.115

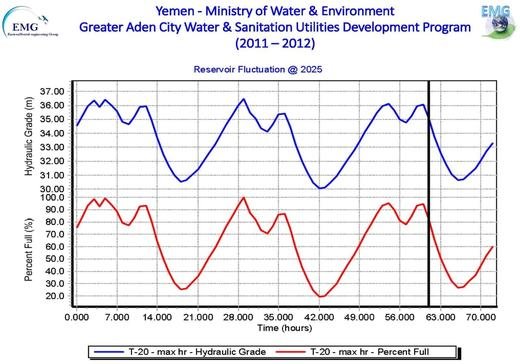

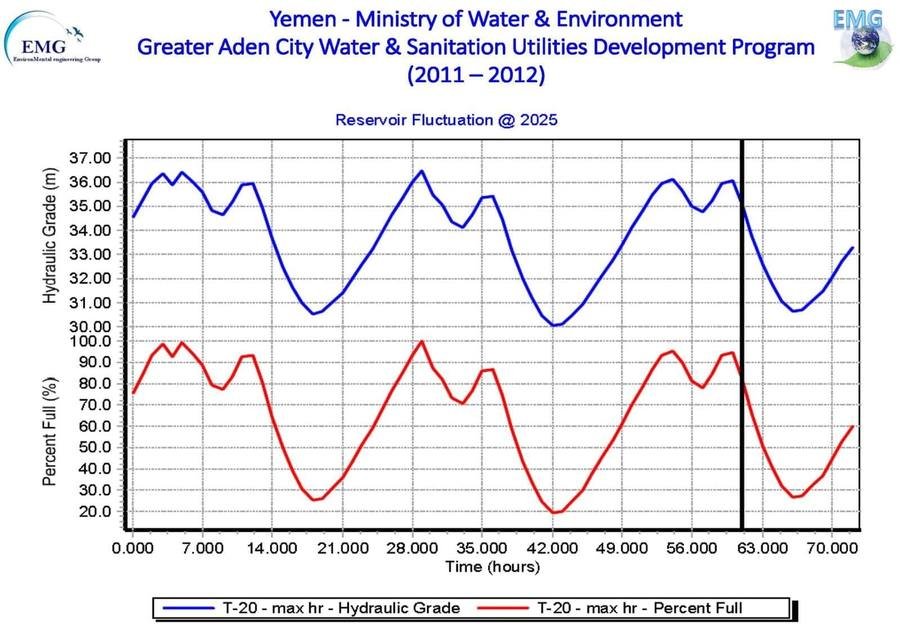

Hydraulic grade and percentage full for reservoir T-20 across the maximum-hour 2025 scenario, drawing down to about 20 per cent on the daily cycle.
P.116

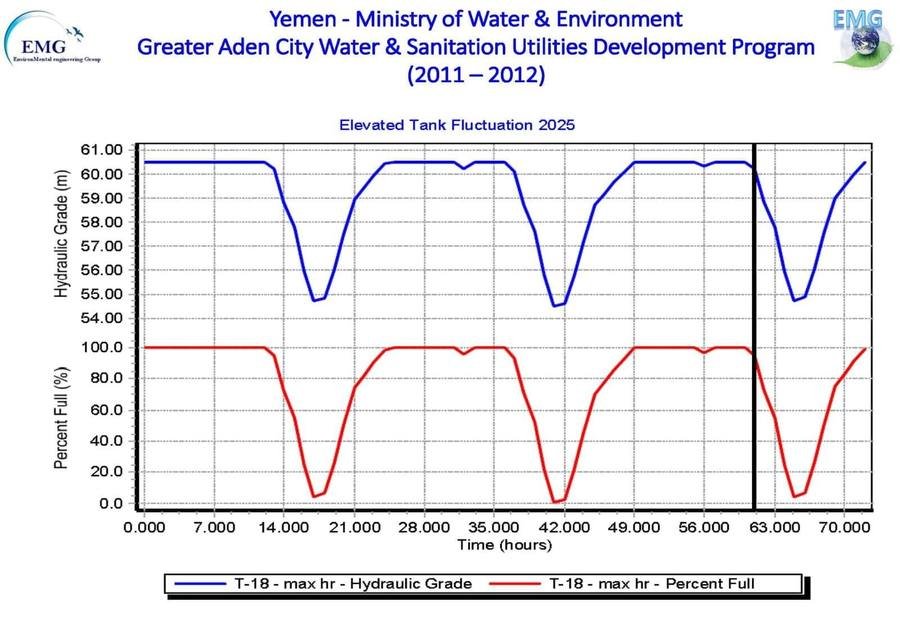

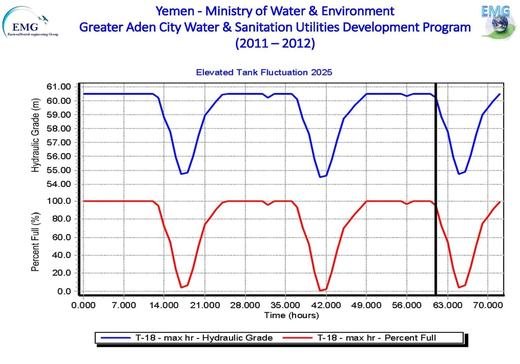

Elevated tank T-18 behaviour, holding full for long periods with sharp draw-down events to near empty — a pattern indicating supply scheduling rather than continuous operation.
National programmes at home, including the EBRD-financed water pollution control works around Qarun Lake and the Armed Forces national services projects.
P.030

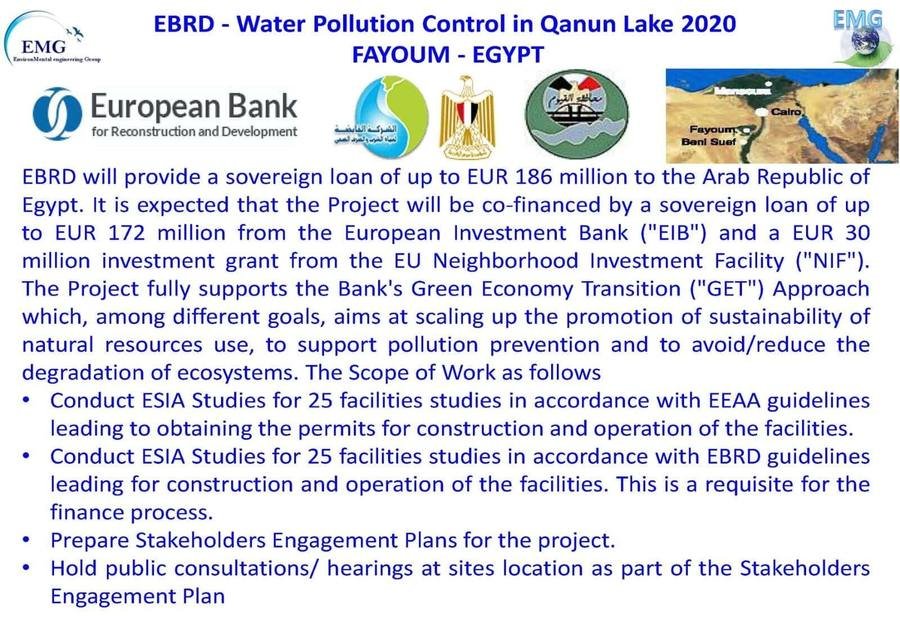

EBRD provided a sovereign loan of up to EUR 186 million to Egypt, co-financed by up to EUR 172 million from the European Investment Bank and a EUR 30 million investment grant from the EU Neighbourhood Investment Facility, supporting the Bank's Green Economy Transition approach. Scope included ESIA studies for 25 facilities to EEAA guidelines for construction and operation permits, the same studies to EBRD guidelines as a requisite of the finance process, stakeholder engagement plans, and public consultations and hearings at site locations.
P.031
Programme meeting with the Fayoum authorities.
P.032

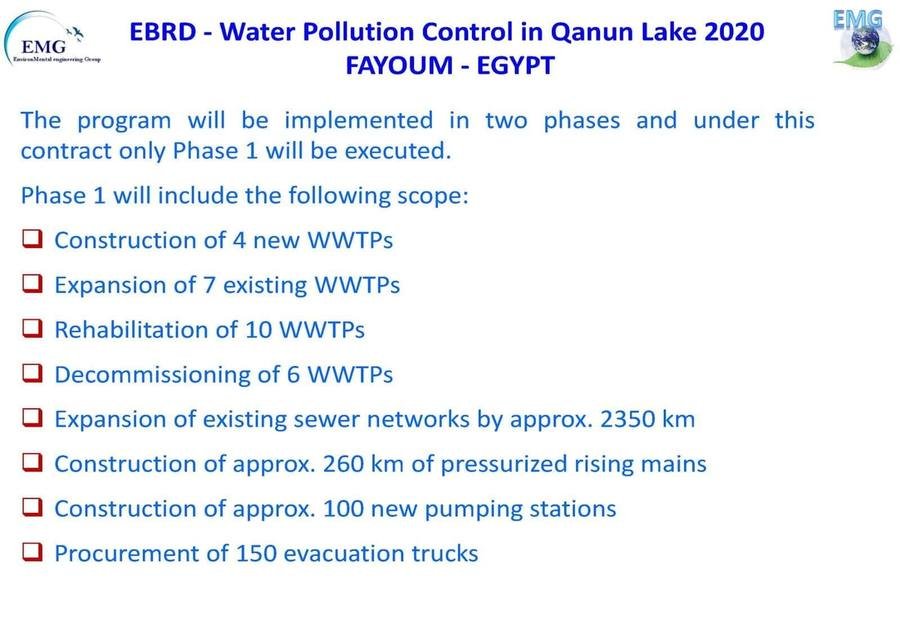

Delivered in two phases, with Phase 1 under this contract: construction of 4 new wastewater treatment plants, expansion of 7 existing plants, rehabilitation of 10, decommissioning of 6, expansion of the sewer network by approximately 2,350 km, construction of approximately 260 km of pressurised rising mains and around 100 new pumping stations, and procurement of 150 evacuation trucks.
P.033

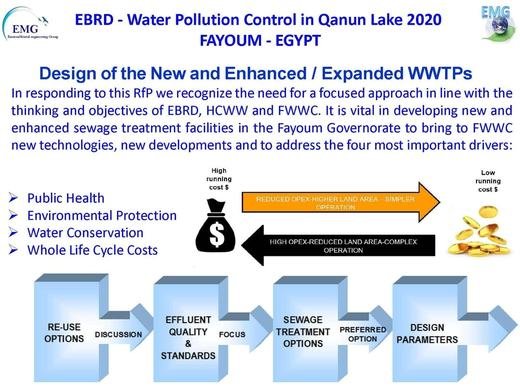

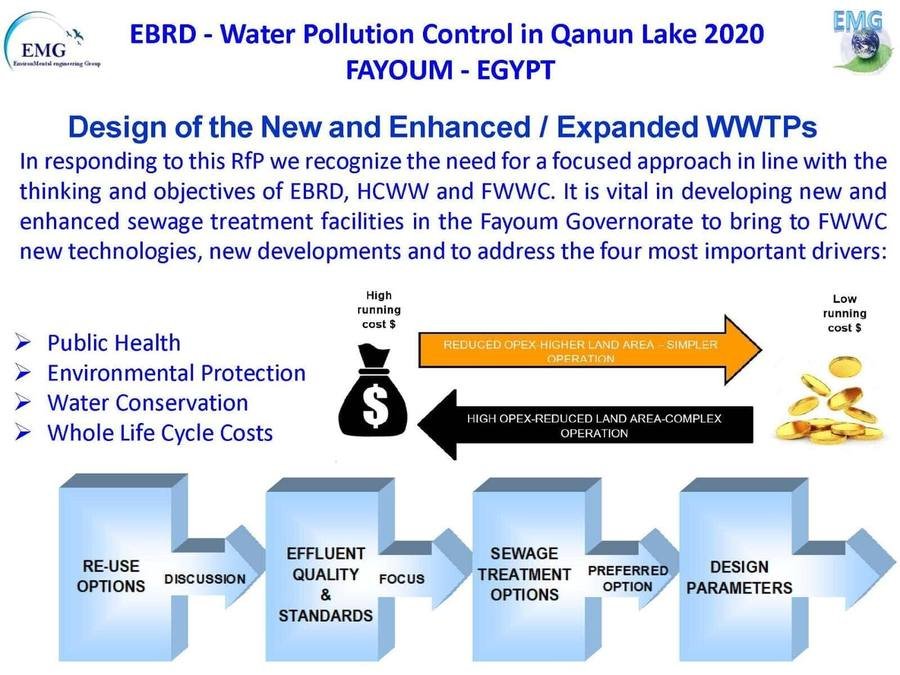

Design of new and enhanced plants for FWWC addressed four drivers — public health, environmental protection, water conservation and whole-life-cycle cost — trading reduced OPEX and higher land area with simpler operation against high OPEX, reduced land area and complex operation.
P.034

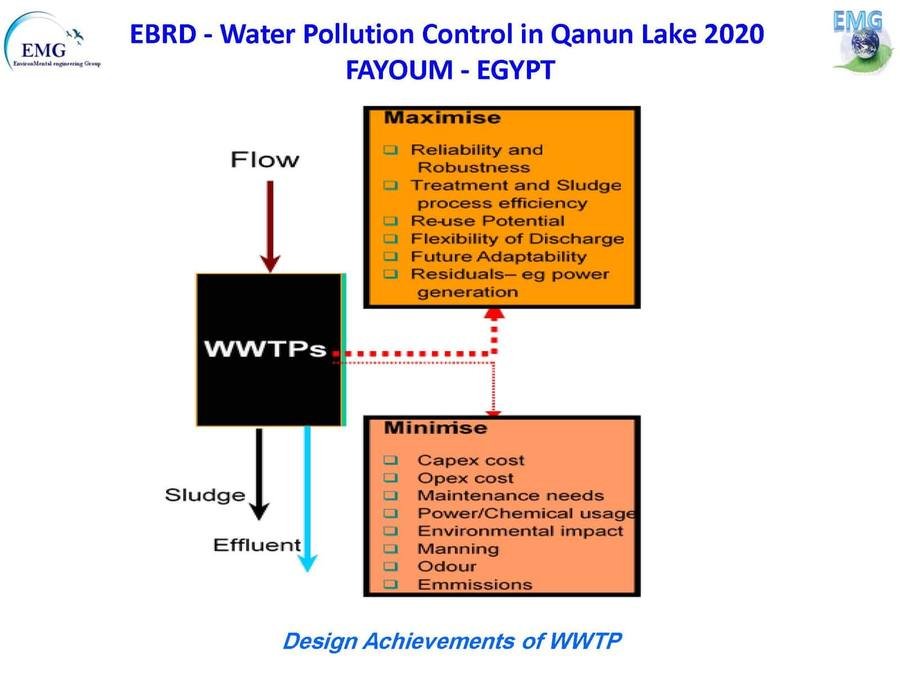

The plants were set to maximise reliability and robustness, treatment and sludge process efficiency, reuse potential, flexibility of discharge, future adaptability and residuals such as power generation; and to minimise capital and operating cost, maintenance, power and chemical use, environmental impact, manning, odour and emissions.
P.035

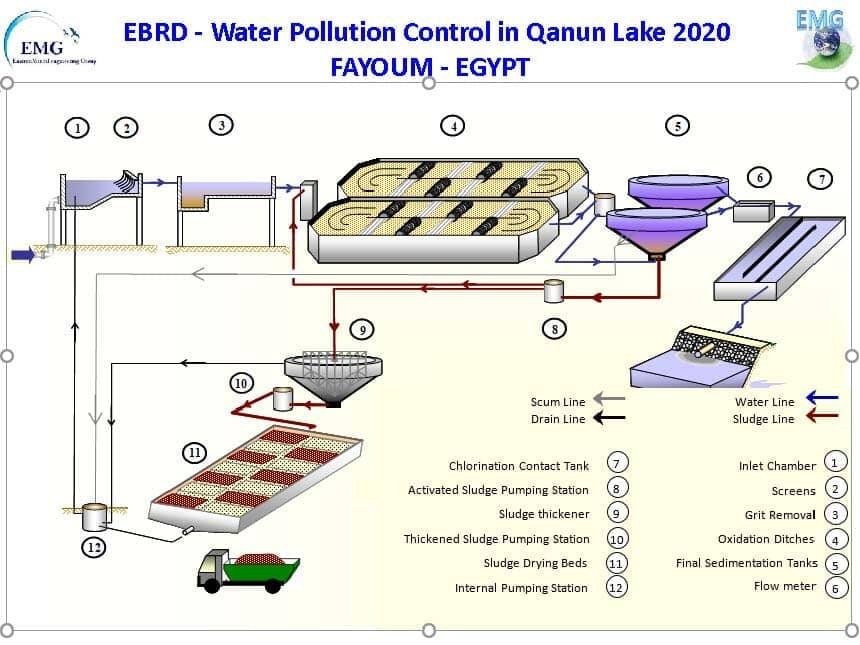

Treatment train from inlet chamber, screens and grit removal through oxidation ditches and final sedimentation to the chlorination contact tank and flow meter, with activated and thickened sludge pumping, sludge thickener, drying beds and internal pumping station.
P.036

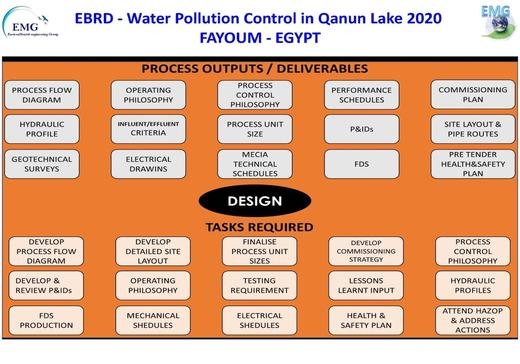

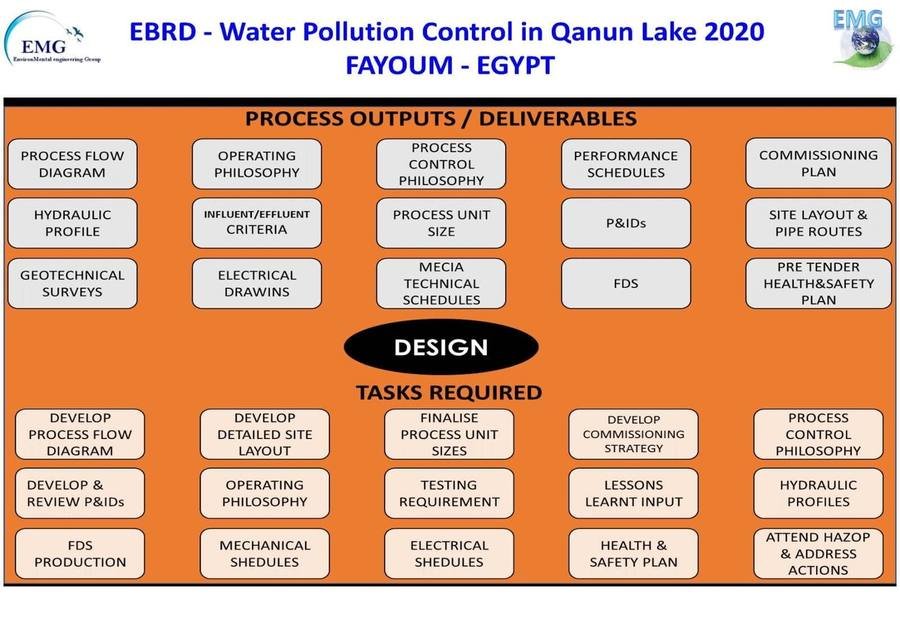

Outputs spanned process flow diagrams, hydraulic profiles, geotechnical surveys, operating and process control philosophies, influent and effluent criteria, electrical drawings, process unit sizing, mechanical technical schedules, P&IDs, FDS, performance schedules, commissioning plan, site layout and pipe routes, and a pre-tender health and safety plan — with HAZOP attendance and action closure among the required tasks.
P.037

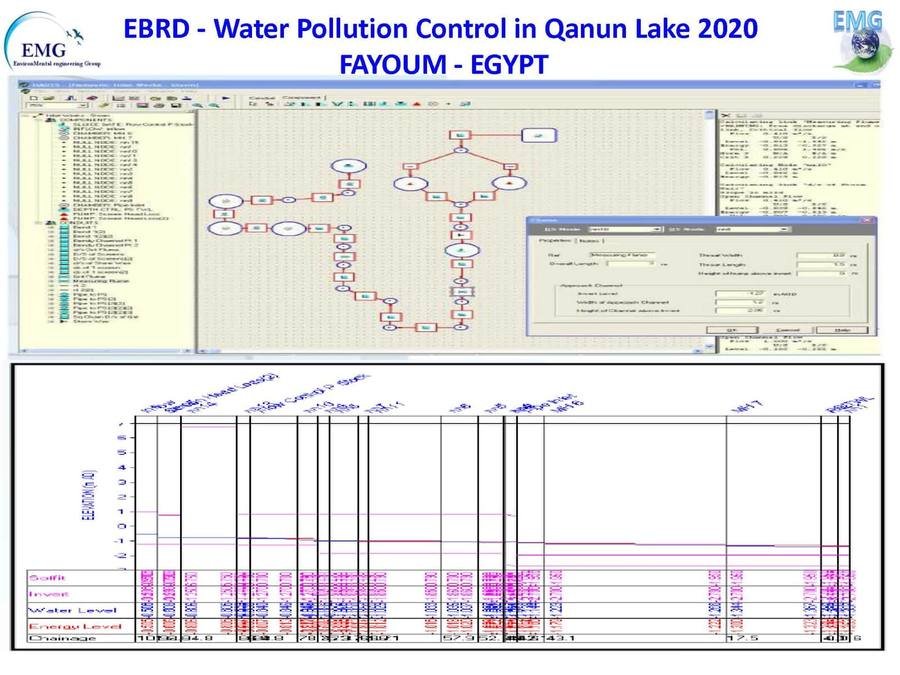

Network model and hydraulic profile through the works, tracking soffit, invert, water level and energy level across the drainage chain.
P.038
Planning, execution and completion of awarded projects to strict deadlines and budget, acquiring resources and coordinating team and third-party effort. Works included Marsa Matrouh STP (60,000 m³/day, EA process), Busilia El Sebia STP (27,000 m³/day, MBBR), Al Kalah Sharq STP (6,000 m³/day, MBBR), the Itssa 800 mm water supply pipeline, Al Balmoon STP (10,000 m³/day, MBBR), sanitary drainage projects at Al Monofia–Ashmoon, Al Gharabia–Al Salween, Al Behira–Kafr Al Dafwary, Aswan–Edfu and Al Mahala, and Siwa STP (10,000 m³/day, oxidation pond).
P.039
Site visit with the project team at one of the treatment works.
Avifaunal baselines, marine habitat mapping and bathymetric survey delivered with Green Plus and EnviGlobe.
P.134

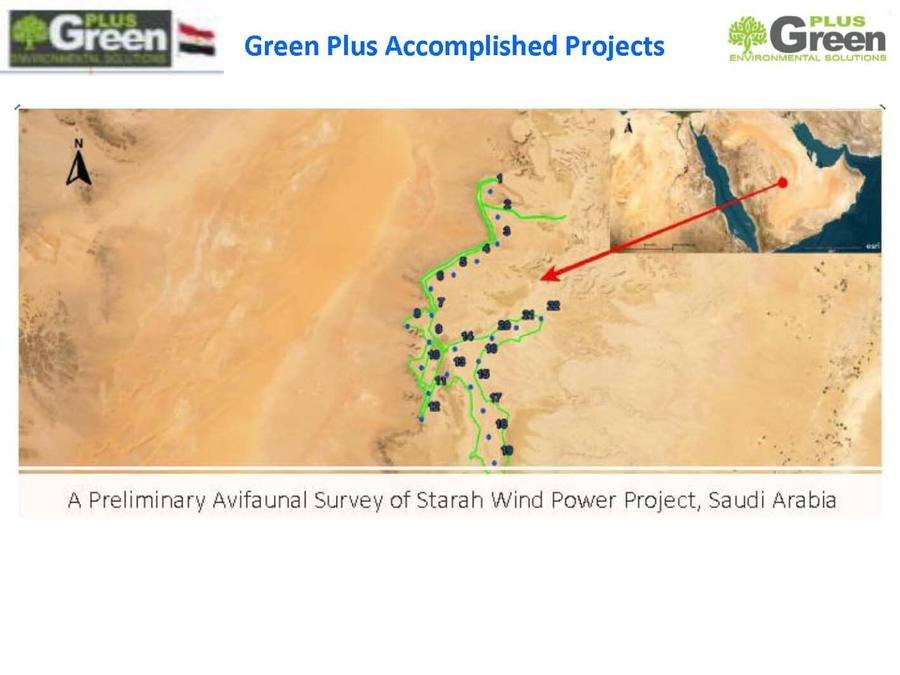

A preliminary avifaunal survey along the survey corridor for the Starah wind power project.
P.135
Bird baseline monitoring running from February 2022 onward.
P.136
Survey coverage across the NEOM development areas: The Line, Midyan, Al Sourah, Aqaba Wind Park, Bajdah, Ebiriq, Gap, Haql and Ras Alsheikh Khamid.
P.137
Vantage point surveys deployed 35 surveyors, uploading more than 5,500 surveys over more than 12,000 survey hours. Flight activity recorded more than 120 target species, more than 40,000 flights and more than 80,000 individual birds.
P.138
Marine environment and body-of-water characteristics survey for Cruise Saudi, delivered with EnviGlobe and Green Plus.
P.139

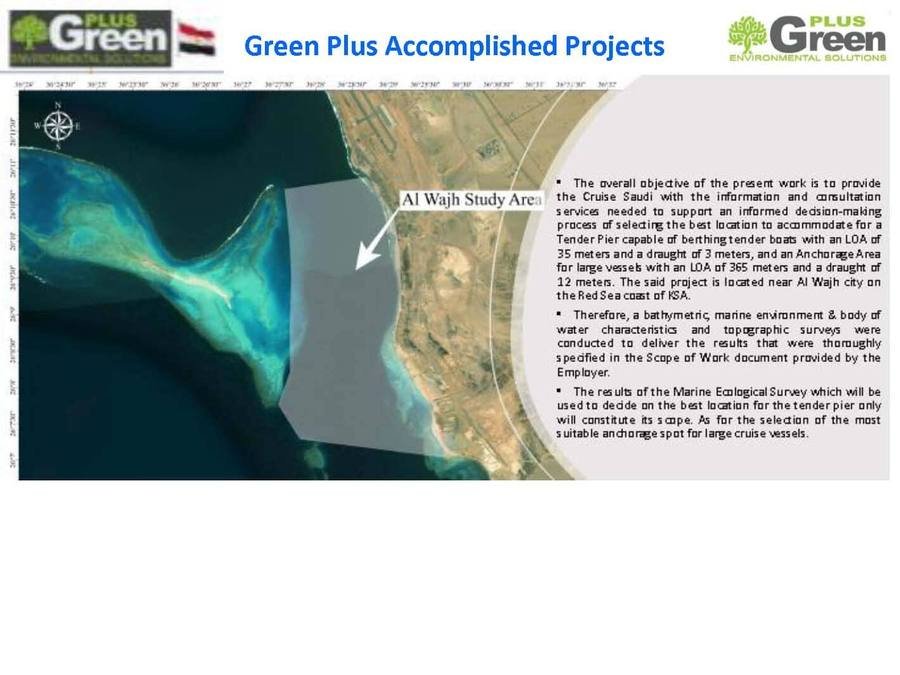

The work provided Cruise Saudi with the information and consultation needed to support selecting the best location for a tender pier able to berth tender boats of 35 m length overall and 3 m draught, and an anchorage area for large vessels of 365 m length overall and 12 m draught, near Al Wajh city on the Red Sea coast. Bathymetric, marine environment, body-of-water characteristics and topographic surveys were conducted to deliver results specified in the employer's scope of work, with the marine ecological survey used to decide the best location for the tender pier and the most suitable anchorage spot.
P.140

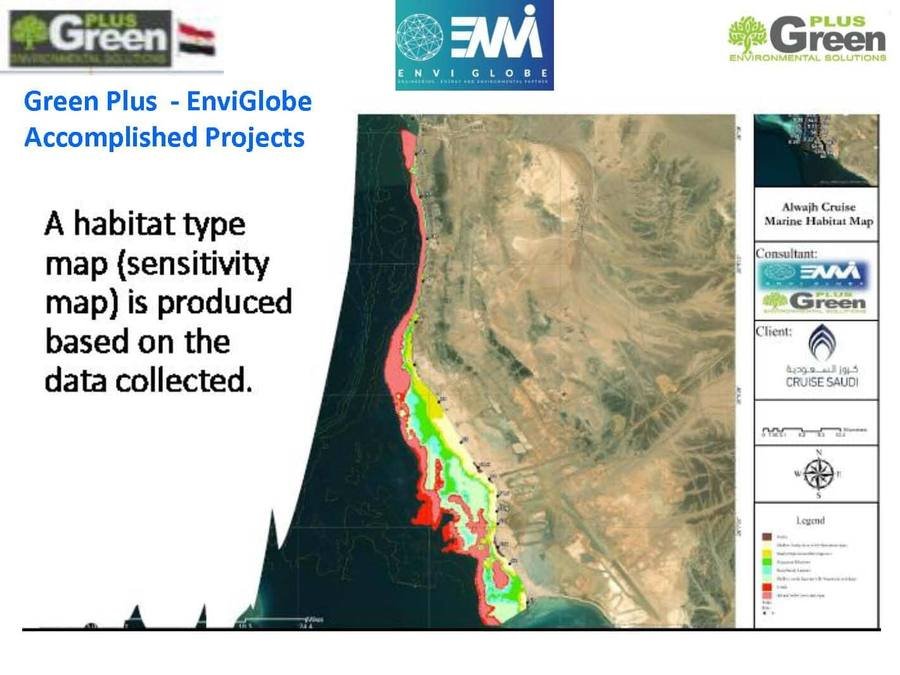

A habitat type (sensitivity) map produced from the collected data, prepared by EnviGlobe and Green Plus for Cruise Saudi.
P.141

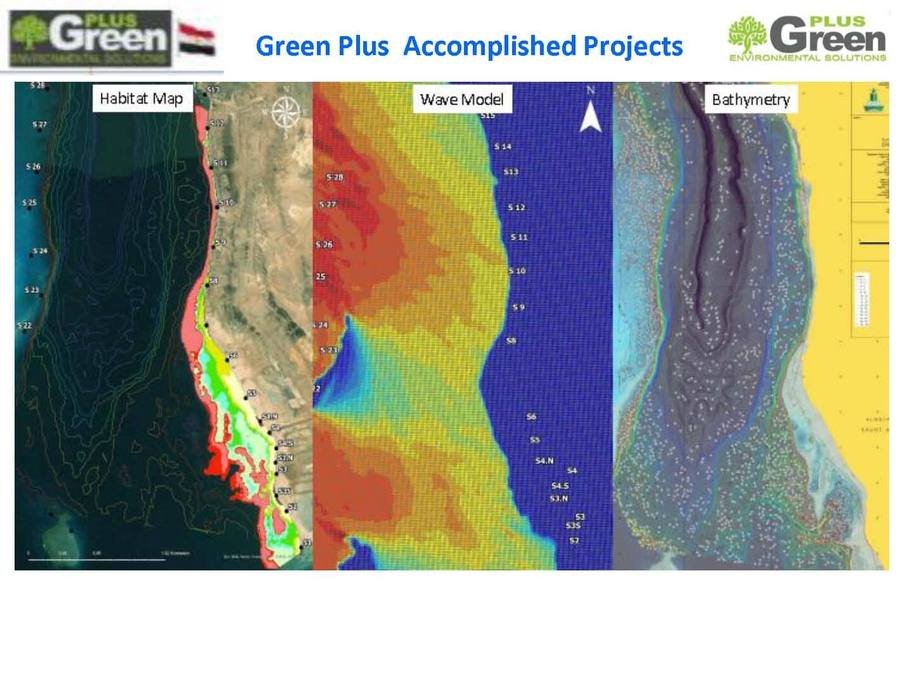

The three survey products side by side: marine habitat map, wave model and bathymetry along the coastal study area.
P.142
The Spring Breeding Bird 2023 survey was designed to identify the distribution and abundance of bird species within the reserve during spring, informing environmental and conservation priorities for its management.
P.143
The Royal Reserve Development Authority launched the first phase of preliminary bird surveys to assess the number, species, distribution and abundance of resident, migratory and visiting birds and to identify them; to establish migration pathways; and to protect them through ongoing monitoring and follow-up programmes, updating the database and developing the reserve's bird surveillance tourism programmes.
P.144

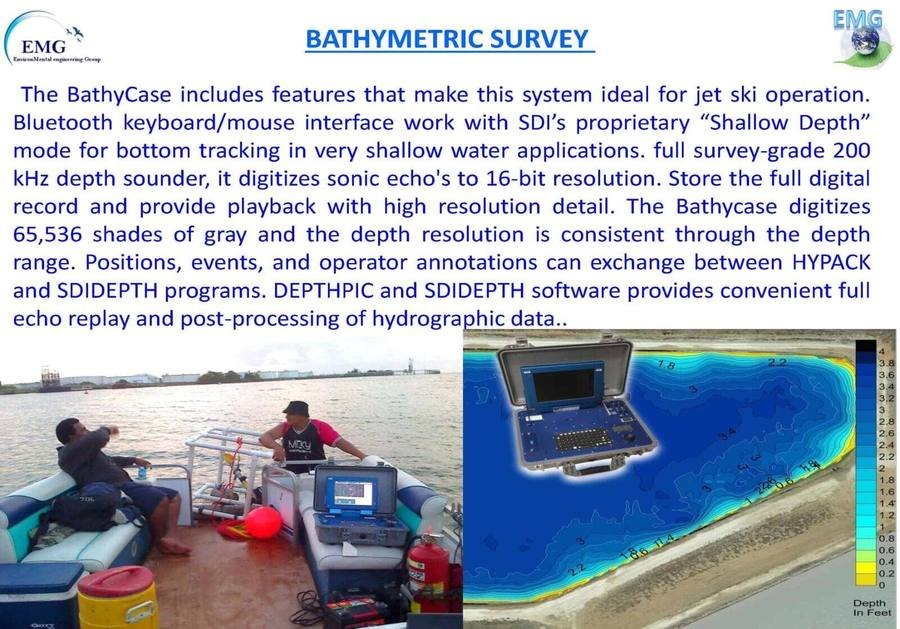

The BathyCase system used for jet-ski operation: a Bluetooth keyboard and mouse interface with SDI's shallow-depth bottom tracking mode for very shallow water, a survey-grade 200 kHz depth sounder digitising sonic echoes at 16-bit resolution across 65,536 shades of grey with depth resolution consistent through the range, storing the full digital record for high-resolution playback. Positions, events and operator annotations exchange between HYPACK and SDIDEPTH, with DEPTHPIC and SDIDEPTH providing full echo replay and post-processing of hydrographic data.
How the studies are actually run: nodes, deviations, severity definitions and the worksheets behind a HAZOP deliverable.
P.005
The study environment used for the work: secondary keywords, frequency and severity codes, hazard category codes and a colour-coded risk matrix.
P.006

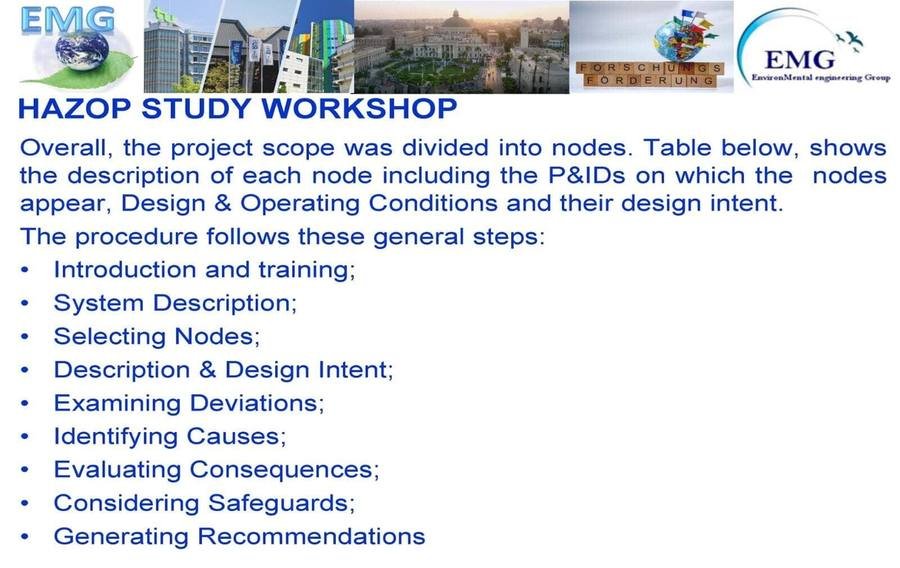

The project scope is divided into nodes, each described with the P&IDs on which it appears, its design and operating conditions and its design intent. The procedure runs: introduction and training; system description; selecting nodes; description and design intent; examining deviations; identifying causes; evaluating consequences; considering safeguards; generating recommendations.
P.007
The severity framework applied across safety, environment and operations — graded from worst case through severe, major and moderate to minor, with explicit criteria for permit violations, clean-up exposure and process flow impact.
P.008

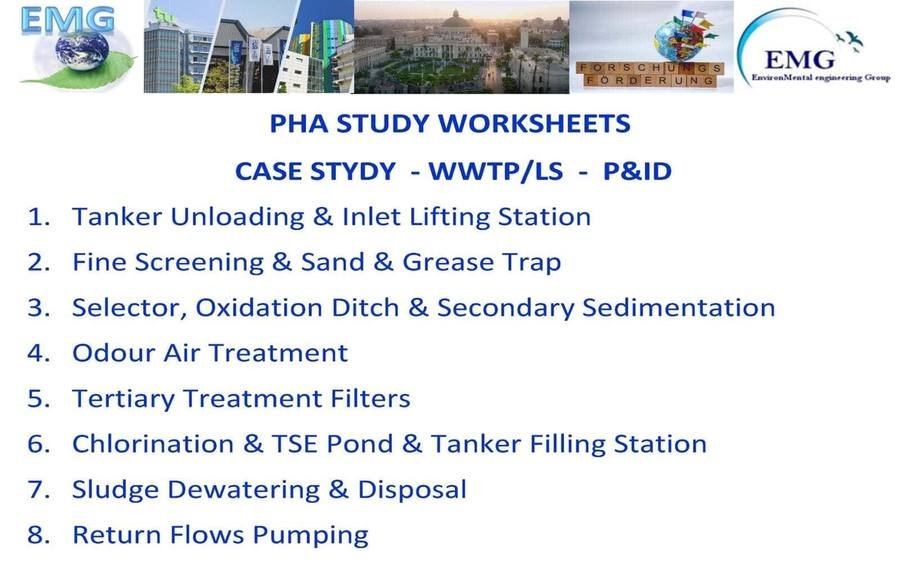

Case study P&ID broken into eight sections: tanker unloading and inlet lifting station; fine screening, sand and grease trap; selector, oxidation ditch and secondary sedimentation; odour air treatment; tertiary treatment filters; chlorination, TSE pond and tanker filling station; sludge dewatering and disposal; and return flows pumping.
P.009

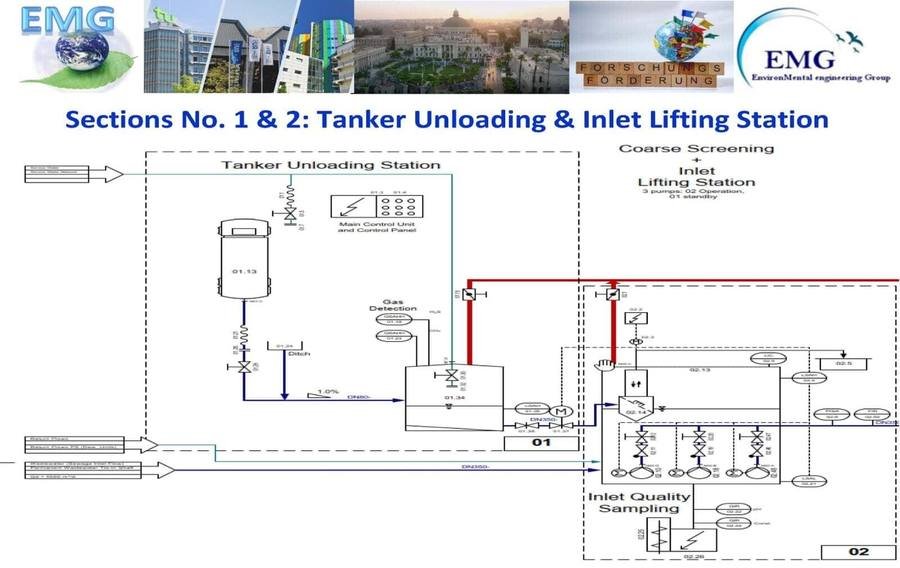

Piping and instrumentation diagram covering coarse screening, the inlet lifting station (three pumps, one standby), gas detection and inlet quality sampling.
P.010
Twelve study nodes with their deviations and causes — from peak flow off the sanitary sewer and additional tanker discharge through pump trips, piping and joint rupture, phase sequence reversal and ventilation system failure.
Courses, diplomas and open workshops delivered for utilities, contractors and academies from 1995 onwards.
P.164
School Hygiene at WHO Egypt (1995); On-Site Sanitation at WHO Egypt (1996); Wastewater Pumping Station Hydraulics at FEGAWS Egypt (1997); Use of Unconventional Water in Urban Water Management, Muscat (2004); Anaerobic Digester Biogas Generation at Salalah Wastewater Co., Oman (2014); Industrial Wastewater Reuse & Recycle at IPQC Abu Dhabi (2015); Monitoring Performance of Industrial Wastewater Treatment Facilities, MRMWR Muscat (2015); BioWin Simulation for Wastewater Treatment Plant at Haya Water, Muscat (2015); Industrial Wastewater Treatment, Challenges and Re-use, Sohar (2015); and Biological Wastewater Treatment Systems Applications at Metito, Cairo (2019).
P.165
Dynamic Simulation for ICEAS Process System, AquaEnergyExpo Riyadh (2020); Physical Losses for NRW, AquaEnergyExpo Riyadh (2021); Design of MBBR Wastewater Treatment System, Riyadh (2021); Water Pollution Control, National Water Company Riyadh (2022); Green, Blue, Water Infrastructures, OIMTEC Riyadh (2022); HAZOP for Process Treatment Systems, SWCC Riyadh (2022); Desalination Plants Water Pollution Control, SWCC (2022); Physical Modelling for Complex Hydraulic Structures, AquaEnergyExpo Riyadh (2023); and Pretreatment Stages, RO Treatment Process and Post Treatment Process for Brackish & Sea Water at the Saudi Water Academy, Al Jubail (2024).
P.166
Level one of the applied diploma — planning, design and operation — covering urban water infrastructure planning and design: planning and study of infrastructure for urban cities; green, blue and grey infrastructure; water resources and water use; population forecast and water demands; design of water supply systems; types of pipes and valves; design of transmission lines; design of pumping stations; design of surface water purification plants; and water quality standards and management. Delivered with the Water Technology Experts Academy in June and July 2021.
P.167
Free online workshops on dynamic simulation and BioWin process modelling for biological treatment, using the ICEAS 120,000 CMD case study, and on MBBR process design systems, delivered live to participants across the Arab world.
P.168
Workshops on the fundamentals of designing and modelling biological treatment systems using IFAS and MBBR, and on dynamic simulation and process modelling for wastewater treatment plants, run with Soul Water and the Water Technology Experts Academy.
P.169
Free online webinar on physical modelling for complex hydraulic structures — what physical modelling is, physical model versus computational fluid dynamics, and how to perform it. Alongside a Hazards & Operability Study webinar covering objective, methodology, ground rules, risk ranking, study team, resources, recording software, the study workshop and risk-based recommendations; and a workshop at OMAINTEC, the 20th International Operations & Maintenance Conference in the Arab Countries, on BGI as an integrated approach for climate change adaptation in Saudi Arabia.
P.170
Webinar on the Hazards & Operability Study, and a National Water Company knowledge-hour session on the fundamentals of water pollution treatment, December 2021.
P.171
Open online webinar covering the basics of reverse osmosis, factors affecting reverse osmosis and nanofiltration performance, RO plant performance calculations, membrane fouling, RO plant system performance assessment, and RO data trending and normalisation — alongside a session on Saudi Arabia as the world leader in the desalination industry.
P.172
Open online webinar covering global water resources, saltwater composition, major and minor desalination systems, green desalination, green and renewable hydrogen and desalination ability, desalination process innovations, R&D in desalination by WTIIRA, and desalination industry vendors.
P.187
Attendance certificate from the General Authority for Sanitary Drainage and the Japan International Cooperation Agency for the course for wastewater treatment plant designers held in Japan.
P.196
Metito Water Treatment certified that Dr. Ahmed Salah Eldien Ibrahim El Zayat conducted a 30-hour training course for its design and proposals engineers in biological wastewater treatment systems and applications, 9 August to 2 September 2020. Scope covered biological nutrient removal literature; simultaneous nitrification and denitrification models; the activated sludge process model; extended aeration and orbal systems; the biofilm concept and competition in biofilms; crucial factors for dimensioning MBBR/IFAS including carrier media filling rate versus pollutant loads, temperature and removal efficiency; empirical equations for biofilm carbonaceous uptake and nitrification; design optimisation and troubleshooting of a full-scale MBBR plant; media types and applications; obstacles and mistakes hard to remedy; problems arising with inexperienced plant construction companies and plastic manufacturers; the complete-mix MBBR design model; a case study; and a reference list in Egypt.
P.197
Certificate of thanks and appreciation from the National Water Company recognising outstanding effort in transferring knowledge to company staff through the Knowledge Hour initiative, on the fundamentals of water pollution treatment, 7 December 2021.
Undergraduate teaching and graduation project supervision in Egypt.
P.040
Teaching infrastructure planning to the Architectural Department, Faculty of Engineering.
P.041
Fourth-year civil sanitary engineering teaching and graduation project supervision, Faculty of Engineering, Civil Department.
P.042
Laboratory demonstration with fourth-year civil students as part of the sanitary engineering course.
Invited lectures, accepted papers and conference contributions across the region and in Europe.
P.178
Conference speaker badge for Water Middle East 2004, Bahrain International Exhibition Centre, 13–15 September 2004.
P.179
Certificate recognising participation in the international seminar on Experiences and Practices of Water and Wastewater Technology, Muscat, 5–7 October 2004, awarded by the Regional Centre on Urban Water Management, Tehran — under the auspices of UNESCO — and the Ministry of Regional Municipalities, Environment and Water Resources.
P.180
The Directorate General of Water Resources Affairs invited participation in the international workshop on Public Participation, Awareness and Information Exchange for Water Resources Development and Management, held 26–28 September 2005 with the Iran Regional Center on Urban Water Management, Tehran.
P.181

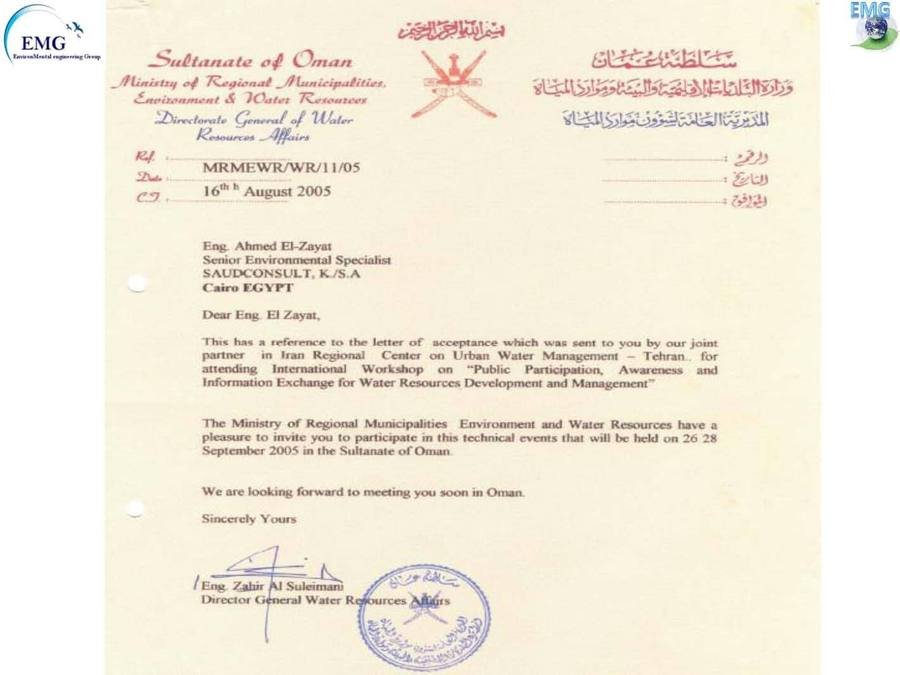

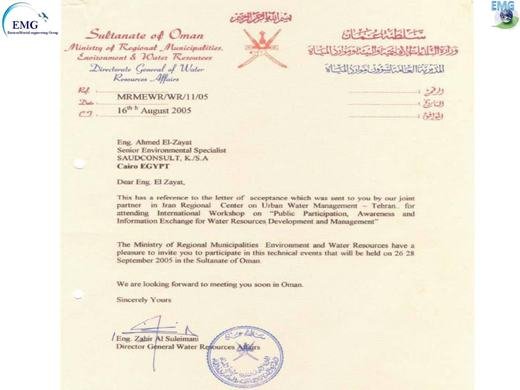

Letter from the Directorate General of Water Resources Affairs, Sultanate of Oman, dated 16 August 2005, inviting participation in the technical events of 26–28 September 2005.
P.182
Certificate recognising the outstanding paper presented at the international workshop on Public Participation, Awareness and Information Exchange in Water Resources Development and Management, Muscat, 26–28 September 2005.
P.183
Participation in the seventh joint meeting of the Saudi-Japan Business Council, Riyadh, 22 March 2006, convened with JCCME and the Council of Saudi Chambers.
P.184

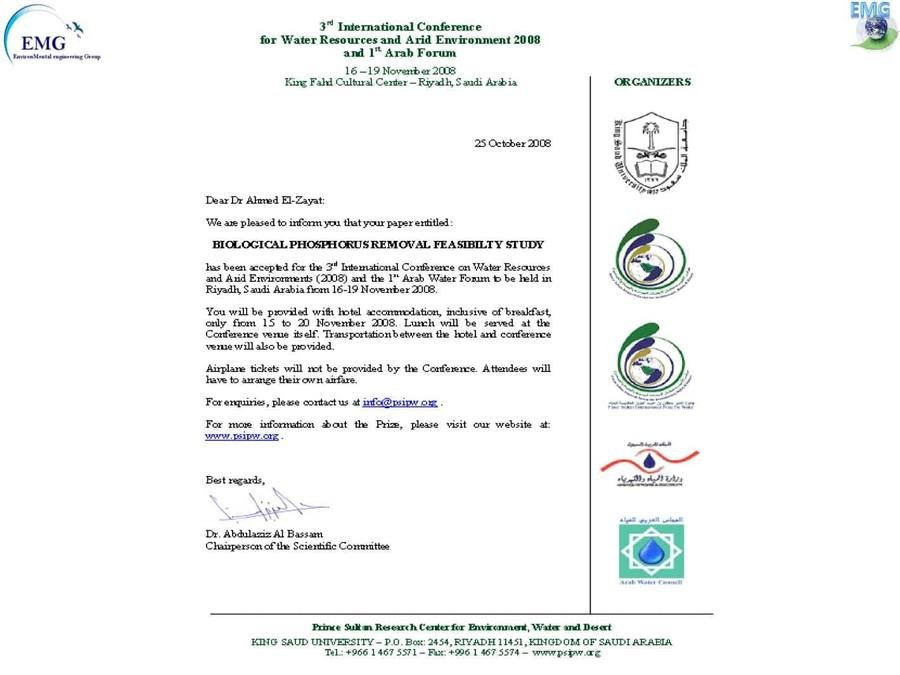

The Scientific Committee confirmed acceptance of the paper Biological Phosphorus Removal Feasibility Study for the 3rd International Conference on Water Resources and Arid Environments and the 1st Arab Water Forum, King Fahd Cultural Center, Riyadh, 16–19 November 2008.
P.185
The Organising Committee thanked Ahmed AlZayat of Environmental Engineering Group, Egypt, for providing valuable scientific input and contributing to the success of the conference and forum, 19 November 2008.
P.186
Certificate recognising the outstanding paper presented at the international conference on Capacity Building in Urban Water Management under Water Scarcity Conditions, Muscat, 13–15 December 2009.
P.188

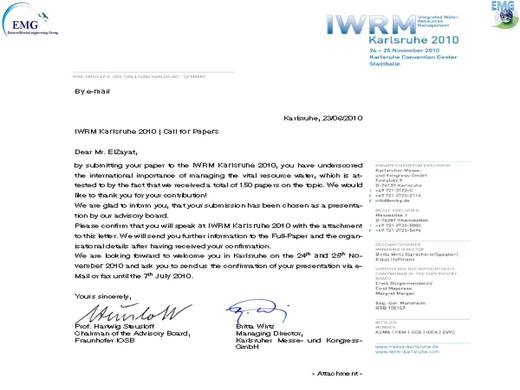

The organisers wrote that the submission had underscored the international importance of managing water, attested by 150 papers received on the topic, and that the paper had been chosen as a presentation by the advisory board — asking for confirmation to speak at Karlsruhe on 24 and 25 November 2010.
P.189
Certification that Dr. Ahmed El-Zayat attended IWRM — Integrated Water Resources Management, Karlsruhe, 24–25 November 2010, and gave a lecture titled Multi-criteria framework for performance benchmarking of the water sectors in the Nile Basin.
P.190
Speaker profile for Dr. Ing. Ahmed Salah ElDien ElZayat, environmental sanitation and water resources expert, Environmental Engineering Group (EMG), Egypt–Fayoum. Specialisation: water and wastewater treatment systems, water resources and irrigation. Education: B.Sc. Civil Engineering, Cairo University, Giza, 1987; Environmental & Sanitary Engineering Diploma of Higher Studies, Cairo University; Master of Science, Cairo University — Comparative study on activated sludge biological treatment systems in some Arab cities; and Doctor of Philosophy, Cairo University with co-referee Ruhr University, Bochum, Germany — Development of dynamic simulation and modelling for Bio-P removal.
P.191
The Organising Committee of the 4th International Conference on Water Resources and Arid Environments, 6–8 December 2010, thanked the contribution of valuable scientific input to the conference.
P.192
Acknowledgement of an informative presentation at the international seminar on Use of Unconventional Water in Urban Water Management, Muscat, 24–26 February 2014, convened by the Regional Centre on Urban Water Management, Tehran, under the auspices of UNESCO, with the Ministry of Regional Municipalities and Water Resources of Oman.
P.193
The Euro-Arab Organization for Environment, Water and Desert Researches certified participation by Dr. Ahmed ElZayat of EMG Egypt in its sixth international conference, Our Environment: Our Present and the Future of Our Generations, Istanbul, 27–30 October 2014, with a paper on the Nile Basin countries water strategy concession.
P.194
Thanks and appreciation from the Oman Water Society for participation in the symposium on industrial wastewater and the challenges of treatment and reuse, held 1–2 December 2014 in Sohar, with Orpic, AZD and industrial partners.
P.195
Certificate of participation from the 7th International Conference on Water Resources and Arid Environments, 4–6 December 2016, King Saud University, Riyadh, thanking Dr. Ahmed Salaheldin Ibrahim Mohamed for a valuable scientific contribution.
Memberships held with international engineering and water bodies.
P.173
By action of the Board of Direction, Ahmed Salah El-Din El-Zayat was elected Member of the American Society of Civil Engineers, June 2002.
P.174
Membership card of the Deutsche Vereinigung für Wasserwirtschaft, Abwasser und Abfall (ATV-DVWK), member number 5036, 2002.
P.175
ASCE membership card, grade Member, Saudi Arabia Section, member number 393064.
P.176
Certification of membership in good standing of the Environmental & Water Resources Institute of the American Society of Civil Engineers, Reston, Virginia.
P.177
AWWA membership, international active, international members section, member number 00535688.
